Laboratory Graphite Electric Hot Plate

Laboratory Graphite Electric Hot Plate

Decent Graphite Electric Heating Plate is a product developed and designed to meet the experimental treatment of heating digestion, boiling, and acid distilling in small and medium laboratories and chemical production. The heating plate surface design of 400×300mm saves energy and can meet the processing needs of batch samples in laboratories and chemical production.

Product Details

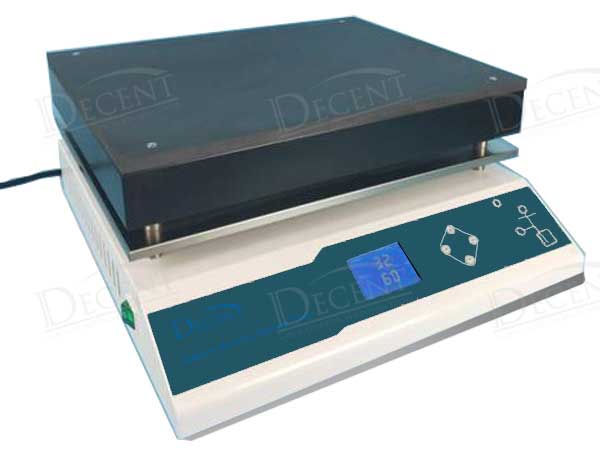

Graphite electric hot plate for laboratory with surface 400×300mm

Qingdao Decent Group Laboratory Graphite Electric Hot Plate is a product developed and designed to meet the experimental treatment of heating digestion, boiling, and acid distilling in small and medium laboratories and chemical production. The graphite plate surface design of 400×300mm saves energy and can meet the processing needs of batch samples in laboratories and chemical production.

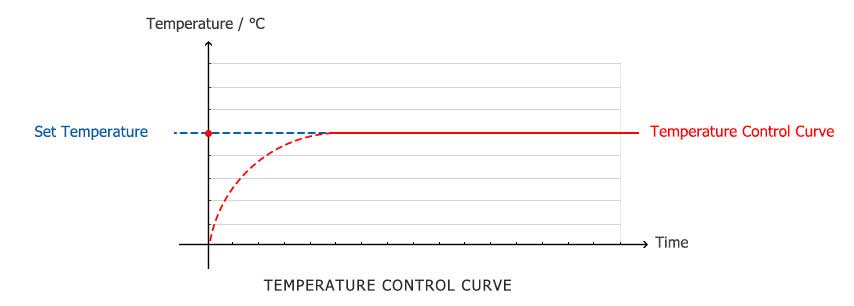

PID is an accurate and dynamic adjustment technology through three parameters of proportional, integral, and derivative. It is an intelligent control system. The mid-to-high-end models of Decent micro-control digital display heating plates all adopt PID temperature control system, which makes temperature control more accurate and safer to operate.

PID control tempreture

[ UNIQUE ADVANTAGES ]

Digital display, intelligent micro-processing chip control, to achieve accurate temperature control.
Stainless steel/Teflon/graphite/high temperature resistant and anticorrosive coating multiple anticorrosive heating plate surfaces to meet the requirements of different experiments.
Anti-corrosion heating platform, anti-corrosion treatment of all electronic components, bring longer service life.
Strong and durable, stable operation.

[ TECHNICAL PARAMETERS ]

Model DHP20A DHP20B DHP20D DHP35A DHP35B DHP45A DHP45B DHP45C
Heating Surface PTFE coating PTFE coating PTFE coating Stainless Steel Stainless Steel Graphite Coating Graphite Coating Graphite Coating
Temperature Range 10-200°C 10-200°C 10-200°C 10-350°C 10-350°C 10-450°C 10-450°C 10-450°C
Temp. Control Mode Switch LCD LED Switch LCD Switch LCD LCD
Heating Power 2000W 2000W 2000W 2000W 2000W 2800W 2800W 2800W
Temp. Accuracy ±5.0°C ±1.0°C ±0.2°C ±5.0°C ±2.0°C ±5.0°C ±2.0°C ±2.0°C
L x W x H 400mmX300mmX142mm 370x270x190mm 360mmx350mmx156mm
Weight 18kgs 18kgs 18kgs 18kgs 18kgs 20kgs 20kgs 20kgs
Power Supply 230V 50/60HZ 230V 50/60HZ 230V 50/60HZ 230V 50/60HZ 230V 50/60HZ 230V 50/60HZ 230V 50/60HZ 230V 50/60HZ
