Key Advantages

  • Fast and efficient pre-crushing.
  • Suitable for medium-hard, hard, and brittle materials.
  • Essential first step in sample preparation.
  • Sturdy and durable single-toggle design.
  • Available in 18 different sizes.
  • Output size adjustable via handwheel.
  • Processes up to 85% of sample to desired fineness.
  • Suitable for large-batch or continuous operation.

Lab Jaw Crusher

The DECENT Lab Jaw Crusher stands as a pivotal piece of equipment for any laboratory requiring precise and efficient sample preparation. Engineered for the fast and effective pre-crushing of a wide range of materials, including medium-hard, hard, and brittle substances, this robust machine serves as the essential initial step in the analytical sample preparation process. Achieving optimal sample particle size is critical for downstream analysis, and the DECENT laboratory jaw crusher excels in delivering consistent results.

As a leading solution from DECENT Group, globally renowned for its high-performance analytical and mining equipment, our lab jaw crusher is designed for durability and ease of use. It is an indispensable tool for research institutions, mining laboratories, and quality control facilities aiming to streamline their sample workflow and ensure the integrity of their analytical data.



The DECENT Lab Jaw Crusher combines unmatched versatility with a design focused on minimal operational overhead. This single-toggle model is a testament to sturdy and durable engineering, providing reliable performance even in continuous, large-batch laboratory operations. A key advantage is its ability to precisely control the output size through a simple handwheel adjustment, enabling the processing of up to 85% of the sample to the desired fineness.

Available in an impressive 18 different sizes, the DECENT laboratory jaw crusher can be tailored to meet diverse output requirements and specific material characteristics, ensuring optimal efficiency for every application. Its simple structural design translates directly into low maintenance costs and makes it remarkably safe and easy to operate. Investing in a DECENT lab jaw crusher means investing in a cost-effective, high-performance solution that enhances your laboratory’s throughput and the accuracy of your analytical results.

Equipment Construction

  • Crusher frame uses solid steel and cast-iron structure.
  • High-quality pulleys ensure durability.
  • Includes robust feed hoppers.
  • Equipped with essential safety guards.
  • Removable and modular feed hopper.
  • Feed hopper features splash protection.
  • Simple structural design for easy maintenance.
  • Built for safe and easy operation.

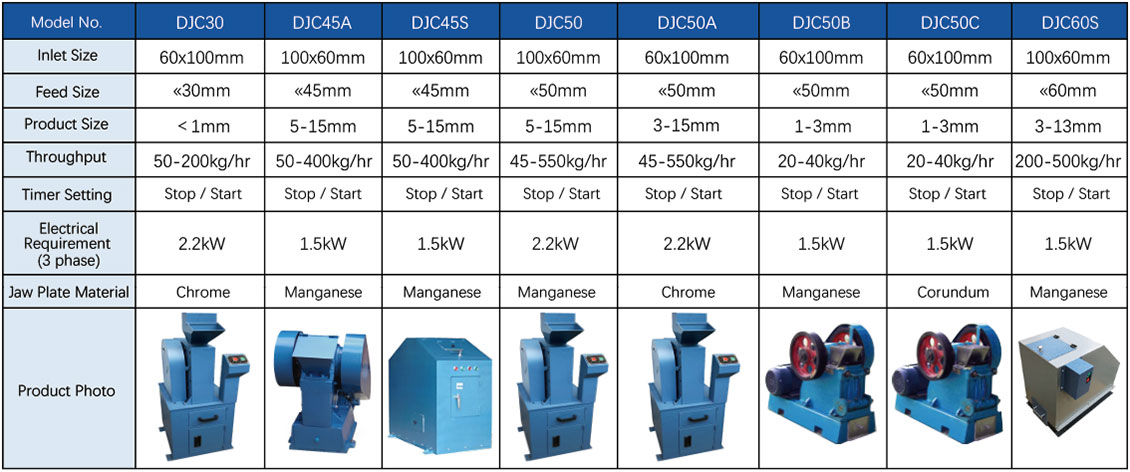

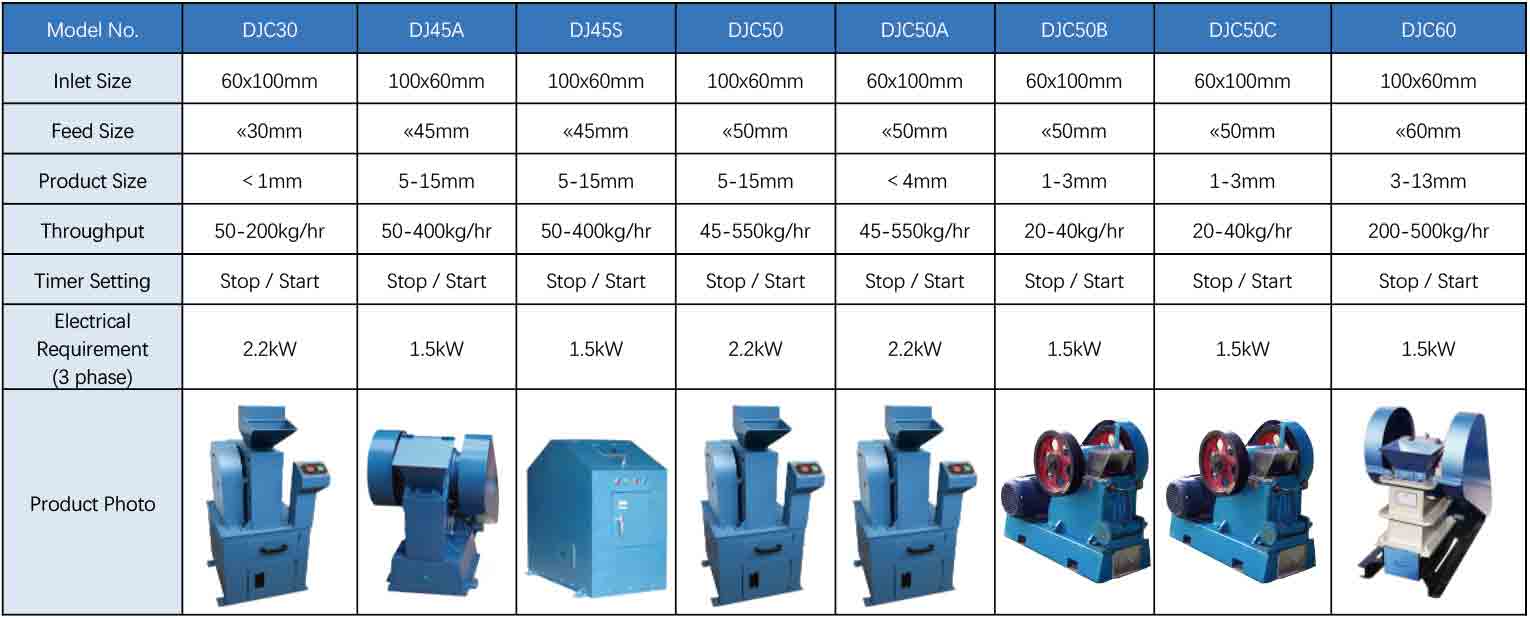

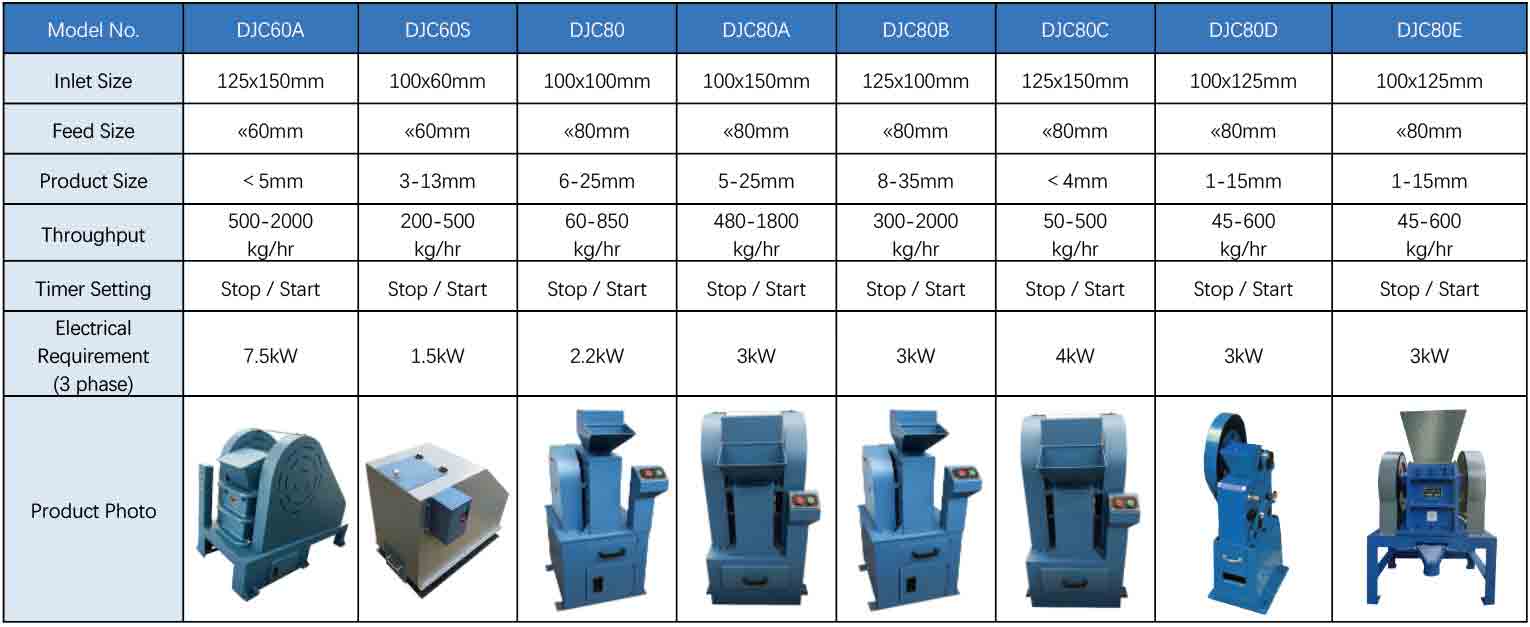

Technical Parameters

Model No.DJC30DJC45ADJC45SDJC50DJC50ADJC50BDJC50CDJC60SDJC80
Inlet Size60x100mm100x60mm100x60mm100x60mm60x100mm60x100mm60x100mm100x60mm100x100mm
Feed Size≤30mm≤45mm≤45mm≤50mm≤50mm≤50mm≤50mm≤60mm≤80mm
Product Size<1mm5-15mm5-15mm5-15mm3-15mm1-3mm1-3mm3-13mm6-25mm
Throughput50-200kg/h50-400kg/h50-400kg/h45-550kg/h45-550kg/h20-40kg/h20-40kg/h200-500kg/h60-850kg/h
Timer SettingStop / StartStop / StartStop / StartStop / StartStop / StartStop / StartStop / StartStop / StartStop / Start
Electrical Requiryment (3 phase)2.2kW1.5kW1.5kW2.2kW2.2kW1.5kW1.5kW1.5kW2.2kW
Jaw Plate MaterialChromeManganeseManganeseManganeseChromeManganeseCorundumManganeseManganese

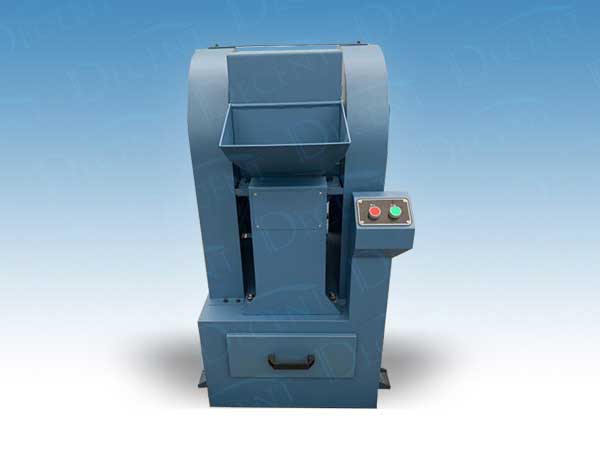

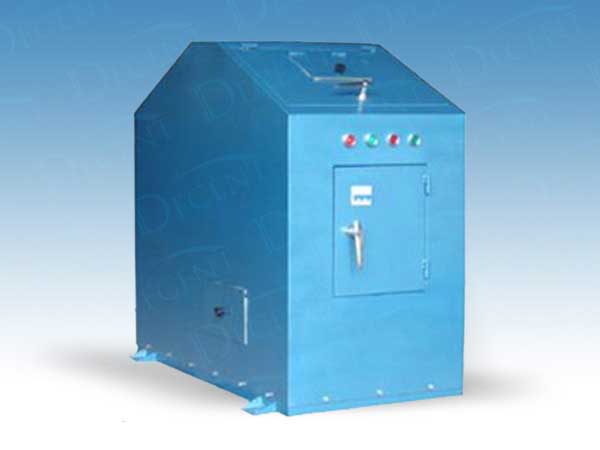

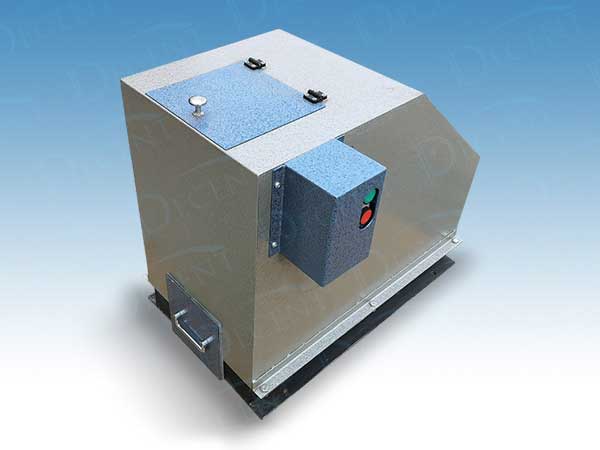

Product PhotoDECENT Lab Jaw Crusher DJC30, DJC50, DJC50A, DJC80 and DJC80B for efficient mineral sample pre-crushing in laboratoriesDECENT Lab Jaw Crusher DJC45A with manganese jaw plates for heavy-duty laboratory sample preparation DECENT Lab Jaw Crusher DJC45S with integrated safety enclosure for dust-controlled mineral sample preparationDECENT Lab Jaw Crusher DJC30, DJC50, DJC50A, DJC80 and DJC80B for efficient mineral sample pre-crushing in laboratoriesDECENT Lab Jaw Crusher DJC30, DJC50, DJC50A, DJC80 and DJC80B for efficient mineral sample pre-crushing in laboratoriesDECENT Lab Jaw Crusher DJC50B and DJC50C with specialized manganese or corundum jaw plates for fine sample reductionDECENT Lab Jaw Crusher DJC50B and DJC50C with specialized manganese or corundum jaw plates for fine sample reductionDECENT Lab Jaw Crusher DJC60S, enclosed metallic lab equipment with indicator control buttons and top access coverDECENT Lab Jaw Crusher DJC30, DJC50, DJC50A, DJC80 and DJC80B for efficient mineral sample pre-crushing in laboratories

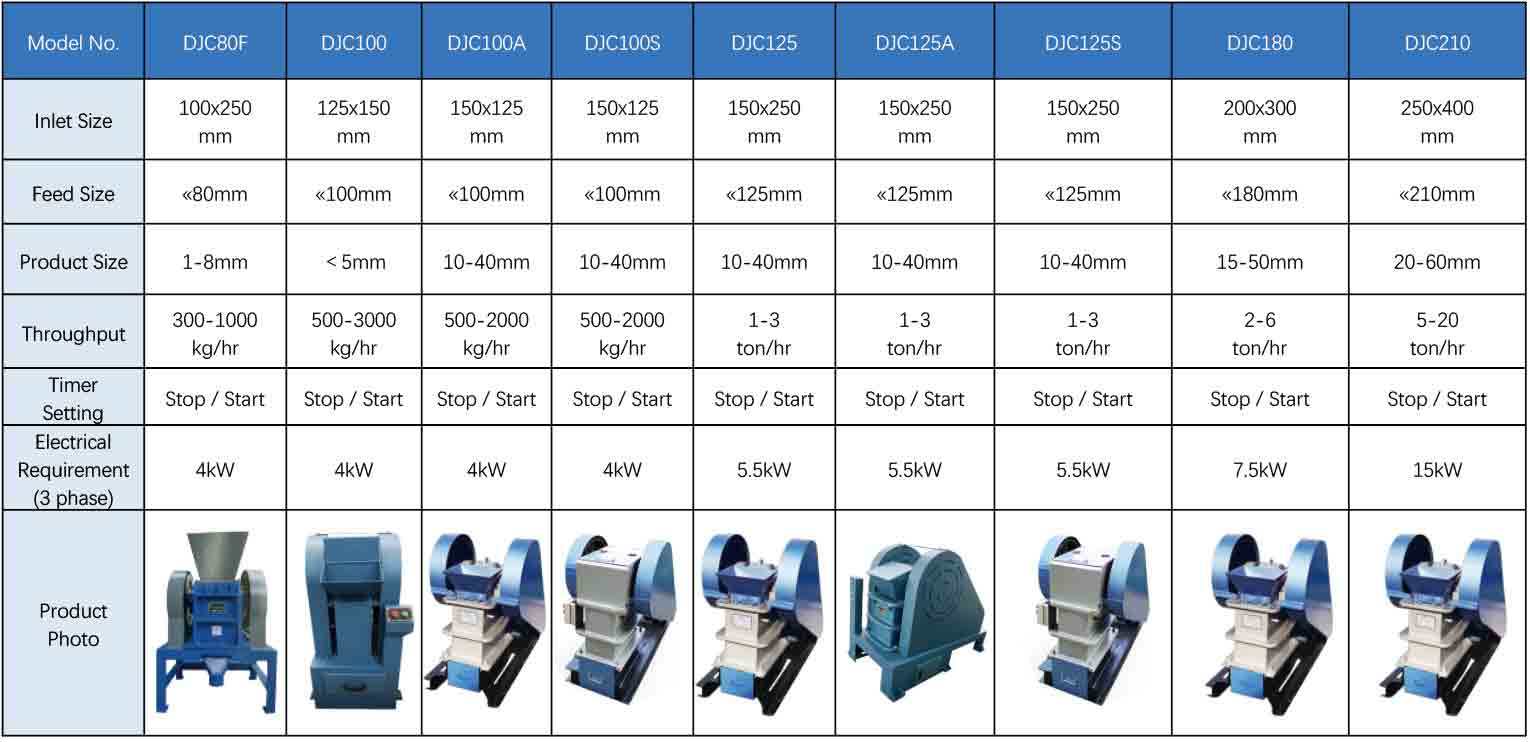

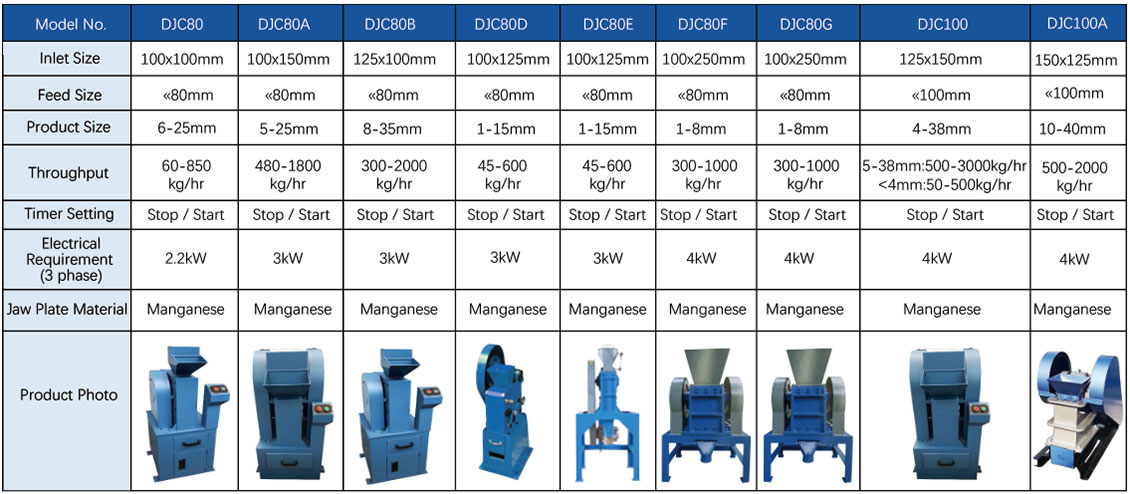

Model No.DJC80ADJC80BDJC80DDJC80EDJC80FDJC80GDJC100DJC100ADJC100B
Inlet Size100x150mm125x100mm100x125mm100x125mm100x250mm100x250mm125x150mm150x125mm125x150mm
Feed Size≤80mm≤80mm≤80mm≤80mm≤80mm≤80mm≤100mm≤100mm≤100mm
Product Size5-25mm8-35mm1-15mm1-15mm1-8mm1-8mm4-38mm10-40mm4-38mm
Throughput480-1800kg/h300-2000kg/h45-600kg/h45-600kg/h300-1000kg/h300-1000kg/h5-38mm: 500-3000kg/h

<4mm: 50-500kg/h

500-2000kg/h5-38mm: 500-3000kg/h

<4mm: 50-500kg/h

Timer SettingStop / StartStop / StartStop / StartStop / StartStop / StartStop / StartStop / StartStop / StartStop / Start
Electrical Requiryment (3 phase)3kW3kW3kW3kW4kW4kW4kW4kW4kW
Jaw Plate MaterialManganeseManganeseManganeseManganeseManganeseManganeseManganeseManganeseChrome

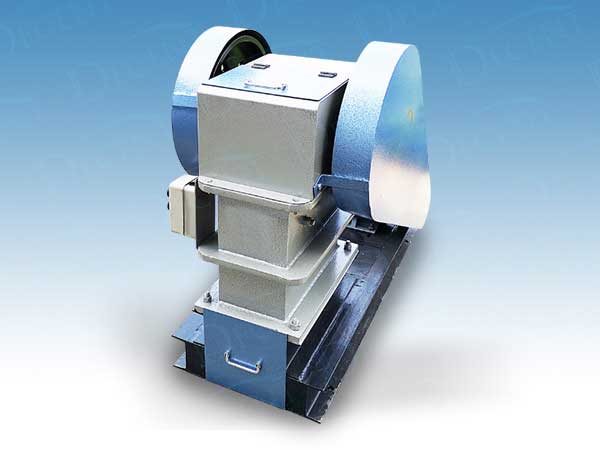

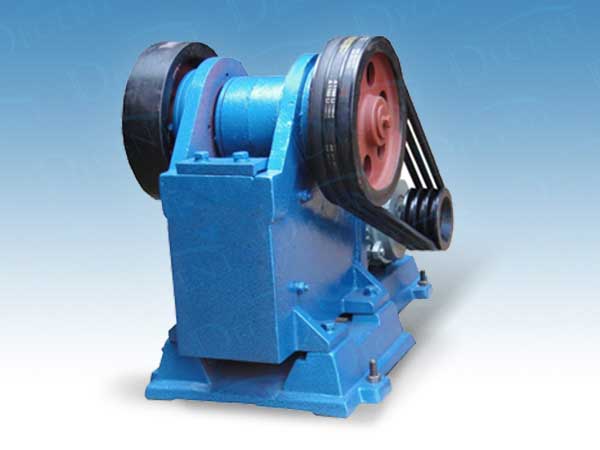

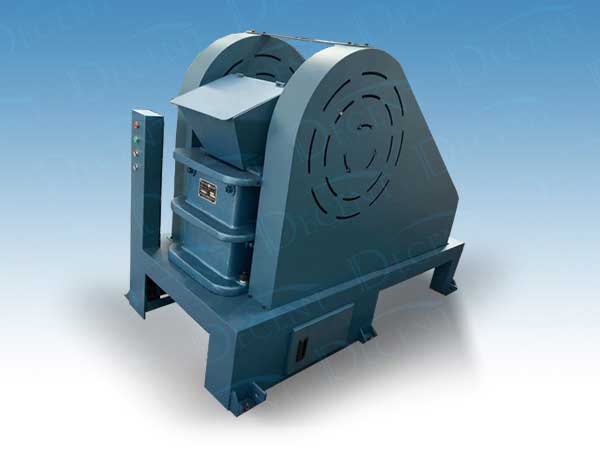

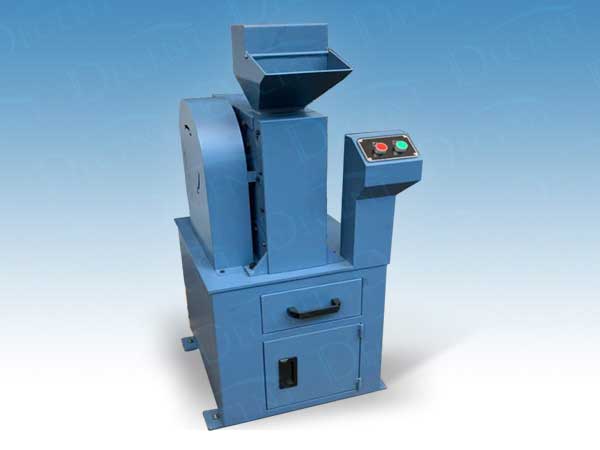

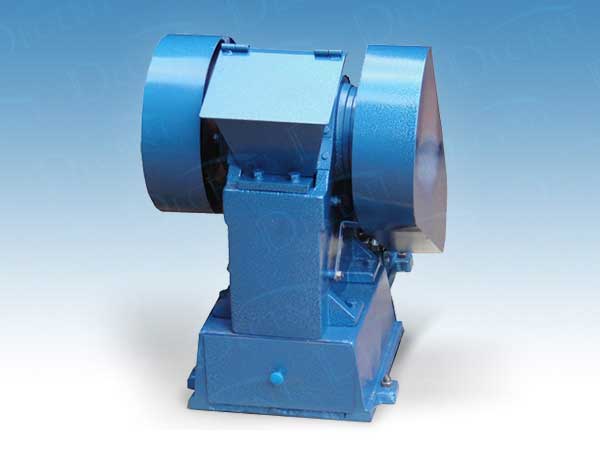

Product PhotoDECENT Lab Jaw Crusher DJC80A, DJC100, and DJC100B – heavy-duty sample crushing unit with automated control interface for laboratory useDECENT Lab Jaw Crusher DJC30, DJC50, DJC50A, DJC80 and DJC80B for efficient mineral sample pre-crushing in laboratoriesDECENT Lab Jaw Crusher DJC80D, blue industrial rock crushing machine featuring a large flywheel, side adjustment knobs, and top feed hopperDECENT Lab Jaw Crusher DJC80E vertical laboratory jaw crusher with top feed hopper, enclosed frame, side control box, and bottom discharge outletDECENT Lab Jaw Crusher DJC80F and DJC80G, blue twin-flywheel laboratory crusher with large feed hopper and bottom discharge spoutDECENT Lab Jaw Crusher DJC80F and DJC80G, blue twin-flywheel laboratory crusher with large feed hopper and bottom discharge spoutDECENT Lab Jaw Crusher DJC80A, DJC100, and DJC100B – heavy-duty sample crushing unit with automated control interface for laboratory useDECENT Lab Jaw Crusher DJC100A and DJC125, heavy-duty dual flywheel lab crushing unit with top feed hopper and under-machine collection drawerDECENT Lab Jaw Crusher DJC80A, DJC100, and DJC100B – heavy-duty sample crushing unit with automated control interface for laboratory use

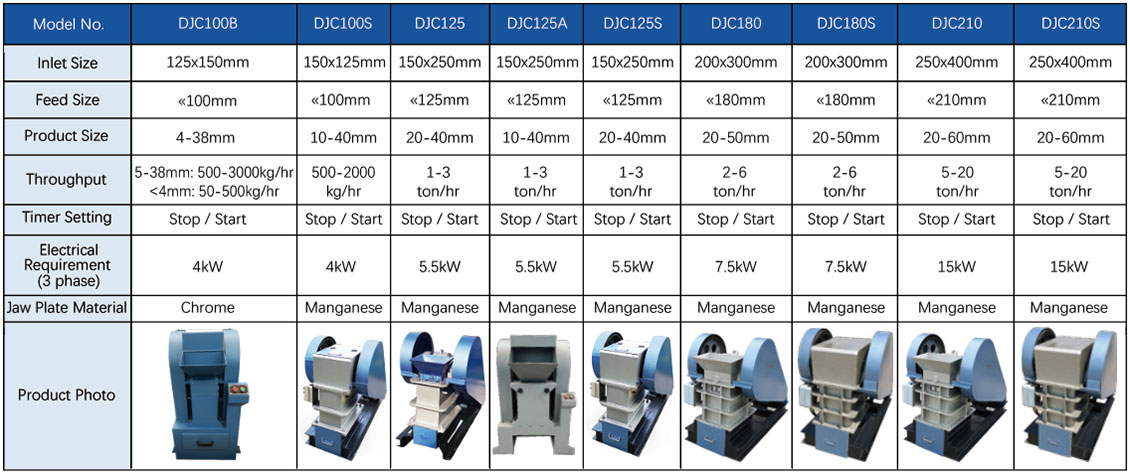

Model No.DJC100SDJC110DJC125DJC125ADJC125SDJC180DJC180SDJC210DJC210S
Inlet Size150x125mm240x138mm150x250mm100x60mm60x100mm60x100mm60x100mm100x60mm100x100mm
Feed Size≤100mm≤110mm≤125mm≤50mm≤50mm≤50mm≤50mm≤60mm≤80mm
Product Size10-40mm2-15mm20-40mm5-15mm3-15mm1-3mm1-3mm3-13mm6-25mm
Throughput500-2000kg/h45-900kg/h1-3 ton/h1-3 ton/h1-3 ton/h2-6 ton/h2-6 ton/h5-20 ton/h5-20 ton/h
Timer SettingStop / StartStop / StartStop / StartStop / StartStop / StartStop / StartStop / StartStop / StartStop / Start
Electrical Requiryment (3 phase)4kW7.5kW5.5kW5.5kW5.5kW7.5kW7.5kW15kW15kW
Jaw Plate MaterialChromeManganeseManganeseManganeseChromeManganeseCorundumManganeseManganese

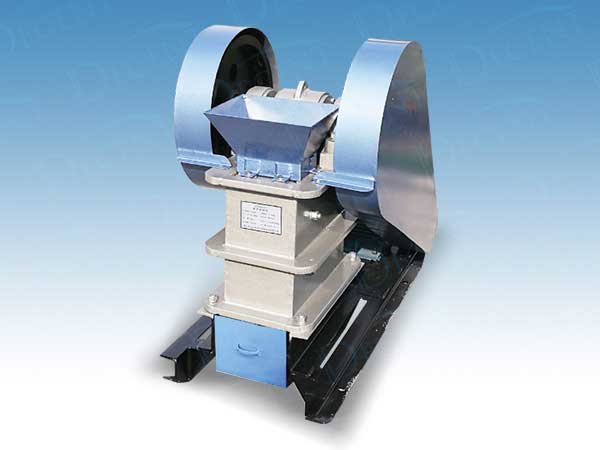

Product PhotoDECENT Lab Jaw Crusher DJC100S and DJC125S, fully enclosed dual flywheel lab crushing unit with under-machine sample collection drawer DECENT Lab Jaw Crusher DJC110, compact precision lab crushing unit with stainless steel guarding, front control station and adjustable leveling feetDECENT Lab Jaw Crusher DJC100A and DJC125, heavy-duty dual flywheel lab crushing unit with top feed hopper and under-machine collection drawerDECENT Lab Jaw Crusher DJC125A, grey heavy-duty lab jaw crusher with large top feed hopper, enclosed flywheel guards and side start/stop control panelDECENT Lab Jaw Crusher DJC100S and DJC125S, fully enclosed dual flywheel lab crushing unit with under-machine sample collection drawer DECENT Lab Jaw Crusher DJC180 and DJC210, dual flywheel heavy-duty lab crusher with top feed hopper and under-unit sample collection drawerDECENT Lab Jaw Crusher DJC180S and DJC210S, dual flywheel enclosed lab crushing unit with sealed top feed chamber and under-machine sample collection drawerDECENT Lab Jaw Crusher DJC180 and DJC210, dual flywheel heavy-duty lab crusher with top feed hopper and under-unit sample collection drawerDECENT Lab Jaw Crusher DJC180S and DJC210S, dual flywheel enclosed lab crushing unit with sealed top feed chamber and under-machine sample collection drawer
