Rotary Sample Divider

Qingdao Decent Group Rotary Sample Divider is for accurate division of bulk laboratory samples into equal representative samples. Sample representative is more than 99%. The samples are fed at a controlled rate as a falling stream that is divided in toequal segments by the action of a “circle” of segmental buckets being rotated beneath the stream.

Product Details

A splitter accurately divide bulk samples into equal representative

Qingdao Decent Group Rotary Sample Divider is for accurate division of bulk laboratory samples into equal representative samples. The sample representative is more than 99%. The samples are fed at a controlled rate as a falling stream that is divided into equal segments by the action of a “circle” of segmental buckets being rotated beneath the stream. The unit operates in accordance with internationally recognized sampling protocols.

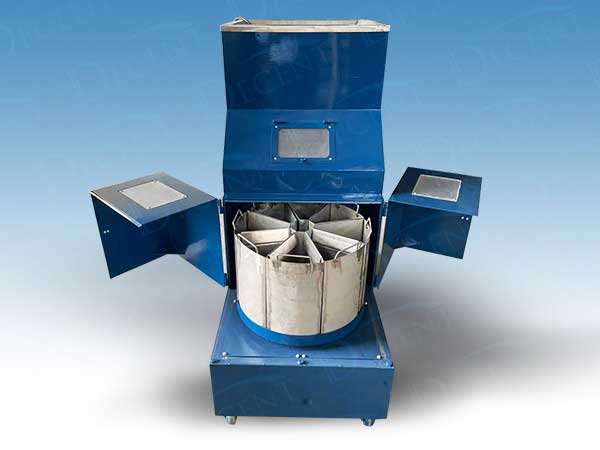

Qingdao Decent Group Rotary Sample Divider has a safety switch inside which prevents operation while lid is open. Eight bucket segments inside are for sample divisionand collection. Bucket are fitted with handles for easy removal. Turntable can be free wheeled by hand to bring each bucket to front of unit. All parts in direct contact with the sample are of SUS304 stainless steel construction. Control panel can set rotary frequency, rotary speed etc. The driving mechanism adopts gear motor and variable frequency speed control for accurate control of speed of segmental buckets. The machine is fully sealed inside and with dust inlet for mounting of dust extraction pipe.

[ PRODUCT VIDEO ]

Please watch the following videos or click here for watching how does a rotary sample divider working.

[ TECHNICAL PARAMETERS ]

Model

YX-RSD20

YX-RSD30

YX-RSD40

YX-RSD60

YX-RSD90

Voltage

220V/50Hz

220V/50Hz

220V/50Hz

220V/50Hz

220V/50Hz

Power

1.5kW

1.5kW

1.5kW

2.5kW

2.5kW

Bucket Volume

20L

30L

40L

60L

90L

Inlet hopper capacity

7L

12L

20L

25.5L

82L

Bucket Quantity

6/8/10

6/8/10

6/8/10

6/8/10

6/8/10

Dimension (mm)

800x410x900

920x460x1020

1155x555x1125

1160x600x1280

1680x830x1550
