Alumina Ceramic

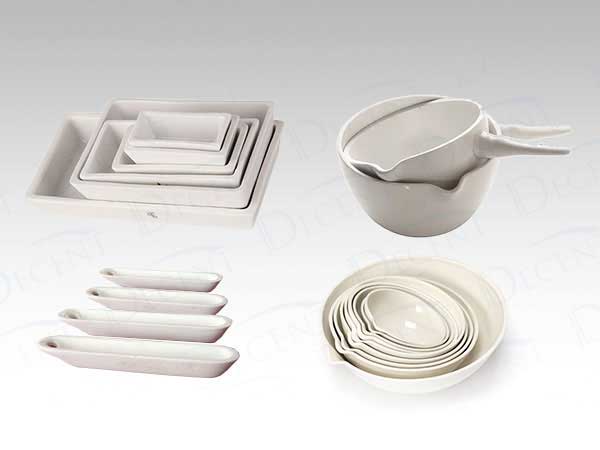

Alumina ceramic crucibles, usually, we call crucibles with more than 95% alumina content as corundum crucibles. Alumina ceramic crucibles and corundum ceramic crucibles include: arc alumina crucibles, square alumina crucibles, rectangular alumina ceramics crucibles, cylindrical ceramic crucibles, and various special-shaped alumina ceramics crucibles. We undertake all kinds of non-standard and special-shaped alumina corundum ceramic crucibles, please contact us! Corundum ceramic crucible series: suitable for various laboratory metal and non-metal sample analysis, and various industrial analysis.

Product Details

Alumina Ceramic Crucibles and Corundum Ceramic Crucibles

Alumina ceramic crucibles, usually, we call crucibles with more than 95% alumina content as corundum crucibles.

Alumina ceramic crucibles and corundum ceramic crucibles include: arc alumina crucibles, square alumina crucibles, rectangular alumina ceramics crucibles, cylindrical ceramic crucibles, and various special-shaped alumina ceramics crucibles. We undertake all kinds of non-standard and special-shaped alumina corundum ceramic crucibles, please contact us! Corundum ceramic crucible series: suitable for various laboratory metal and non-metal sample analysis, and various industrial analysis.

Characteristics of alumina/corundum porcelain crucible:

1. High purity: Al2O3>99%, good chemical resistance

2. Good temperature resistance, long-term use at 1600℃, short-term use at 1800℃

3. Good resistance to rapid cold and heat, not easy to burst

4. High density of grouting molding, high purity alumina crucible, 99% alumina content

5. Used for evaporation, concentration or crystallization of solutions, and also for burning solid substances

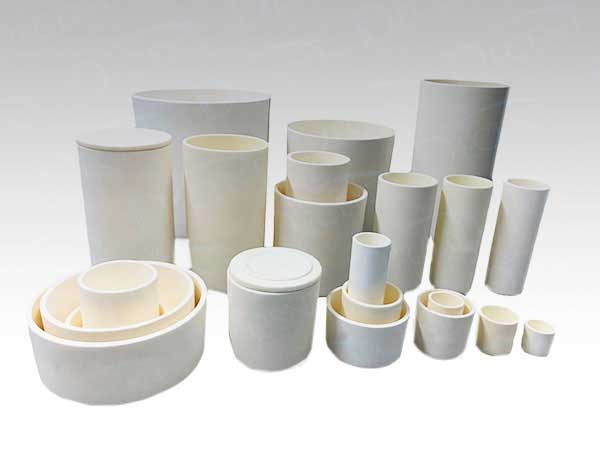

[ The Basic Process Of Alumina/Corundum Crucible ]
At present, our factory's alumina crucibles with a capacity of 50KG-1000KG are all made in the form of pouring. The main material of the corundum crucible is neutral refractory corundum mullite. The corundum crucible is usually used at a temperature of 1600 degrees.
1. Open the mold according to the size of the drawing
2. Fully mix the aggregate and fine powder according to the formula
3. The slurry is poured into the mold and placed on a horizontal vibrating device to vibrate densely
4. Take off the outer mold after standing still for a period of time, and make it smooth by hand
5. Take off the inner mold and decorate the heart by hand
6. After being fully air-dried, it is fired in the kiln. The kiln temperature is based on the actual use temperature, that is to say, the kiln temperature must be higher than the actual use temperature
The above are large crucibles, and small cup-shaped crucibles are mainly formed by machine stamping.

The physical and chemical index of corundum crucible

Al2O3≥99
R2O≤0.2
Fe2O3≤0.1
SiO2≤0.2
Volume density (g/cm2) ≥3.80
Porosity (%) <1
Flexural strength (Mpa)> 350
Compressive strength (Mpa)> 12000
Dielectric constant ∑ (1MHz): 2
Maximum operating temperature (℃): 1800

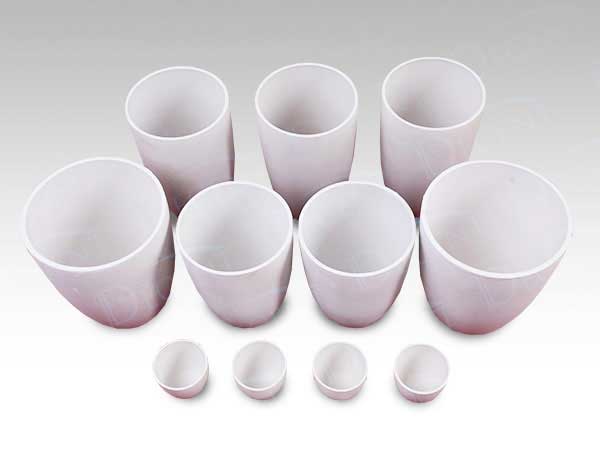

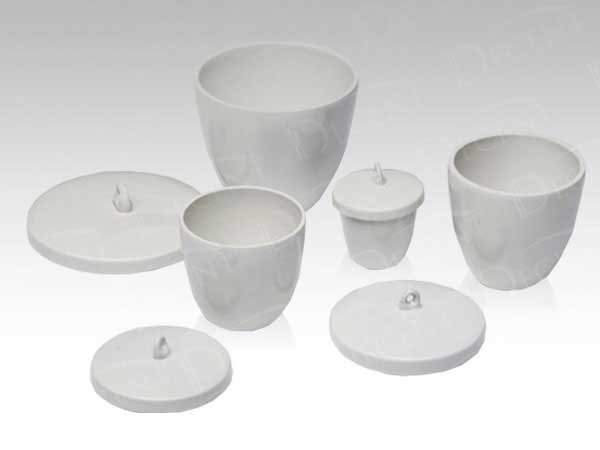

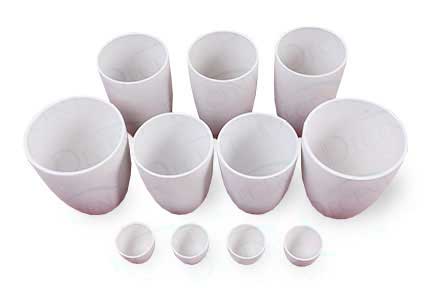

[ Alumina Ceramic Crucibles Technical Parameters ]

Volume(ml) Height(mm) TopDiameter (mm) BottomDiameter (mm)
5 25 27 15
8 30 27 15
10 27 28 18
15 30 33 20
20 35 38 20
25 40 40 22
30 42 47 25
50 47 50 30
100 60 65 35
150 65 75 40
200 70 80 40
300 85 90 40
500 122 90 45
950 160 100 60
1000 145 125 70
[ Corundum Dish ]

corundum dish

Diameter mm

High mm

Volume ml

75

28

60

80

35

75

100

40

125

110

40

150

127

46

250

143

50

400

160

60

500

190

65

1000

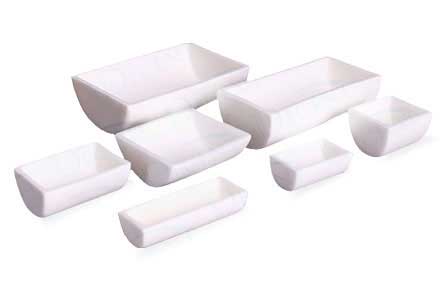

[ Corundum Ark ]

corundum ark

Ark No.

Length mm

Width mm

High mm

72-77

73

12

9

88

85

13

10

92

90

14

10

97

93

16

11

[ Ark Semicircle ]

Ark Semicircle

Semicircle No.

Length (mm)

Width (mm)

High (mm)

1

240

40

20

2

150

40

20

3

290

40

22

4

50

40

17

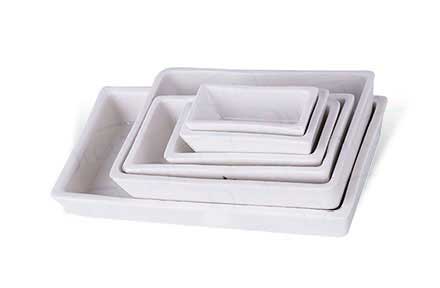

[ Ash Dish ]

ash dish

No.

Top Length (mm)

Bottom Length (mm)

Top Width (mm)

Bottom Width (mm)

High (mm)

D-211

45

37

22

13

15

D-212

50

41

27

20

15

D-213

60

53

30

22

15

D-214

80

72

40

32

17

D-215

90

82

60

52

18

D-217

120

108

60

50

18

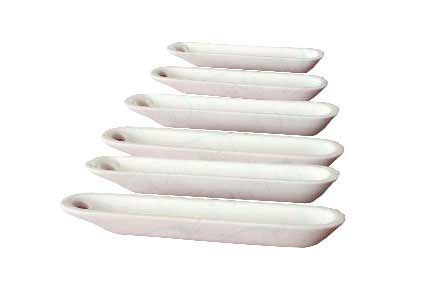

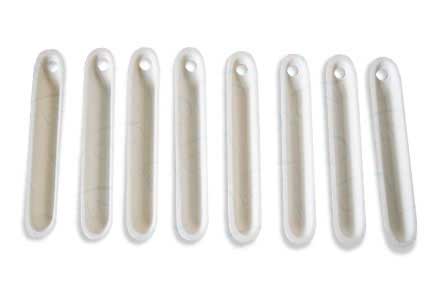

[ Cobustion Boat ]

combustion boat

No.

Length (mm)

High (mm)

Top Length (mm)

Bottom Length (mm)

D-95

72

9

11

6

D-96

77

9

12

7

D-97

88

10

13

8

D-98

95

10

15

9

D-99

97

11

17

10

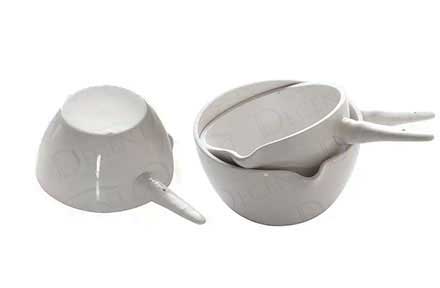

[ Evaporating Dish With Handle ]

evaporating dish with handle

No.

Volume (ml)

Top Diameter (mm)

Bottom Diameter (mm)

High (mm)

D-78

30

50

30

30

D-79

40

56

34

32

D-79-1

50

60

36

34

D-80

70

66

40

39

D-81

100

80

52

45

D-82

125

86

53

46

D-83

150

90

54

48

D-84

200

96

56

52

D-85

250

108

65

60

D-85-1

300

110

66

62

D-87

500

132

80

70

D-88

700

140

82

75

D-89

1000

164

100

90

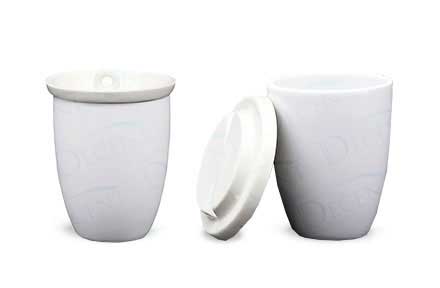

[ Volatile Determination Crucible ]

volatile determination crucible

No.

Volume (ml)

Top Diameter (mm)

Bottom Diameter (mm)

High (mm)

D-75

20

32

20

43

D-76

25

37

22

46

D-77

30

40

24

50

[ Unglazed Crucible ]

unglazed crucible

Volume (ml)

Top Diameter (mm)

Bottom Diameter (mm)

High (mm)

5000

165

100

265

1300

140

85

160

1000

135

80

150

750

115

65

150

500

105

65

170

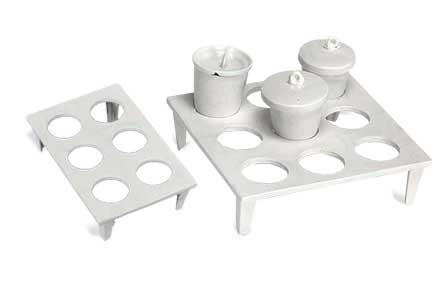

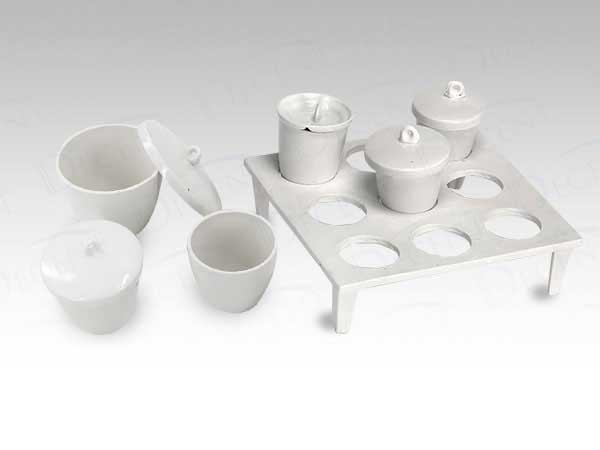

[ Crucible Shelf ]

crucible shelf

No.

Length (mm)

Width (mm)

High (mm)

Holes

D-900

160

100

40

6

D-901

160

150

40

9

Besides the above products, we also provide low wall crucibles, high wall crucibles, pores of crucibles, tight crucibles, double crucibles, roga crucibles, far infrared carbon crucibles, combustion tube, tapered tube, protection tube, threaded pipes, funnel, mortars, color plate, medicine shovel, clay triangle, acid resistant cylinder, staining VAT, experimental tank, corundum ball mill liner, alumina ceramic balls, corundum mortar, corundum tube, ect.
