Containerized Labs

Fire Assay Laboratory with a 40-foot Container

Fire Assay Laboratory with a 40-foot Container

Our engineers designed and integrated all the equipment needed for fire assaying into a 40-foot container. Besides providing enough space to conduct the fire assaying in the container, the clever design is also able to ensure the safety of the container and the fire assayer. All fire assay equipment is all modular and prefabricated for container space, which can be composed of different fire assay assemblies according to the detection purpose.

Product Details

Durable, sustainable, customizable, economical containerized labs

Qingdao Decent Group's fire assay containerized laboratory is built on modified ISO shipping containers, integrates all the equipment required for the fire assay process, and comes with the advantages of pre-engineered, modular, mobile, and turnkey construction.

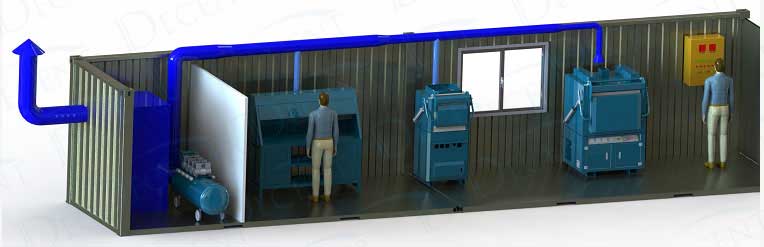

fire assay containerized laboratory

Detection of gold and silver using fire assay involves three processes: fusion, cupellation, and parting. A variety of equipment is used in these determination processes, including fusion furnace, cupellation furnace, crucible tumbler, crucible rack, crucible trolley, crucible loader, fire assaying tools, etc. Our engineers carefully designed and integrated all the equipment needed for fire assaying into a 40-foot container. Besides providing enough space to conduct the fire assaying in the container, the clever design is also able to ensure the safety of the container and the fire assayer.

All fire assay equipment is all modular and prefabricated for container space, which can be composed of different fire assay assemblies according to the detection purpose. We design different solutions in advance so that we can quickly complete them and deliver them to customers in accordance with their requirements.

Additionally, we can design one container laboratory or a group of container laboratories based on the requirements of our customers. The different container laboratory systems can be classified according to the usage and purpose of the experiment,

such as

fire assay container laboratories

sample preparation container laboratories

rock mineral analysis laboratories

chemical laboratories

container offices

sample storage containers

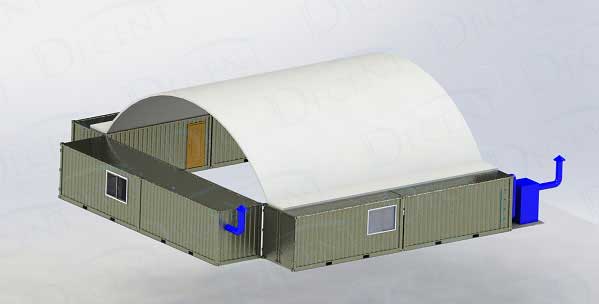

a group containerized laboratories

Comparing modular containerized laboratories to traditional laboratory buildings, their construction costs are highly advantageous. Furthermore, containerized laboratories are very flexible to move and reuse, and can be built in remote regions as well as mine testing and geological research sites. Our mobile labs can be set up and running as soon as they arrive, as long as water, electricity, and drainage are available.

Our container laboratory is durable, sustainable, customizable, economical and environmentally friendly, all configured to meet the needs of your current operation. Besides 40ft container, we can also provide 20ft container design and production.

[ Key Advantages ]

• Prefabricated modules, various combinations
Easy to transport and reuse
Rugged, safe, and environmentally friendly
Short construction time and cost savings

[ Technical Parameters ]

40’ HC Container Lab

Overall Dimensions

Length

12,192mm

40’

Width

2,438mm

8’

Height

2,896mm

9’-6’’

Internal Dimensions

Length

11,590mm

38'-19/64"

Width

2,294mm

7'-6 5/16"

Height

2,530mm

8'-3 19/32"

20’ Container Lab

Overall Dimensions

Length

6,058mm

20’

Width

2,438mm

8’

Height

2,591mm

8’-6’’

Internal Dimensions

Length

5,468mm

17'-11 17/64"

Width

2,294mm

7'-6 5/16"

Height

2,273mm

7'-5 9/64"

[ Related Products ]

We manufacture almost all equipment, tools and consumables for various mobile laboratory requirements of sample preparation, fire assay, test & analysis and so on as below.

fire assay fusion furnace fire assay cupellation furnace laboratory jaw crusher laboratory hammer crusher containerized-sample-preparation-laboratory

laboratory dust removal system Mobile Container Laboratory sample pulverizer of laboratory laboratory drying oven laboratory standard sieve shaker
