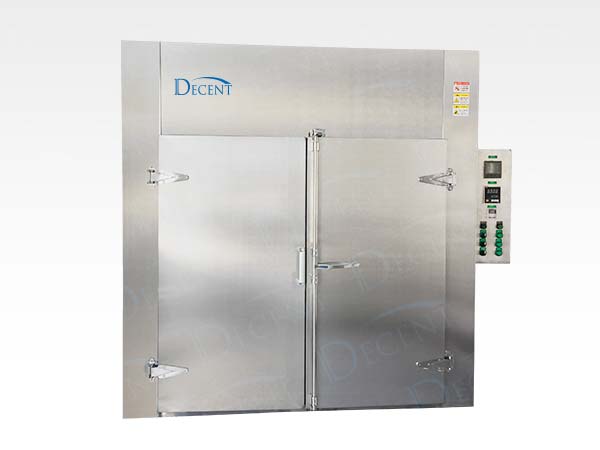

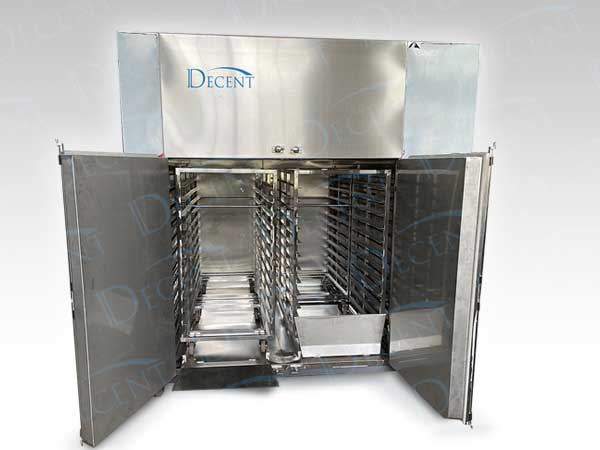

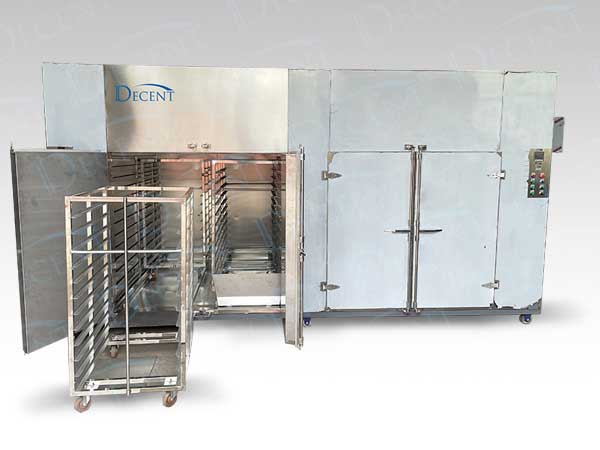

DECENT Drying Oven with Trolley is engineered to meet the demanding requirements of various industries requiring efficient and uniform drying of materials. Its standout feature is the integrated trolley system, which allows for effortless loading and unloading of heavy or numerous samples, significantly enhancing operational efficiency and reducing manual handling. The oven utilizes advanced forced air convection technology to ensure homogenous temperature distribution throughout the chamber, guaranteeing consistent and reliable drying results across all loaded materials. Precision temperature control, managed via an intuitive digital interface, allows users to set and maintain specific drying parameters with high accuracy. Constructed with robust, high-quality materials and excellent insulation, the DECENT Drying Oven minimizes heat loss, leading to energy savings and stable internal temperatures. Equipped with comprehensive safety features, including over-temperature protection and alarm systems, it ensures secure and reliable operation. This oven is ideal for applications ranging from laboratory sample preparation and industrial component drying to curing processes in manufacturing.
·The outer shell is made of AS board and spray-painted for a clean and aesthetically pleasing appearance.

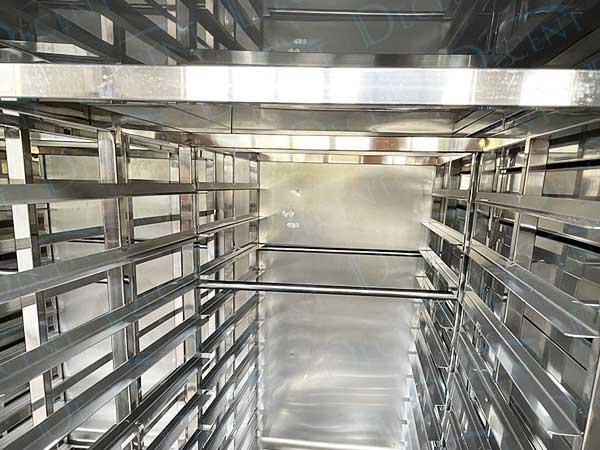

·The inner box is made of SUS304 stainless steel, which is durable and easy to clean.
·Single door, double door and revolving door are available.
·Equipped with a one-piece silicone rubber door seal for tight closure.
·Features a digital LED display and PID intelligent control instrument.
·The protection system consists of over-temperature protection and alarm devices.
|
|
|
|
|
|||||
| Model | DDO-1-1-1350N | DDO-1-1-1350E | DDO-2-2-2500N | DDO-2-2-2500E | DDO-2-4-5000N | DDO-2-4-5000E | DDO-4-8-10000E | |
| Total Power | 1.85kW | 8.85kW | 2.37kW | 20kW | 3.87kW | 33.5kW | 67kW | |
| Circulation Motor | 1.1kW | 1.1kW | 1.5kW | 1.5kW | 3kW | 3kW | 2×3kW | |
| Dehumidification Motor | 0.25kW | 0.25kW | 0.37kW | 0.37kW | 0.37kW | 0.37kW | 2×0.37kW | |
| Heating Power | – | 7.5kW | – | 18kW | – | 30kW | 60kW | |
| Burner & Control Circuit | 0.5kW | – | 0.5kW | – | 0.5kW | – | – | |
| Heating Range (Customize available) | Room temperarure +10 to 150°C | Room temperarure +10 to 150°C | Room temperarure +10 to 150°C | Room temperarure +10 to 150°C | ||||
| Temperature Accuracy | ±1°C | ±1°C | ±1°C | ±1°C | ||||
| Capacity | 1,350L | 2,500L | 5,000L | 10,000L | ||||
| External Dimensions (W×D×H) | 1400×1265×2350mm | 1200×1265×2350mm | 2115×1265×2350mm | 1915×1265×2350mm | 2115×2215×2450mm | 1915×2215×2450mm | 3430×2215×2450mm | |
| Internal Dimensions (W×D×H) | 800×1000×1695mm | 1515×1000×1695mm | 1515×1950×1695mm | 3030×1950×1695mm | ||||
| Power Cabinet Dimensions (W×D×H) | 650×300×1660mm | 650×300×1660mm | 650×300×1660mm | 650×300×1660mm | ||||
| Trolley Dimensions (W×D×H) | 705×950×1596mm | 705×950×1596mm | 705×950×1596mm | 705×950×1596mm | ||||
| Shelve Dimensions (L×W×H) | 640×460×45mm | 640×460×45mm | 640×460×45mm | 640×460×45mm | ||||
| Single Shelve Load Capacity | 10kg | 10kg | 10kg | 10kg | ||||
| Number of Trolleys | 1 | 2 | 4 | 8 | ||||
| Shelves per Trolley | 26 | 26 | 26 | 26 | ||||
| Heating Method | Gas Heating | Electric Heating | Gas Heating | Electric Heating | Gas Heating | Electric Heating | Electric Heating | |
