·Temperature control system can be selected as PID or programmable temperature controller
·Equipped with over-temperature alarm function
·Convenient to use with a double-door structure
·The forced air system uses a low-noise fan
The Large Electric Forced Air Drying Oven is a versatile and efficient solution for various industrial and laboratory applications. It is designed to provide uniform drying, sterilization, and baking processes, making it suitable for sectors such as mining, pharmaceuticals, food processing, automotive, electronics, and aerospace.
This oven is equipped with advanced features like digital temperature control, adjustable airflow, and a corrosion-resistant stainless steel interior. Its forced convection system ensures rapid, uniform heat distribution, critical for accurate mineral analysis and quality control.
·Chamber: Made from high-quality stainless steel.
·Heating System: Equipped with a powerful electric heating tube.

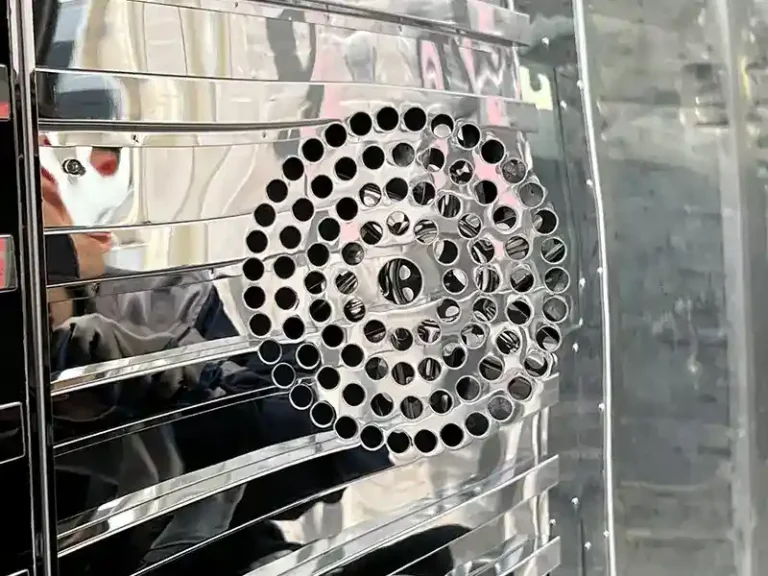

·Air Circulation: Horizontal air circulation through double air ducts ensures high efficiency and uniformity.
·Temperature Control: Features a PID controller with over-temperature protection.
·Display and Interface: Equipped with an LCD screen.
·Safety: Includes an over-temperature alarm system and a digital independent temperature limiter.
| Models | DDO4A | DDO5A | DDO6A | DDO7A | DDO8A | |
| DDO4AB | DDO5AB | DDO6AB | DDO7AB | DDO8AB | ||
| Circulation Mode | Forced Convection | |||||
| Performance | Temperature Range | RT+10-250℃ | RT+10-300℃ | |||
| Temperature Resolution | 0.1℃ | |||||
| Temperature Fluctuation | ±1℃ | |||||
| Temperature Distribution Accuracy | ±3% | |||||
| Structure | Workspace | Model A: Iron Inner Liner, Model AB: Stainless Steel Inner Liner | ||||
| Outer Casing | Processed with galvanized sheet and electrostatic spray coating for anti-corrosion treatment | |||||
| Insulation Layer | High-quality rock wool board (CE certification) | |||||
| Heater | Stainless Steel Electric Heating Tube | |||||
| Rated Power | 6kW | 6.6kW | 9kW | 12kW | 15kW | |
| Exhaust Vent | Top or Side Exhaust | |||||
| Controller | Temperature Control Method | PID Intelligent Control | ||||
| Temperature Setting Method | Keypad Setting | |||||
| Temperature Display Method | LCD Digital Display | |||||
| Timer | 0-9999 minutes (with timed waiting function) | |||||
| Operation Functions | Fixed value operation, timed operation, automatic stop | |||||
| Additional Functions | Temperature Deviation Correction, Menu Locking, Power-Off Memory | |||||
| Sensor | pt100 | |||||
| Safety Device | One-Key Start, Over-Temperature Power Off | |||||
| Specifications | Workspace Dimensions (WxDxH mm) | 800*800*1000 | 1000*1000*1000 | 1000*1000*1300 | 1200*1200*1300 | 1600*1200*1600 |
| External Dimensions (WxDxH mm) | 940*1000*1400 | 1040*1200*1400 | 1230*1200*1670 | 1330*1400*1670 | 1750*1400*1990 | |
| Packaging Dimensions (WxDxH mm) | 1060*1090*1520 | 1260*1290*1520 | 1350*1300*1890 | 1550*1500*1890 | 1950*1500*1910 | |
| Internal Volume | 640L | 1000L | 1300L | 1870L | 3070L | |
| Number of Shelves | 11 | 11 | 15 | 15 | 18 | |
| Shelf Load Capacity | 30KG | |||||
| Shelf Spacing | 70MM | |||||
|
Power (50/60Hz) Rated Current |
380V | |||||
| Net Weight / Gross Weight (kg) | 200 | 260 | 350 | 480 | 800 | |
| Accessories | Shelf | 2 | ||||
| Shelf Racks | None | |||||
| Configurable for Additional Setup | Shelf, RS485 Interface, Printer, Programmable Temperature Controller | |||||
