Drying Oven with Trolley

Key Advantages

Efficient and uniform material drying.
High capacity trolley system for easy loading/unloading.
Precise digital temperature control.
Temperature range: Room temperature +10 to 150°C.
Temperature accuracy: ±1°C.
Forced air convection for homogenous distribution.
Robust and insulated design.
Minimizes heat loss for energy savings.
Includes over-temperature protection.
Features alarm systems for safety.
Available in capacities up to 10,000L.

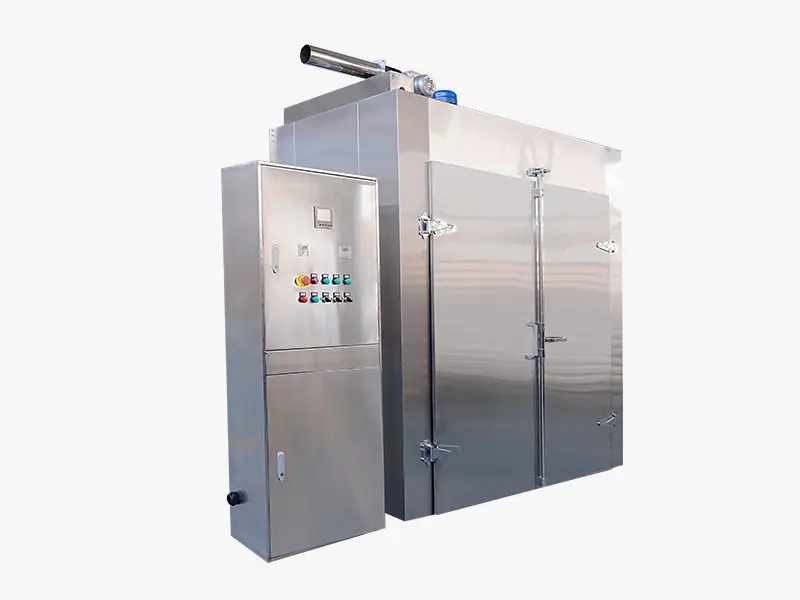

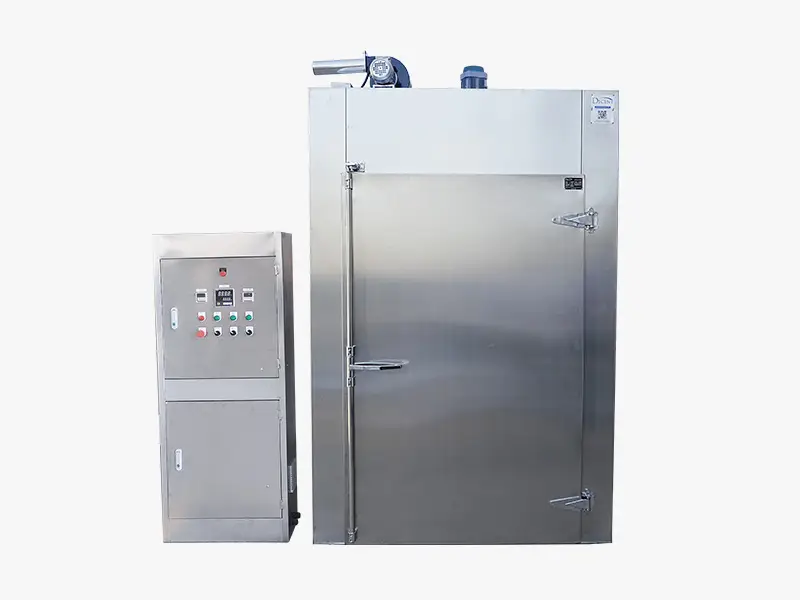

Drying Oven with Trolley

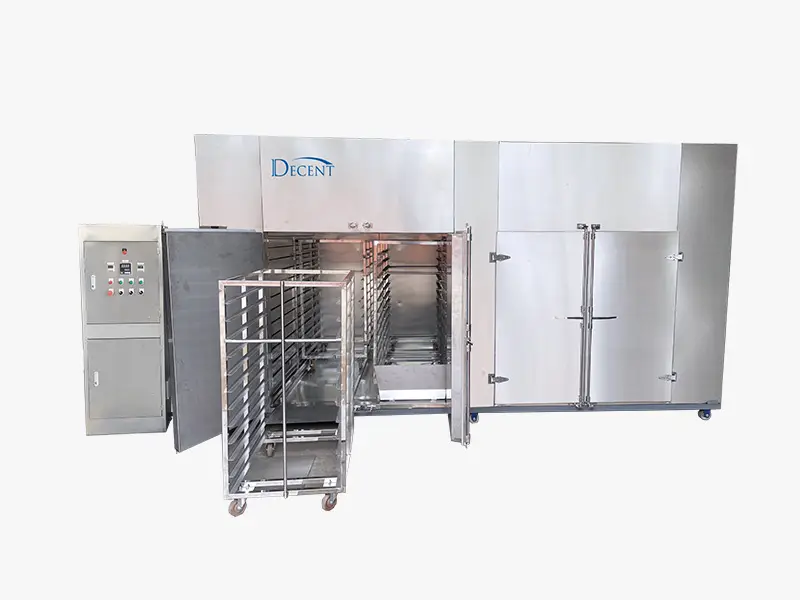

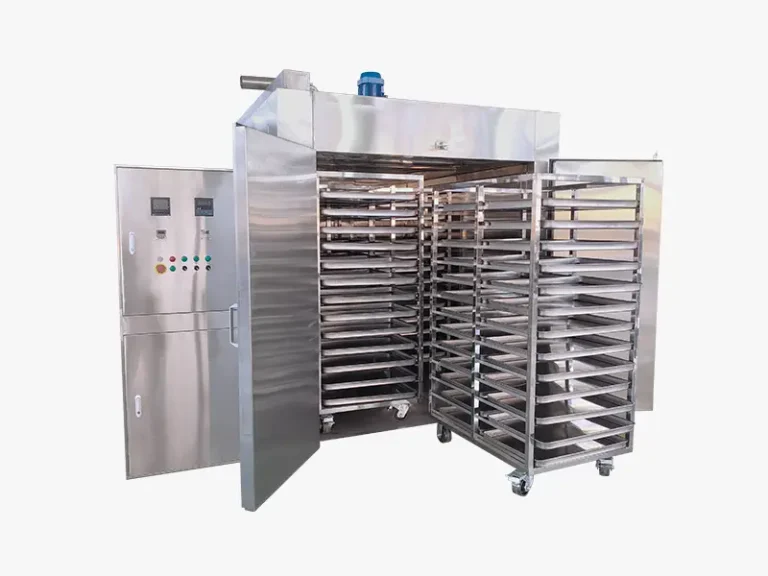

DECENT Drying Oven with Trolley is engineered to meet the demanding requirements of various industries requiring efficient and uniform drying of materials. Its standout feature is the integrated trolley system, which allows for effortless loading and unloading of heavy or numerous samples, significantly enhancing operational efficiency and reducing manual handling. The oven utilizes advanced forced air convection technology to ensure homogenous temperature distribution throughout the chamber, guaranteeing consistent and reliable drying results across all loaded materials. Precision temperature control, managed via an intuitive digital interface, allows users to set and maintain specific drying parameters with high accuracy.

Constructed with robust, high-quality materials and excellent insulation, the DECENT Drying Oven minimizes heat loss, leading to energy savings and stable internal temperatures. Equipped with comprehensive safety features, including over-temperature protection and alarm systems, it ensures secure and reliable operation. This oven is ideal for applications ranging from laboratory sample preparation and industrial component drying to curing processes in manufacturing.

Chat Now

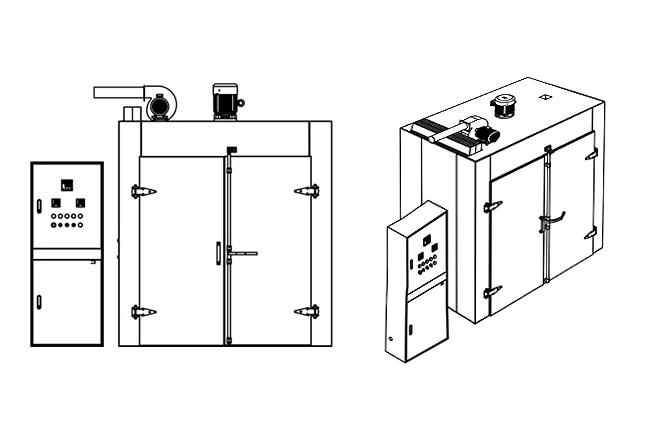

Equipment Construction

Outer shell: AS board with spray-painted finish.
Inner box: Durable SUS304 stainless steel.
Door options: Single door, double door, revolving door.
One-piece silicone rubber door seal for tight closure.
Control system: Digital LED display.
Utilizes PID intelligent control instrument.
Protection system: Over-temperature protection.
Includes alarm devices.
Available with Gas or Electric heating.

Technical Parameters

	DECENT Drying Oven DDO-1-1-1350N/E		DECENT Drying Oven DDO-2-2-2500N/E		DECENT Drying Oven DDO-2-4-5000N/E		DECENT Drying Oven DDO-4-8-10000E
Model	DDO-1-1-1350N	DDO-1-1-1350E	DDO-2-2-2500N	DDO-2-2-2500E	DDO-2-4-5000N	DDO-2-4-5000E	DDO-4-8-10000E
Total Power	1.85kW	8.85kW	2.37kW	20kW	3.87kW	33.5kW	67kW
Circulation Motor	1.1kW	1.1kW	1.5kW	1.5kW	3kW	3kW	2×3kW
Dehumidification Motor	0.25kW	0.25kW	0.37kW	0.37kW	0.37kW	0.37kW	2×0.37kW
Heating Power	–	7.5kW	–	18kW	–	30kW	60kW
Burner & Control Circuit	0.5kW	–	0.5kW	–	0.5kW	–	–
Heating Range (Customize available)	Room temperarure +10 to 150°C		Room temperarure +10 to 150°C		Room temperarure +10 to 150°C		Room temperarure +10 to 150°C
Temperature Accuracy	±1°C		±1°C		±1°C		±1°C
Capacity	1,350L		2,500L		5,000L		10,000L
External Dimensions (W×D×H)	1400×1265×2350mm	1200×1265×2350mm	2115×1265×2350mm	1915×1265×2350mm	2115×2215×2450mm	1915×2215×2450mm	3430×2215×2450mm
Internal Dimensions (W×D×H)	800×1000×1695mm		1515×1000×1695mm		1515×1950×1695mm		3030×1950×1695mm
Power Cabinet Dimensions (W×D×H)	650×300×1660mm		650×300×1660mm		650×300×1660mm		650×300×1660mm
Trolley Dimensions (W×D×H)	705×950×1596mm		705×950×1596mm		705×950×1596mm		705×950×1596mm
Shelve Dimensions (L×W×H)	640×460×45mm		640×460×45mm		640×460×45mm		640×460×45mm
Single Shelve Load Capacity	10kg		10kg		10kg		10kg
Number of Trolleys	1		2		4		8
Shelves per Trolley	26		26		26		26
Heating Method	Gas Heating	Electric Heating	Gas Heating	Electric Heating	Gas Heating	Electric Heating	Electric Heating
