Containerized Labs

Containerized Rock-Mineral Analysis Lab

Containerized Rock-Mineral Analysis Lab

Qingdao Decent Group's containerized rock-mineral analysis laboratory is a mobile laboratory specially used for the physical and chemical determination and analysis of mineral content and mineral species. Main applications include mineral processing industry, pilot plant, mineral analysis laboratory, etc.

Product Details

Rugged, Mobile, Eco-Friendly Container Labs

Qingdao Decent Group's containerized rock-mineral analysis laboratory is a mobile laboratory specially used for the physical and chemical determination and analysis of mineral content and mineral species. Main applications include mineral processing industry, pilot plant, mineral analysis laboratory, etc.

containerized mobile laboratory

We design and build container labs that can integrate a variety of modular equipment. Such as clean operating rooms and fume hoods, small and medium cutting machines, various grinding equipment, electronic balance weighing, microscopes, different types of jaw crushers, sample dividers, dryers, sieve shakers, and other equipment.

It can also be equipped with sequential X-ray fluorescence spectrometer, plasma emission spectrometer, atomic absorption spectrophotometer, X-ray powder crystal diffractometer and other equipment, as well as supporting sample pretreatment system, which can undertake rocks, ores, minerals, soil or aqueous solutions, etc. Qualitative or quantitative analysis of major or trace elements in samples.

analysis laboratory

Additionally, we can design one container laboratory or a group of container laboratories based on the requirements of our customers. The different container laboratory systems can be classified according to the usage and purpose of the experiment,

such as

fire assay container laboratories

sample preparation container laboratories

rock mineral analysis laboratories

chemical laboratories

container offices

sample storage containers

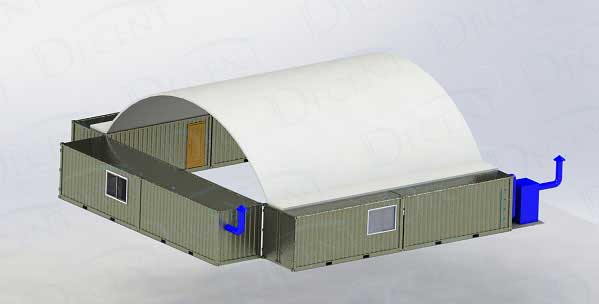

a group containerized laboratories

Comparing modular containerized laboratories to traditional laboratory buildings, their construction costs are highly advantageous. Furthermore, containerized laboratories are very flexible to move and reuse, and can be built in remote regions as well as mine testing and geological research sites. Our mobile labs can be set up and running as soon as they arrive, as long as water, electricity, and drainage are available.

Our container laboratory is durable, sustainable, customizable, economical and environmentally friendly, all configured to meet the needs of your current operation. Besides 40ft container, we can also provide 20ft container design and production.

[ Key Advantages ]

• Prefabricated modules, various combinations
Easy to transport and reuse
Rugged, safe, and environmentally friendly
Short construction time and cost savings

[ Product Video ]

Below is one of our rock-mineral analysis container laboratory, please watch

[ Technical Parameters ]

40’ HC Container Lab

Overall Dimensions

Length

12,192mm

40’

Width

2,438mm

8’

Height

2,896mm

9’-6’’

Internal Dimensions

Length

11,590mm

38'-19/64"

Width

2,294mm

7'-6 5/16"

Height

2,530mm

8'-3 19/32"

20’ Container Lab

Overall Dimensions

Length

6,058mm

20’

Width

2,438mm

8’

Height

2,591mm

8’-6’’

Internal Dimensions

Length

5,468mm

17'-11 17/64"

Width

2,294mm

7'-6 5/16"

Height

2,273mm

7'-5 9/64"

[ Related Products ]

We manufacture almost all equipment, tools and consumables for various mobile laboratory requirements of sample preparation, fire assay, test & analysis and so on as below.

fire assay fusion furnace fire assay cupellation furnace laboratory jaw crusher laboratory hammer crusher containerized-sample-preparation-laboratory

laboratory dust removal system acid fume scrubber sample pulverizer of laboratory laboratory drying oven laboratory standard sieve shaker
