Ideal for locations with limited power infrastructure or high electricity costs
•
Built with rugged materials for long-term reliability
•
Mobile trolley configuration optimizes space utilization, supporting efficient batch processing of large-volume samples
•
The forced hot air circulation system ensures uniform temperature distribution
•
Allowing customization based on specific requirements

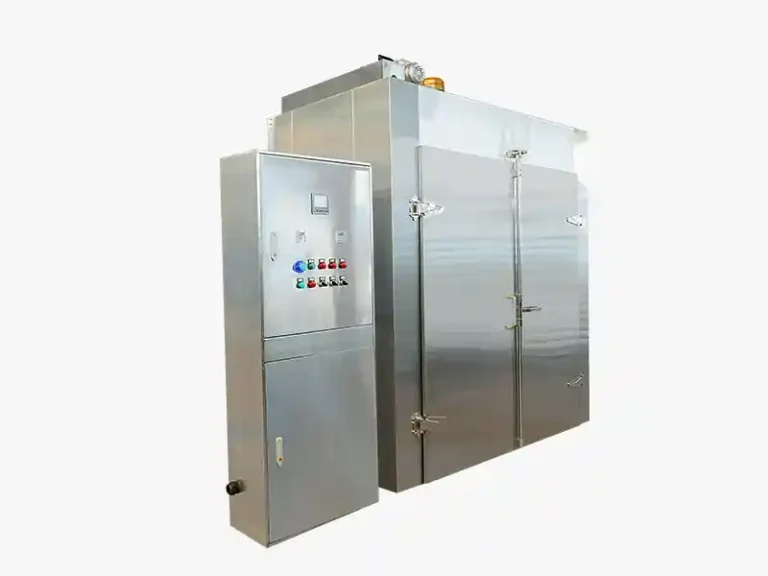

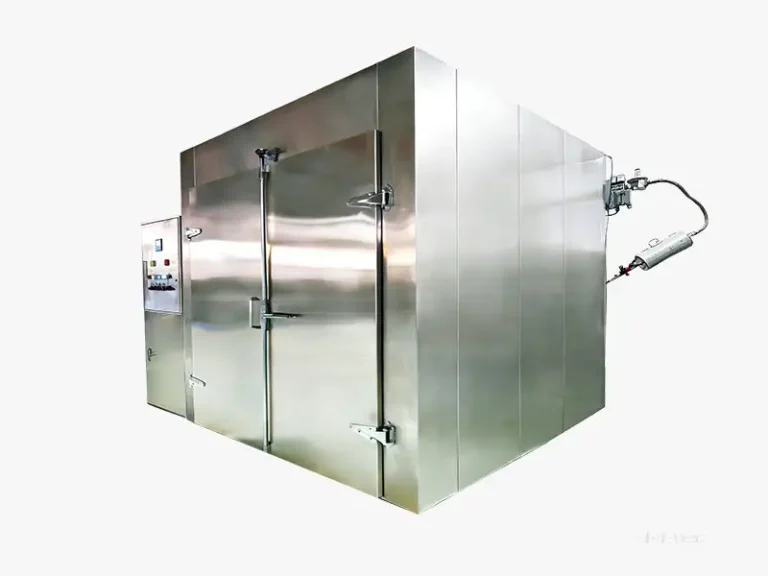

DECENT LP & Natural Gas Fired Drying Oven Series is engineered to meet the rigorous demands of industrial-scale drying applications. Designed with energy efficiency and reliability at its core, this series leverages gas as the primary energy source to deliver powerful heating performance while minimizing electrical load—making it a cost-effective solution for facilities seeking to reduce energy expenses without compromising on productivity.
Available in a variety of multi-functional models, the series caters to varying throughput requirements, from small to large-batch operations. Whether used in mineral laboratories, industrial processing plants, or manufacturing facilities, these drying ovens ensure consistent, high-quality drying results with minimal maintenance needs.
Constructed with a heavy-duty all-steel frame, the LP & Natural Gas Fired Drying Oven boasts exceptional durability and is built to withstand the harsh operating conditions of mineral laboratories. The furnace body is insulated with a high-density layer, which effectively reduces heat loss, enhances energy efficiency, and maintains a safe external surface temperature at all times.
The natural gas fired drying oven is equipped with high-efficiency forced air convection, engineered to achieve optimal heat transfer and uniform temperature distribution throughout the chamber.
Gas-Powered Heating
An efficient, fully automatic proportional burner ignites natural gas to generate powerful heat output, ensuring rapid and consistent temperature buildup.
Forced Air Circulation
A high-performance circulating motor drives the fan to actively deliver hot air through the entire air duct system inside the drying oven and directly to the surface of materials.
Intelligent Control & Humidity Management
The drying oven can be optionally equipped with a dehumidification fan to control moisture exhaust and accelerate the drying process.
Model | DDO-1-1-1350N | DDO-2-2-2500N | DDO-2-4-5000N |
Total Power | 1.85 kW | 2.37 kW | 4.2 kW |
Circulation Motor | 1.1 kW | 1.5 kW | 3 kW |
Dehumidification Motor | 0.25 kW | 0.37 kW | 0.37 kW |
Burner & Control Circuit | 0.5 kW | 0.5 kW | 0.8 kW |
Heating Range | Room Temperature +10°C to 150°C (Customization available) | ||
Temperature Accuracy | ±1°C | ||
Capacity | 1,350 L | 2,500 L | 5,000 L |
External Dimensions (W×D×H) | 1400 × 1265 × 2350 mm | 2115 × 1265 × 2350 mm | 2140 × 2690 × 2450 mm |
Internal Dimensions (W×D×H) | 800 × 1000 × 1695 mm | 1515 × 1000 × 1695 mm | 1515 × 1950 × 1695 mm |
Power Cabinet Dimensions (W×D×H) | 650 × 300 × 1660 mm | 650 × 300 × 1660 mm | 650 × 300 × 1660 mm |
Trolley Dimensions (W×D×H) | 705 × 950 × 1596 mm | 705 × 950 × 1596 mm | 705 × 950 × 1596 mm |
Shelve Dimensions (L×W×H) | 640 × 460 × 45 mm | 640 × 460 × 45 mm | 640 × 460 × 45 mm |
Load Capacity Per Shelve | 10 kg | 10 kg | 10 kg |
Number of Trolleys | 1 | 2 | 4 |
Shelves per Trolley | 26 | 26 | 26 |
Oven Material | Stainless Steel SUS304 | ||
Trolley Material | Stainless Steel (SUS201/SUS304 optional) | ||
| DECENT LP & Natural Gas Fired Drying Oven | EN | Download |
