Key Advantages

  • This heavy-duty vibratory mill efficiently reduces various materials to fine powders.
  • It provides rapid and dust-free grinding.
  • The mill excels at processing hard ores, minerals, and ceramics.
  • It achieves 95% fineness below 75 microns in approximately three minutes.
  • A robust motor powers the grinding mechanism.
  • Pneumatic bowl clamping securely holds the pulverizing bowls.
  • The mill is compatible with 50 cc to 2000 cc pulverizing bowls.
  • A safety lid switch and an emergency stop enhance operational safety.
  • It features a compact, noise-suppressed design.
  • The mill is certified for global laboratories with multi-voltage support.

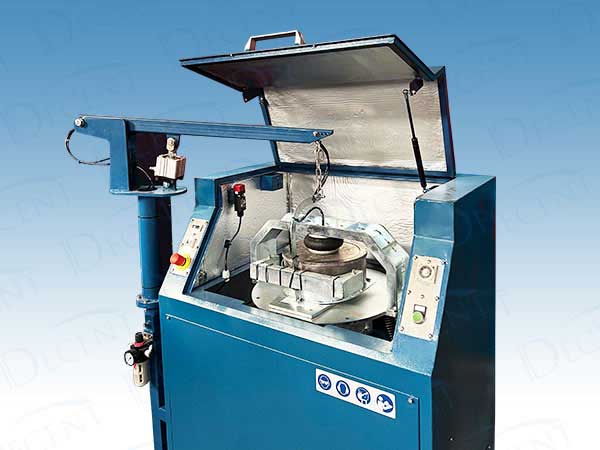

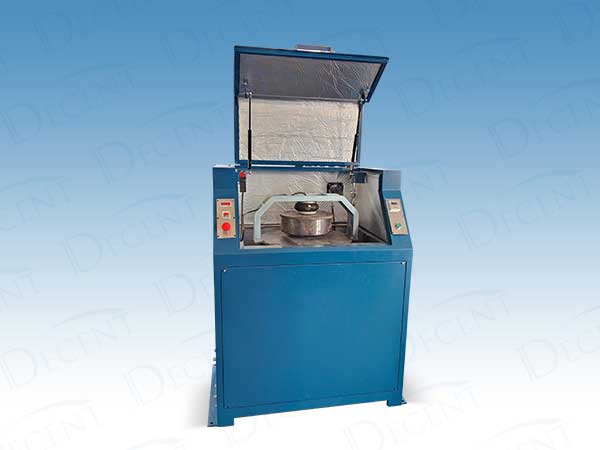

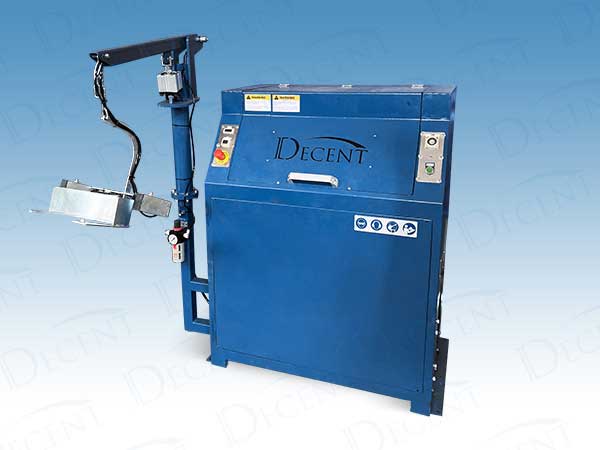

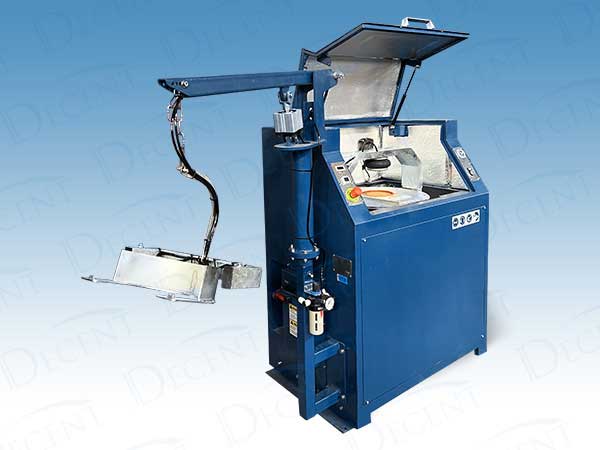

Lab Pulverizer Mill DP2000

DECENT DP2000 Lab Pulverizer Mill is a heavy-duty, high-capacity vibratory grinding mill designed for the rapid and precise reduction of various hard and brittle materials into fine, homogeneous powders. It operates on the principle of vibrational energy transfer to a grinding medium within a sealed bowl, ensuring efficient material comminution while minimizing dust and sample contamination. This industrial-grade laboratory instrument is specifically engineered for high-throughput sample preparation, delivering consistent particle size distribution essential for accurate downstream analytical processes.

Elevate your laboratory’s sample preparation with DECENT DP2000 Lab Pulverizer Mill. Engineered for laboratories demanding rapid, precise, and consistent pulverization of a diverse range of materials, the DP2000 stands as a benchmark in industrial-grade sample preparation. It is built to withstand rigorous daily use, ensuring analytical readiness with unparalleled efficiency. From mining and geology to environmental science and material research, the Pulverizer Mill DP2000 of Qingdao Decent Group transforms raw samples into fine, homogeneous powders, crucial for accurate and reproducible analytical results. Experience superior performance, advanced safety features, and a design built for enduring reliability, making the DP2000 an indispensable asset for your high-throughput laboratory.

Equipment Construction

Exploded view technical drawing of the DECENT Lab Pulverizer Mill DP2000, showing its disassembled components including the main cabinet, grinding mechanism, motor, and bowl lifting arm.
  • The mill boasts a compact, noise-suppressed design.
  • A safety lid switch is integrated into the structure.
  • Pneumatic bowl clamping is a key structural element for secure operation.
  • The lid incorporates a safety lock and gas strut, with physically isolated pneumatic and electric controls, and the motor is positioned away from the electrical box.
  • A bolt-on replaceable gooseneck and a rapid-secure pneumatic airbag clamping system are included to minimize manual effort.
  • Detachable front, back, left, and right panels within an insulated steel housing allow for easy access and noise suppression.
  • A robust motor drives the universal shaft via V-belts, delivering enhanced crushing power to the pulverizing bowl.

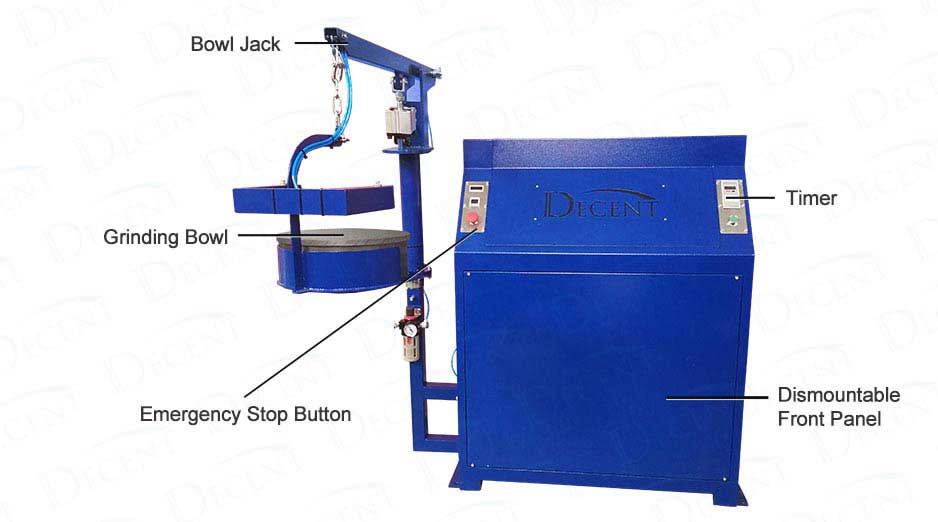

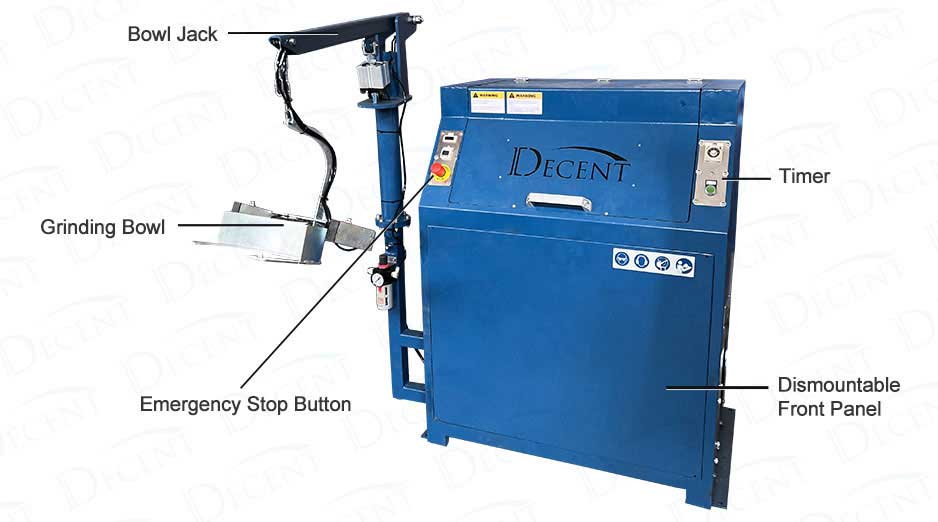

  • The Bowl Jack mounts on either cabinet side and is powered by a pneumatic cylinder to reduce manual workload.

Technical Parameters

DECENT brand blue vertical stripe design element, with light blue background.
Voltage 380-415V 50Hz 3phase Compressed Air Requirements 500 kPa to 600 kPa at 1L per minute maximum flow
Motor Power 2.2kW Compatible Pulverizing Bowls 50cc, 100cc, 125cc, 300cc, 400cc, 800cc, 1000cc, 2000cc
Feed Size ≤20mm Bowl Materials Standard steel, Chrome steel, Manganese steel, Tungsten steel (125cc only)
Output Size 95% minus 75μm Mill Net Weight 360kg
Timer Setting 1 second-60 hours Mill Dimensions 1180x1480x700mm
Grinding Capacity 40g-1600g Applications ores, minerals, metallurgical samples, ceramics, soils, aggregates, chemicals, and similar particulate
