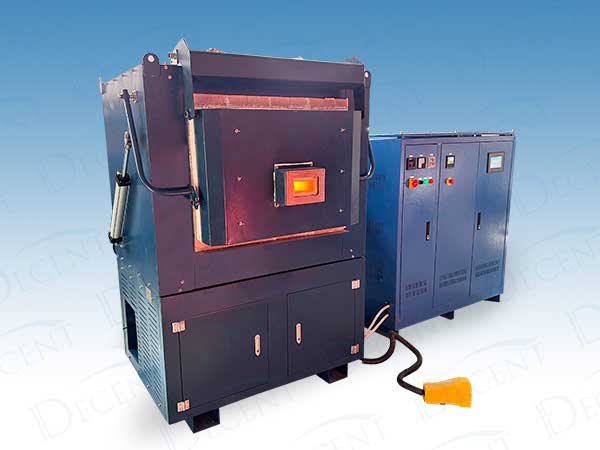

high temperature muffle furnace and transformer

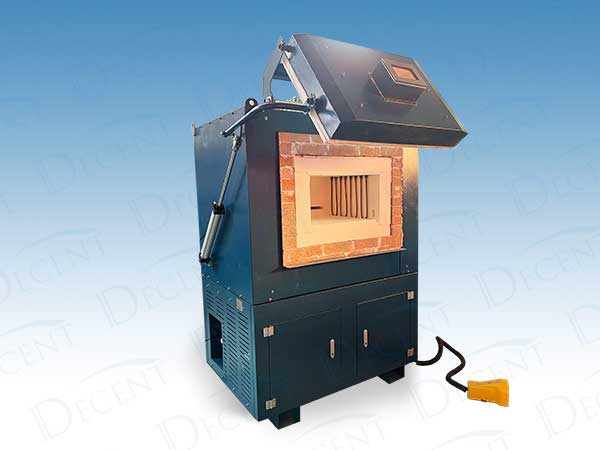

high temperature muffle furnace

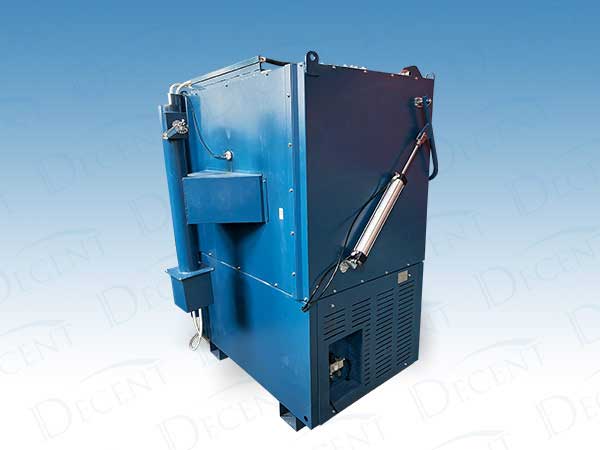

high temperature muffle furnace back view

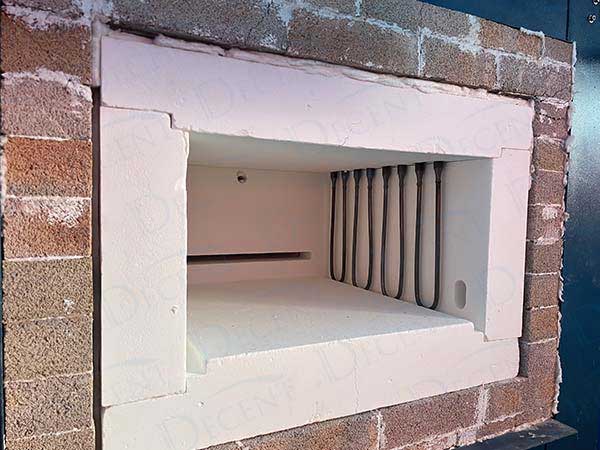

high temperature muffle furnace muffle

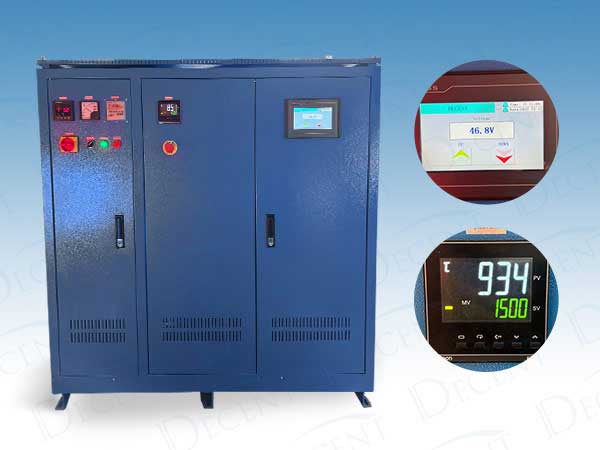

transformer of high temperature muffle furnace
high temperature muffle furnace and transformer
high temperature muffle furnace
high temperature muffle furnace back view
high temperature muffle furnace muffle
transformer of high temperature muffle furnace

High Temperature Muffle Furnace

The maximum temperature of the DECENT 100 places muffle furnace can be adjusted up to 1500°C. The heating speed is very fast by silicon-molybdenum elements. On the lifting door of the high-temperature muffle furnace, there is also an observation window for watching the cupellation of lead buttons. Observation windows are equipped with fire-resistant glass, which can protect personnel from high-temperature radiation.

Product Details

Visualization, large capacity, high temperature muffle furnace

The maximum temperature of the DECENT 100 places muffle furnace can be adjusted up to 1500°C. The heating speed is very fast by silicon-molybdenum elements. On the lifting door of the high-temperature muffle furnace, there is also an observation window for watching the cupellation of lead buttons. Observation windows are equipped with fire-resistant glass, which can protect personnel from high-temperature radiation.

The muffle furnace's performance and efficiency are improved by an oversized transformer that exceeds typical requirements. To enhance operator safety when operating the furnace, the controller responsible for regulating and monitoring its operation is positioned away from the assay furnace to prevent high-temperature burns. This separation ensures operator safety and prevents accidents.

Key Advantage:
• Industrial standard with big muffle
• Easy to maintain and operate
• Fast heat up with uniform and stable muffle temperature
• Simple replacement of consumables
• Electronic component leakage protection
• Pneumatic door vertical lifting by foot pedal

Equipment Structure:
• Furnace body construction is durable 2mm laser-cut plate in blue enamel and lined with high quality refractory bricks and insulation
• The door panel is attached with aluminum silicate refractory cotton, and the chamber is made of high-quality thermal insulation refractory bricks and refractory thermal insulation fiber cotton
• Using premium silicon molybdenum element heating, long life
• Independent furnace muffle and plate, easy to replace
• Electric heating method, an air compressor is required

Temperature Control:
• Type S

platinum rhodium

thermocouple
• Electronic automatic temperature control, up to 1500°C
• High temperature alarm output
• Fitted with over temperature controller

[ Electrical Parameters ]

Voltage: 600V 3Phase
Frequency: 60Hz
Input Power: 25kW
Input Current: 31.4A
Rated Heating Current: 245A
Rated Heating Power:19kW
Rated Temperature: 1500℃
Dimensions: 1440x1635x2000mm
Transformer Dimensions: 1200x600x1300mm
Temperature Sensor: S type platinum rhodium thermocouple
Pneumatic vertical lifting door, recommended air pressure: 0.4-0.5 Mpa
Heating Element: Silicon Molybdenum Elements

[ Muffle Working Size ]
Height:295mm
Depth:575mm

Width:485mm

[ Number of Cupels]

100 x 6A, 7A, 7AS

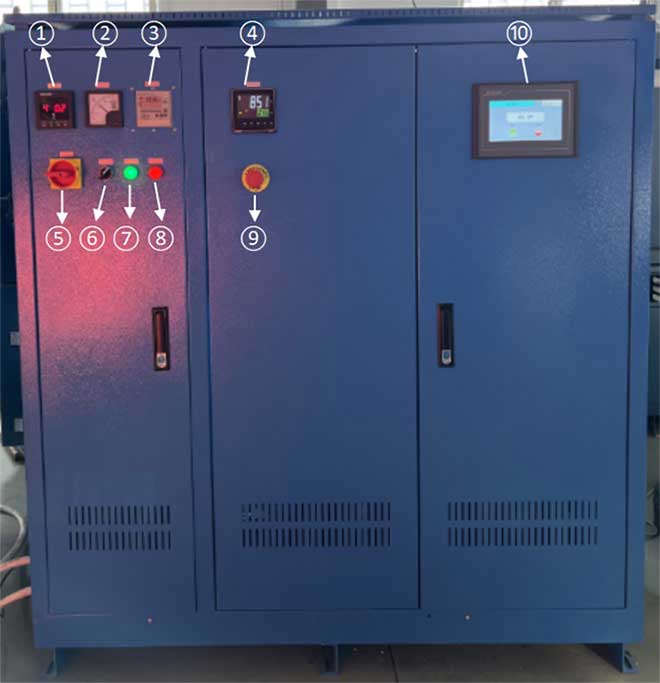

[ Transformer Component Name]

furnace transformer

No.

Component Name

Voltmeter

Ammeter

Timer

Temperature Control Meter

Power Switch

Heating Switch

Power Indicator Light

Heating Indicator Light

Emergency Stop Button

Touch Screen



[ Various Options ]

• Optional equipment such as fire assay tools, manual/electric crucible loader, etc. can be used to form integrated systems of multi-pour loading, unloading and cupellation.
• Optional laboratory dust removal system and acid fume scrubber
• The 100 place cupellation furnace can be connected with a 50 place laboratory crucible fusion furnace
• Safety goggles, aluminized heat-insulating protective clothing, and aluminized protective gloves must be worn during the whole process of the cupellation
• Fire assay cupellation furnace can be customized according to customer needs
