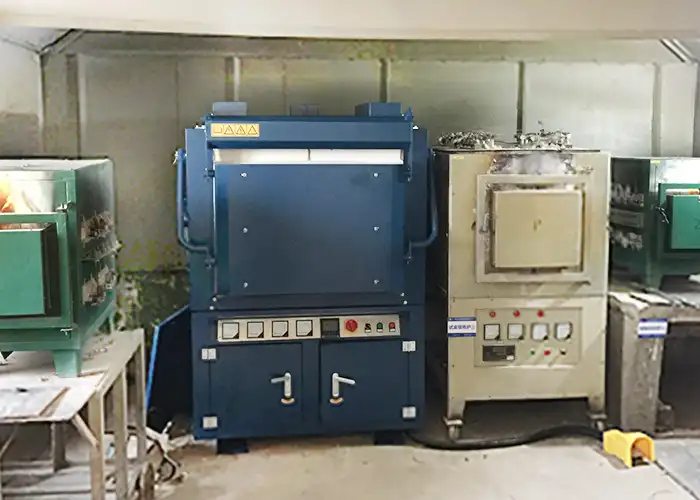

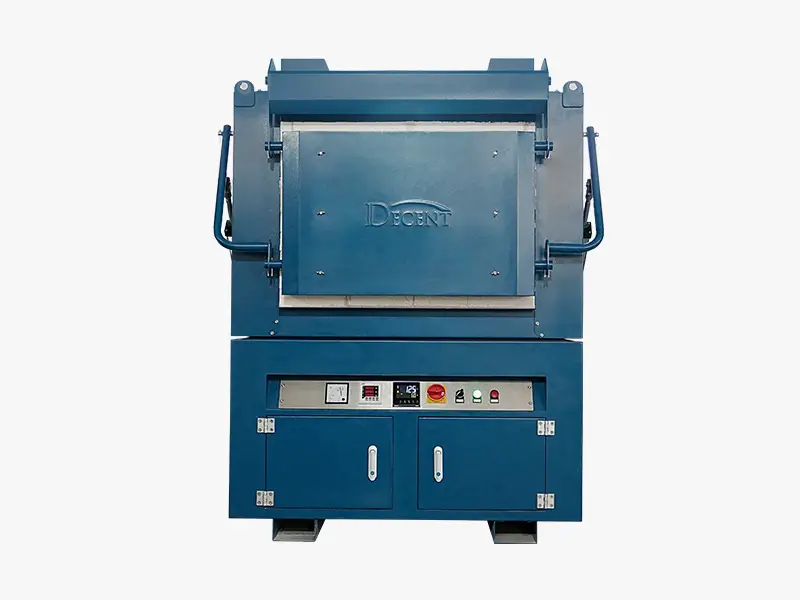

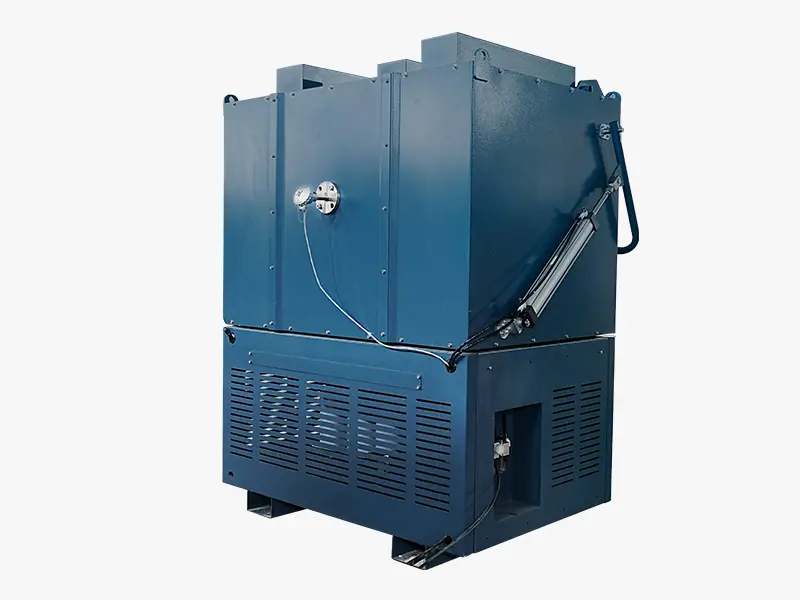

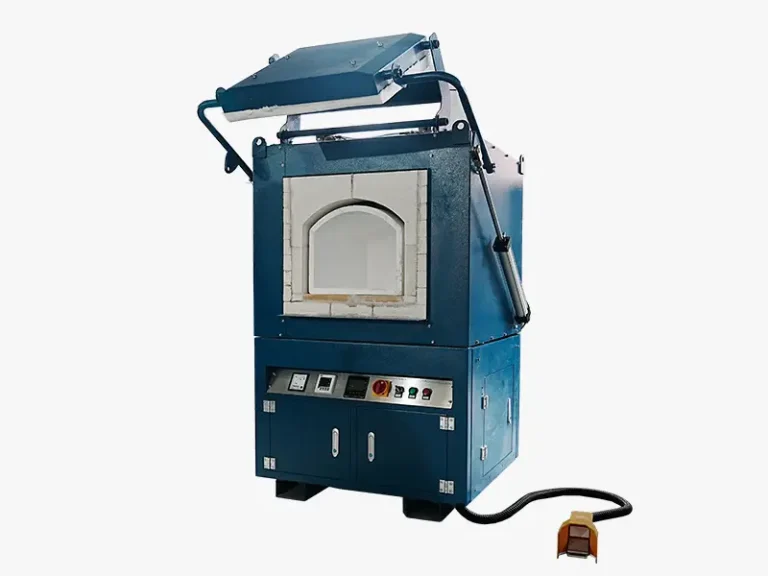

Fire Assay Fusion Furnace

What is a Fire Assay Fusion Furnace?

A Fire Assay Fusion Furnace (often simply called a fusion furnace, assay furnace, or muffle furnace) is a specialized high-temperature furnace used in the fire assay method to melt or “fuse” ore or concentrate samples with a flux mixture. This process allows precious metals—gold, silver, and platinum group elements (PGEs)—to collect into a lead button, separating them from the bulk of the sample matrix.

The fire assay technique is a fundamental and time-honored method in mining and metallurgy, used to accurately determine the concentration of precious metals in ore samples, metallurgical products, and environmental samples. The reliability of fire assay results directly impacts mine valuation, concentrate pricing, and downstream processing decisions.

Core Advantages

1. Precise Temperature Uniformity

Digital PID control maintains +/-1C accuracy across the entire chamber working zone, eliminating temperature gradients that compromise fire assay reproducibility. Every crucible in the furnace receives identical thermal conditions—critical for consistent assay results batch after batch.

2. 1200C Continuous High-Temperature Operation

Rated for sustained 1200C operation, the furnace handles high-refractory samples and long fusion cycles without performance degradation. Multi-layer firebrick lining and premium heating elements ensure stable thermal output over thousands of operating hours, reducing frequency of element replacement compared to competitor models.

3. Flexible Crucible Configuration

Supporting 30g to 70g standard fire assay crucibles, the DE series accommodates diverse sample weights and laboratory protocols. Larger furnace chambers accommodate bigger geometric crucible sizes and support simultaneous loading of multiple smaller crucibles in a single batch.

4. Two Controller Options: Standard vs. SCR

Choose the Standard (transformer-type) model for conventional batch operations, or the 02 Series (SCR silicon-controlled) model for precise time-proportioned temperature control—ideal for processes requiring staged heating curves or time-controlled temperature process.

5. Rapid Heat-Up and Fast Recovery

The furnace reaches 1200C from room temperature in under 70 minutes. After standard crucible changeover, target temperature is restored within 5 minutes—maximizing daily throughput for high-volume commercial laboratories.

Applications

• Gold mining laboratories — Grade control and settlement reconciliation
• Independent commercial assay laboratories — Third-party testing services for multiple mining clients
• Exploration companies — Drill core and surface sample analysis at field or regional laboratories
• Precious metal refineries — Quality control in downstream processing facilities
• Research institutions — Academic and government extractive metallurgy projects

Applicable Ore Types

• Gold ores — free-milling, refractory, and Carlin-type deposits
• Silver ores — fire assay by gravimetric or volumetric methods
• Platinum group elements (PGE) — fire assay enrichment for Pt, Pd, Rh analysis
• Copper-nickel sulfide ores — sample preparation prior to instrumental analysis
