·Good Thermal Conductivity
·Stable Thermal Shock
·Corrosion Resistance
·High Compressive Strength
·Modular Design

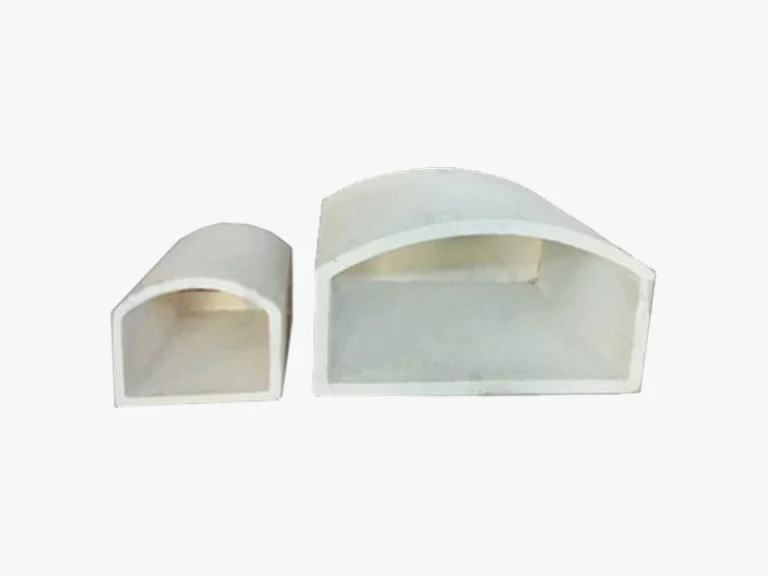

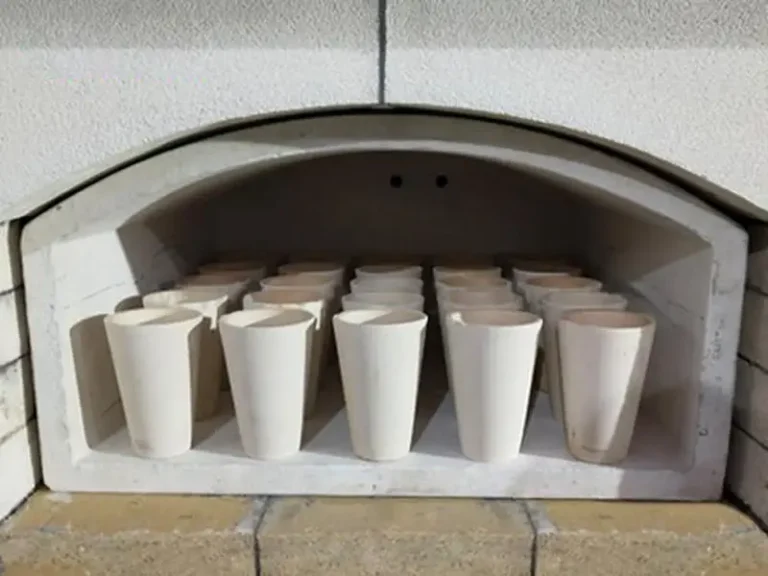

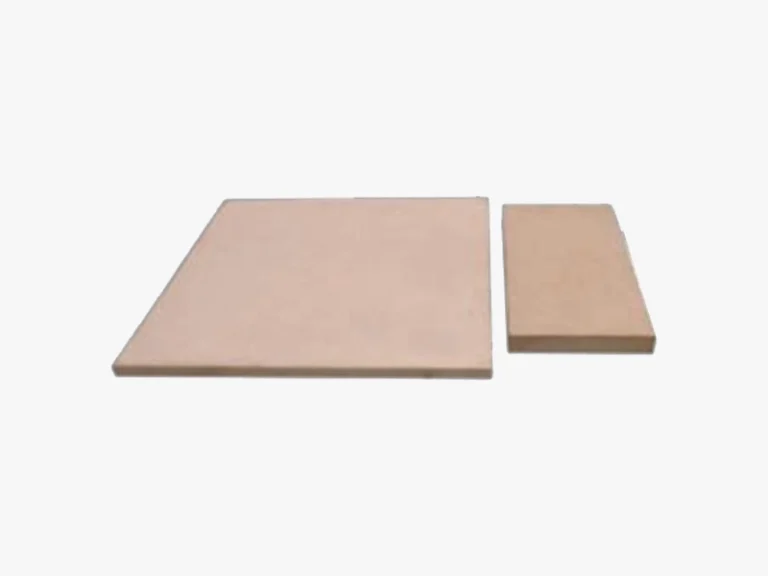

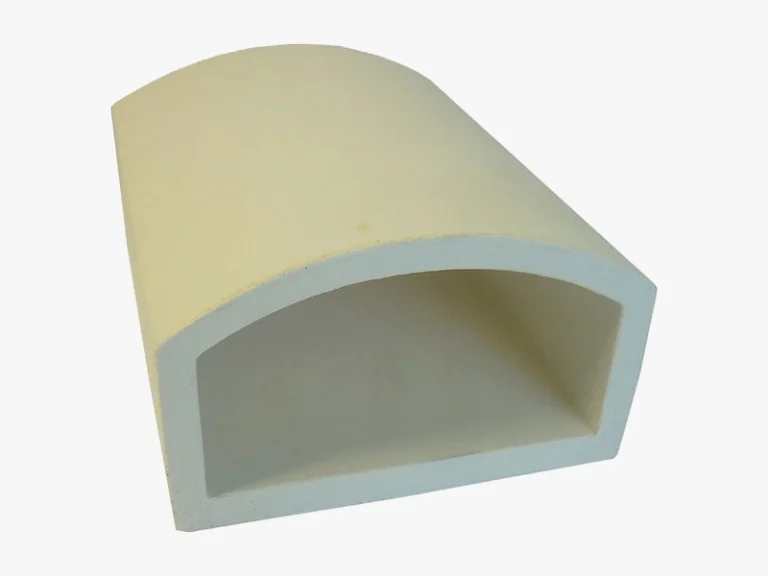

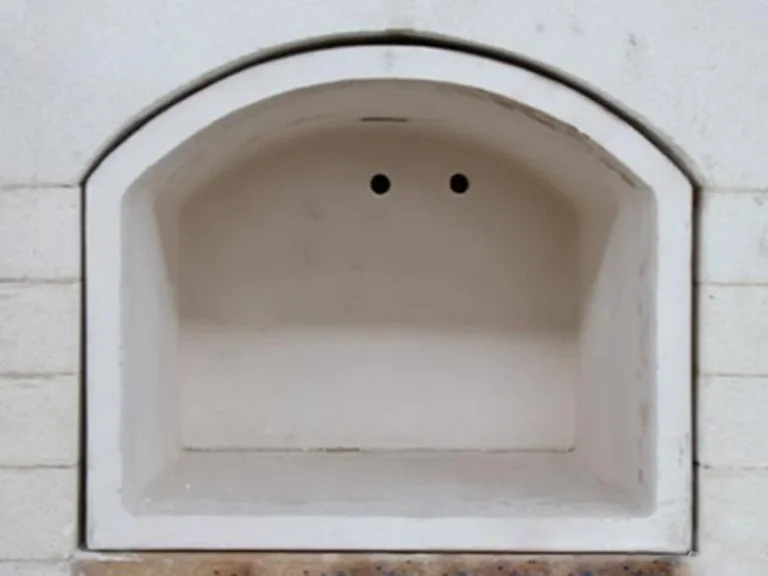

Furnace chambers and tiles are essential components in various high-temperature processes, especially in the fire assay process. They are designed to withstand extreme temperatures and chemical environments, ensuring the integrity and efficiency of the process.
Qingdao Decent Group offers various shapes of horseshoe-shaped furnace tubes, furnace tubes, electric furnace tile plates, guide rails, and large-span muffle furnaces. These are used in various heat treatment furnaces, such as muffle furnaces, enamel sintering furnaces, diffusion furnaces, and in the form of battens and refractory materials for various kilns.
·Made of silicon carbide (SiC) raw material, known for its high thermal conductivity, good thermal shock stability, and corrosion resistance.
·Modular component design allows the chamber and tile to be easily removed and replaced, reducing maintenance time and costs.
·These products can withstand rapid temperature changes without cracking or degrading, making them suitable for applications with frequent heating and cooling cycles.
·Compatible with our fire assay furnaces, they are suitable for the fire assay process.
| Sic | >70%－85% | >90%－95% |
| FE2O3 | <1.0 | <1.0 |
| Density | >2.3-2.5 g/cm3 | >2.6-2.8 g/cm3 |
| Room Temperature Pressure | >40－60 Mpa | >70－80 Mpa |
| Shrinkage after Reheating | <0.5% | <0.1% |
| 0.2Mpa Load Softening Temperature | 1500°C | 1550°C |
| Product | Model | Sizes
(mm) |
Match Furnaces | Tile Size
(mm) |
Plywood Package
(mm) |
| Chamber | 4 | 300x480x245 | DE50CF
DE50CF01 |
450X250X15 | 700X600X430
660X400X390 |
| Vent | 4 | 265x65x200 | |||
| Chamber | 5 | 535x610x350 | DE100CF
DE100CF01 |
560X480X25 | 720X435X800 |
| Vent | 5 | 475x75x250 | |||
| Chamber | 7 | 660x610x360 | DE25FF
DE25FF01 |
590X560X25 | 840X440X800 |
| Vent | 6/7 | Φ100/Φ50×380 |
To find out more about our products and solutions, please fil out the form below and one of our experts wil get back to you shortly.
