Key Advantages

  • Automated, high-capacity mixing for fire assay samples.
  • Processes up to 84 crucibles simultaneously (models DPT25, DPT50, DPT84).
  • Achieves superior sample homogeneity.
  • Features intelligent forward and reverse rotation.
  • Intuitive touch panel for time and speed control.
  • Max mixing speed of 60 rpm.
  • Enhanced safety with security lock and interlocked pneumatic door.
  • Crucible protection via plastic film and sponge-lined lid.
  • Prevents sample loss, leakage, and contamination.
  • Reduces operational noise.

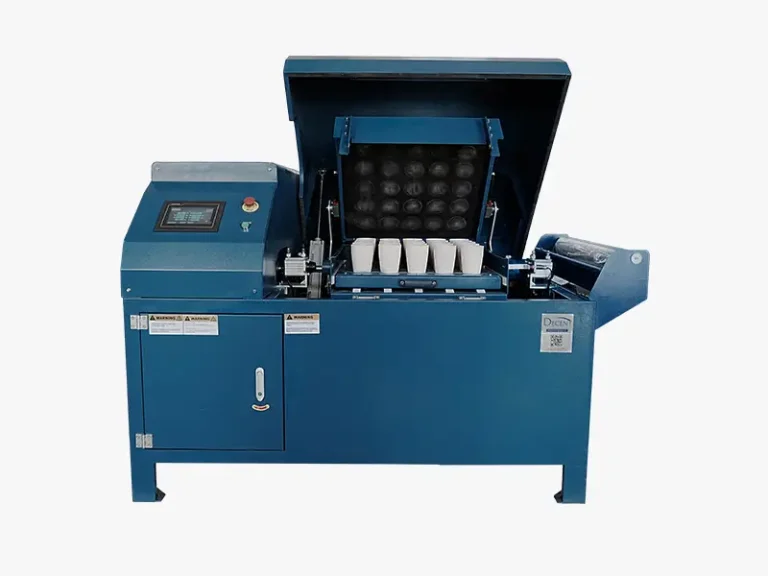

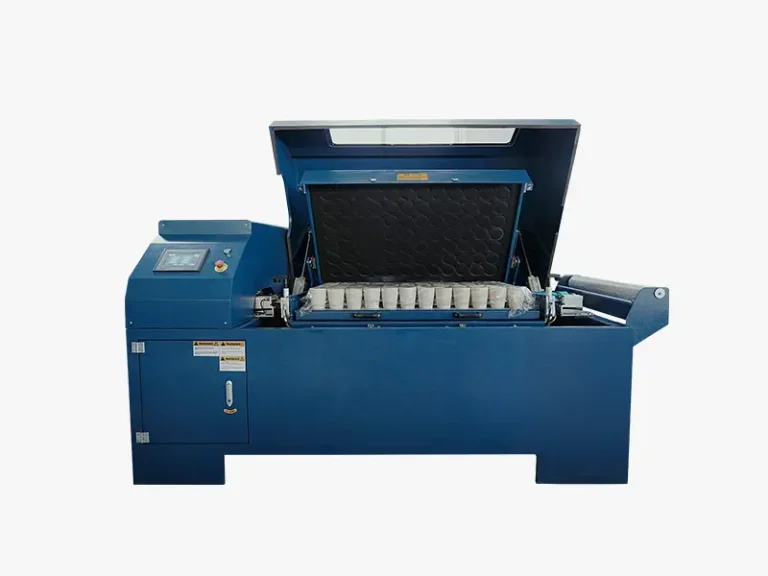

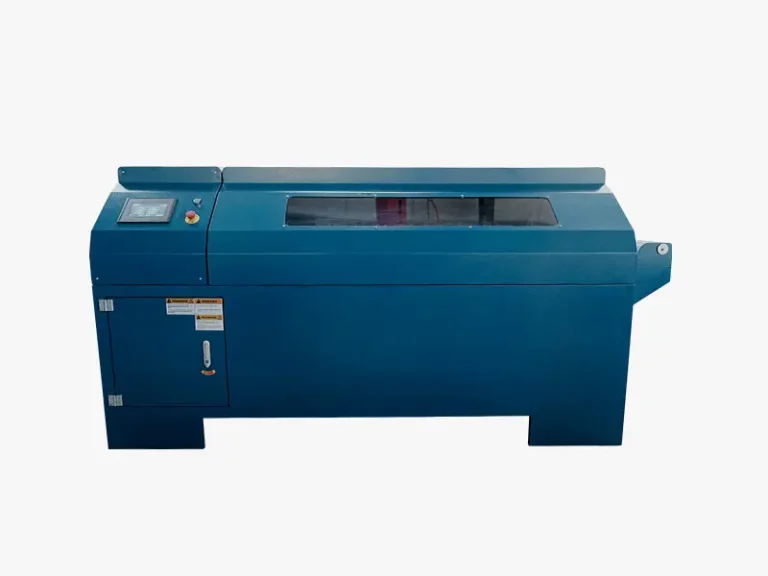

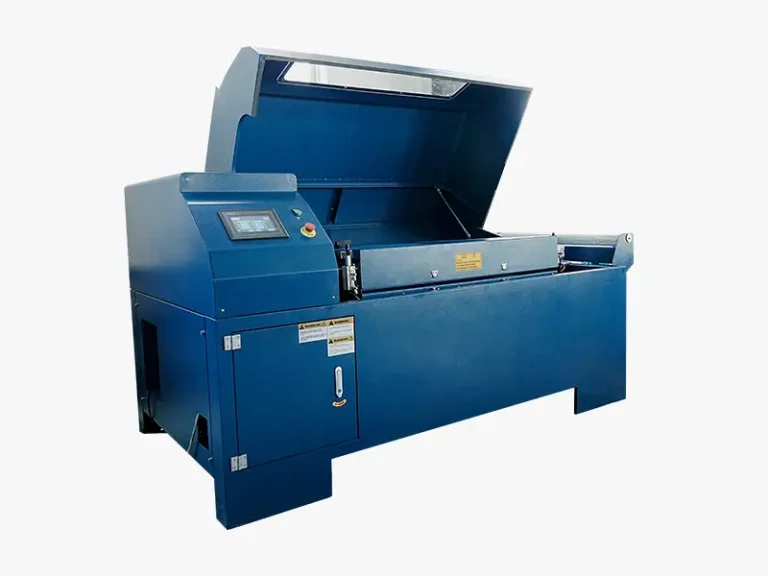

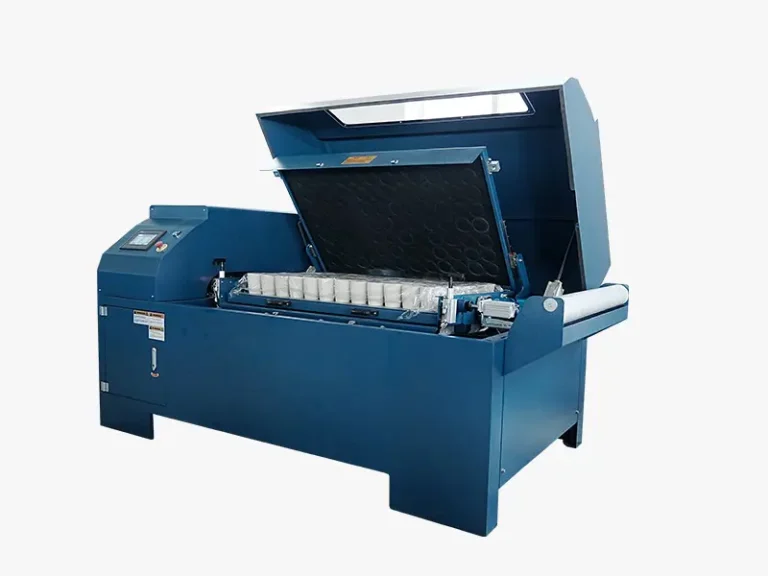

Crucible Tumbler

In the demanding world of mineral laboratories, precision and efficiency are paramount. Qingdao Decent Group Crucible Tumbler (also known as a Flux Mixer or Crucible Blender) is specifically engineered to elevate your fire assay sample preparation to new heights. This indispensable equipment automates the critical step of uniformly mixing pulverized ore samples with various fluxes in crucibles, eliminating manual inconsistencies and significantly accelerating your workflow.

Designed for high-throughput environments, DECENT Crucible Tumbler ensures every sample receives the perfect blend, guaranteeing the homogeneous charge vital for accurate and reliable precious metal analysis. From gold and silver to platinum group elements, trust DECENT to lay the foundation for superior analytical results.

Equipment Construction

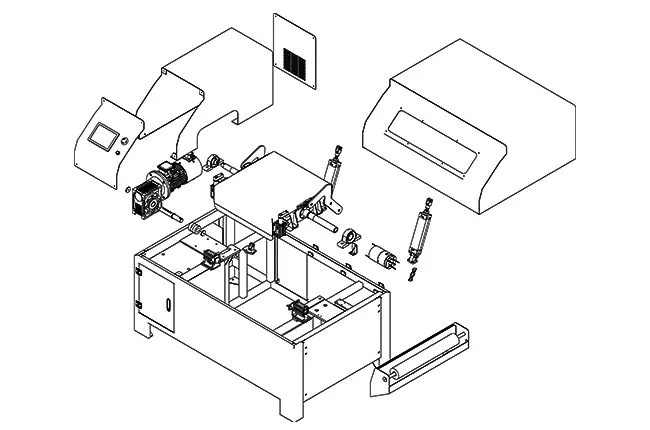

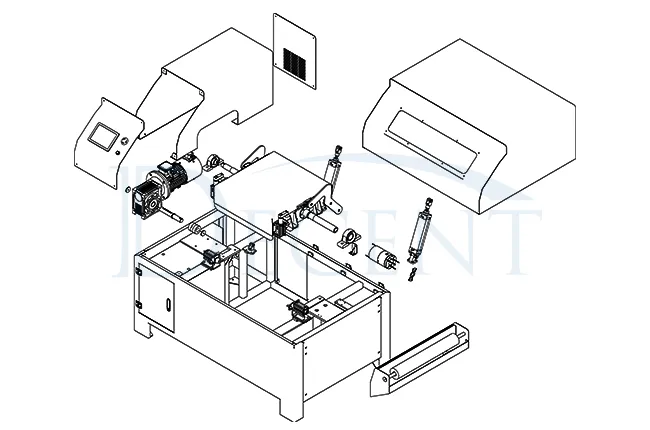

Exploded view technical drawing of the DECENT Crucible Tumbler (Mixer), showing its disassembled components including the frame, motor, control panel, and mixing mechanism.
  • Heavy-duty steel frame ensures stability.
  • Designed for vibration dampening.
  • Features a powerful gear motor.
  • Includes a worm gear reduction for precision.
  • Ensures exact speed control and robust torque.
  • Integrated control panel protects sensitive electronics.
  • Requires pneumatic air pressure (0.4-0.5 Mpa).
  • Durable design for continuous laboratory use.

Technical Parameters

Model Matching Crucible Crucible Qty Setting Time Setting Speed Voltage Frequency Rated Power Pneumatic Door Dimensions (mm)
DPT25 40G 50G 55G 25 pcs Max. 60 Minutes Max. 60 rpm 380V 3Phase 50 Hz 2.5 KW Suggest Air Pressure 0.4-0.5 Mpa 1650*1230*1105(L*H*D)
DPT50 40G 50G 55G 50 pcs Max. 60 Minutes Max. 60 rpm 380V 3Phase 50 Hz 2.5 KW Suggest Air Pressure 0.4-0.5 Mpa 1695*1130*1235(L*H*D)
DPT84 40G 50G 55G 84 pcs Max. 60 Minutes Max. 60 rpm 380V 3Phase 50 Hz 3.0 KW Suggest Air Pressure 0.4-0.5 Mpa 2600*1270*1250(L*H*D)

Related Products

DECENT Automatic Flux Dispenser for automated fire assay sample preparation
Automatic Flux Dispenser System
The automatic flux dispenser system is a device that presets the dosage and accurately distributes the...

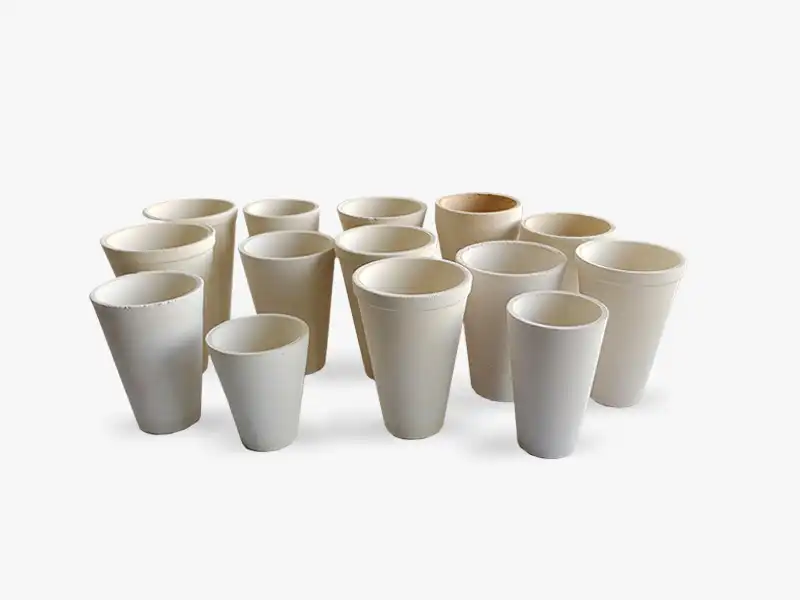

DECENT Clay Crucible for fire assay melting
