Continuous Ring Mill Combo With RSD DPRC08

Key Advantages

• Integrated Workflow: Combines continuous grinding and accurate rotary splitting in one compact unit. Unlike traditional mills, this continuous ring mill operates without batch interruptions.
• Robust & Reliable: Durable components for long-term stability; less maintenance.
• High Throughput: Processes 1 kg sample to analytical fineness in 3 minutes.
• Dust Extraction Streamlining: Built-in ducting allows easier connection to external dust extraction system for quick dust collection and head cleaning.
• Dust Bin Optimization: Built-in large particle capturing bin, easy to clean and prolong the lifespan of dust extraction system.

Continuous Ring Mill Combo With RSD DPRC08

Name: Continuous Ring Mill Combo With RSD DPRC08
Brand: Qingdao Decent Group
Availability: OutOfStock

The continuous ring mill DPRC08 by DECENT integrates high-speed pulverization and precision rotary splitting for mineral, rock, and soil samples. Engineered by Qingdao Decent Group, this lab system processes up to 1 kg in 3 minutes with adjustable split ratios (5%–30%) and built-in dust extraction—ideal for geology, mining, and environmental testing labs.

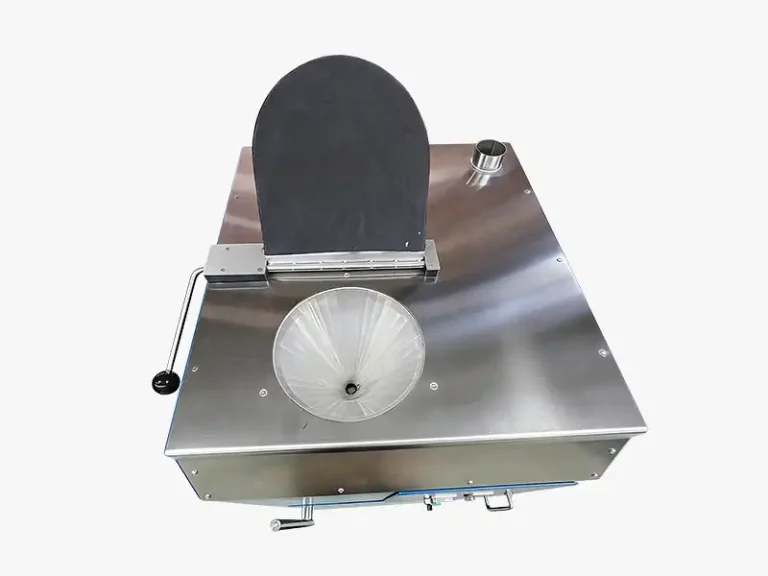

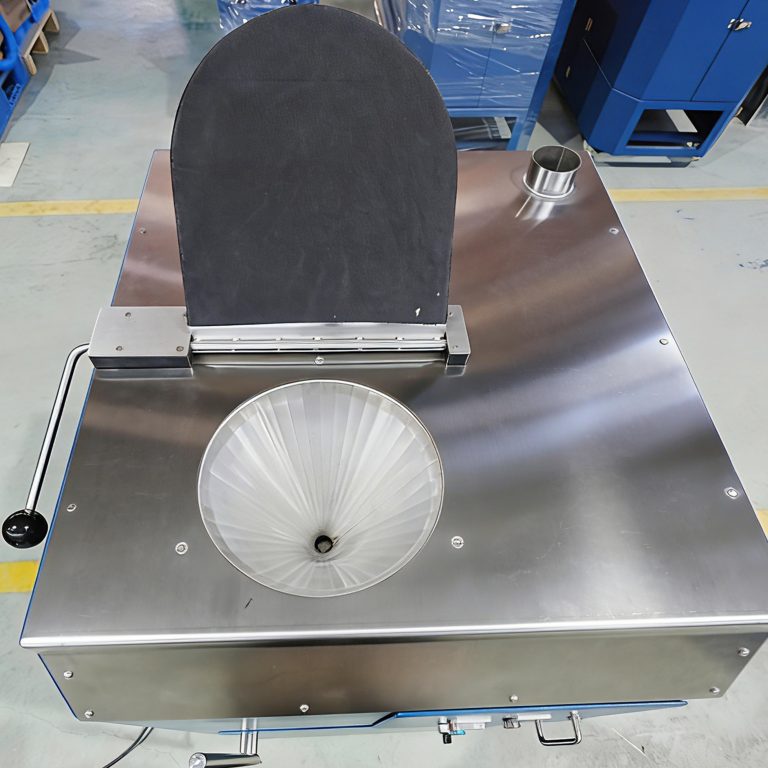

An integrated ring mill system for rapid pulverization and precise splitting of mineral, rock, and soil samples. It includes a vibratory feeder and precision rotating splitter to streamline sample preparation.

Designed for easy maintenance and cleaning, it operates via continuous flow-through and connects to dust extraction systems for a clean, safe lab environment.

Chat Now

Equipment Construction

Integrated Grinding & Rotary Division
Combines a continuous ring mill and an RSD (Rotary Sample Divider) in one sealed unit—no intermediate handling required.
Continuous Ring Mill Chamber
Material is fed continuously and ground to <200 µm by high-speed rotating rings against a stationary liner, ensuring uniform fineness.

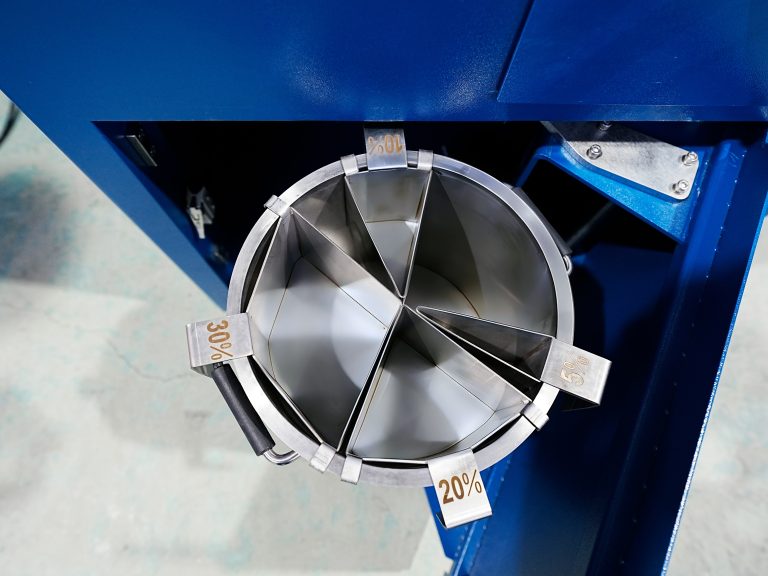

RSD Rotary Sample Divider Mechanism
Ground powder flows vertically into the RSD chamber, where a motor-driven rotating collection disk with multiple evenly spaced chutes rotates beneath the falling stream. At precise intervals, each chute passes under the stream, capturing a small, representative increment.
Representative Subsampling Principle
The RSD collects dozens to hundreds of increments per run, forming a composite subsample that accurately reflects the entire batch—fully compliant with ISO 139 and ISO 18283.
Sealed & Dust-Controlled System
Entire workflow—from inlet to final sample container—is enclosed, with built-in dust extraction ports to maintain lab air quality.

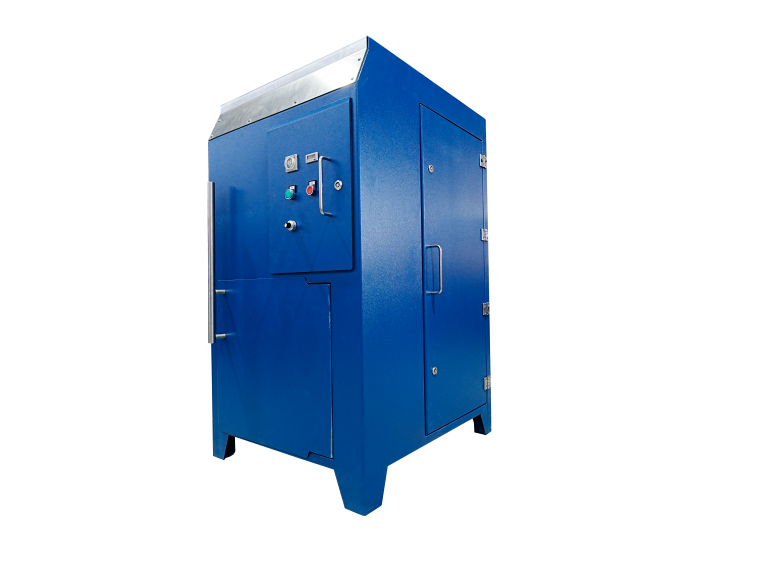

Tool-Free Access & Easy Cleaning
Quick-release panels allow fast access to grinding chamber and RSD disk for cleaning between samples.

Technical Parameters

Parameter	Specification
Power Supply	380V, 50Hz, on request/3ph
Rated Power	1.5 kW
Feed Size	Recommended: 2–5mm, Max: 8mm
Batch Capacity	≤ 8 kg
Output Particle Size	0.15mm (≥90%)
Grinding Efficiency	~1000g in 3 minutes
Dust Port Diameter	75 mm (Outer Diameter)
Standard Split Ratios	5%, 10%, 20%, 30%, or Customizable
Equipment Dimensions (LWH)	910 x 940 x 1390 mm
Packing Dimensions (LWH)	1030 x 1060 x 1590 mm
Net Weight	420 kg
Shipping Weight	460kg
