RSD

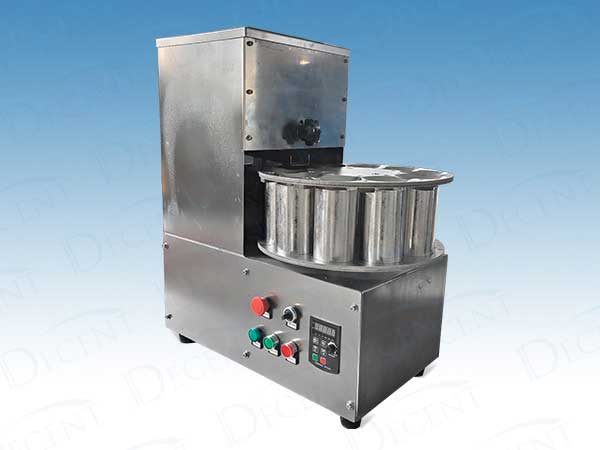

Benchtop Rotary Sample Divider DRSD05

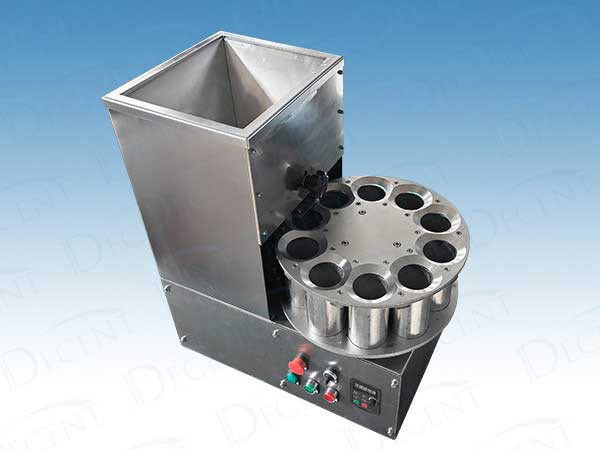

Benchtop Rotary Sample Divider DRSD05 side view

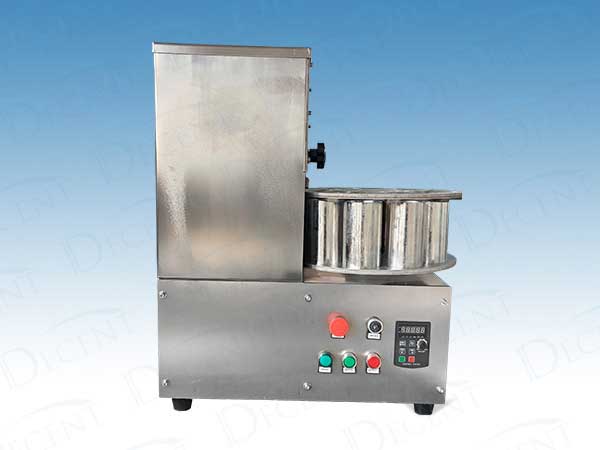

Benchtop Rotary Sample Divider DRSD05 front view

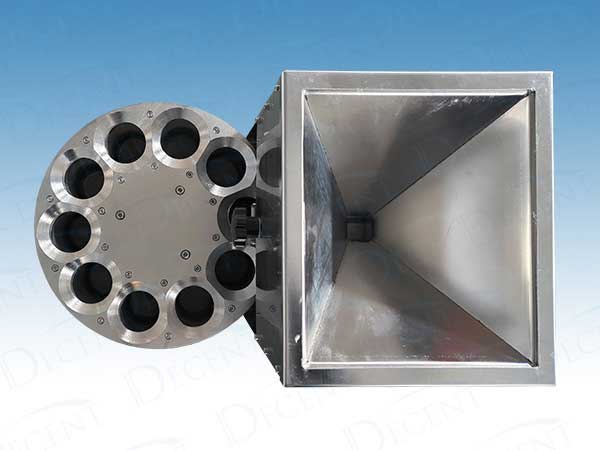

Benchtop Rotary Sample Divider DRSD05 top view

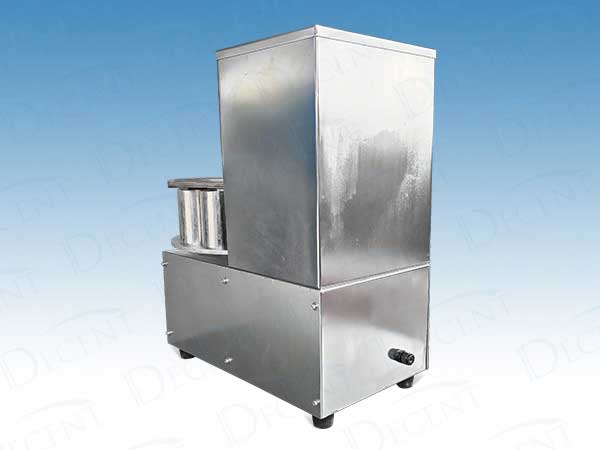

Benchtop Rotary Sample Divider DRSD05 back view
Benchtop Rotary Sample Divider DRSD05
Benchtop Rotary Sample Divider DRSD05 side view
Benchtop Rotary Sample Divider DRSD05 front view
Benchtop Rotary Sample Divider DRSD05 top view
Benchtop Rotary Sample Divider DRSD05 back view

Benchtop Rotary Sample Divider DRSD05

Qingdao Decent Group Benchtop Rotary Sample Divider DRSD05 is an essential benchtop sample splitter device for laboratories. It divides the test sample into 10 representative samples with high subdivision accuracy. The DRSD05 is designed as a simple sample dividing solution and also an industrial size RSD system.

Product Details

Simple sample dividing solution and industry size RSD system

Qingdao Decent Group Benchtop Rotary Sample Divider DRSD05 is an essential benchtop sample splitter device for laboratories. It divides the test sample into 10 representative samples with high subdivision accuracy.

Benchtop Rotary Sample Divider DRSD05 is suitable for a wide range of applications in research laboratories, mine and port sampling laboratories, and other industrial environments where representative sub sampling is required.

The benchtop mill DRSD05 is designed as a simple sample dividing solution. The benchtop mill uses stainless steel hopper, vibratory feeder and buckets. It is simple to operate, easy to clean and avoids sample contamination. Constant rotation speeds of the receiving buckets improve sample reduction accuracy, resulting in consistent results. And it is simple to operate and capable of handling large volumes of samples continuously.

The DRSD05 is also an industrial size RSD system. The 5L hopper can process the sample continuously and divide the sample into 10 equal parts precisely. Each bucket can hold 6L. it is capable of handling large volumes of up to 60L of samples at a time. Each bucket is very easy to remove.

[ Main Benefits ]

▪ Simple and safe to use.

▪ Provides accurate sampling

▪ Increases operational efficiency

• Durable, reliable and easy to clean and maintain

[ DRSD05 Technical Parameter ]

Hopper Capacity Bucket Capacity Bucket Quantiry Division Granularity Division Rate Power Voltage Speed Overall Dimension
5L 6L/pc 10 pcs 3mm-13mm 1/10 1.1KW 220V/50Hz/single 6-60RPM 700mm x 410mm x 740mm
