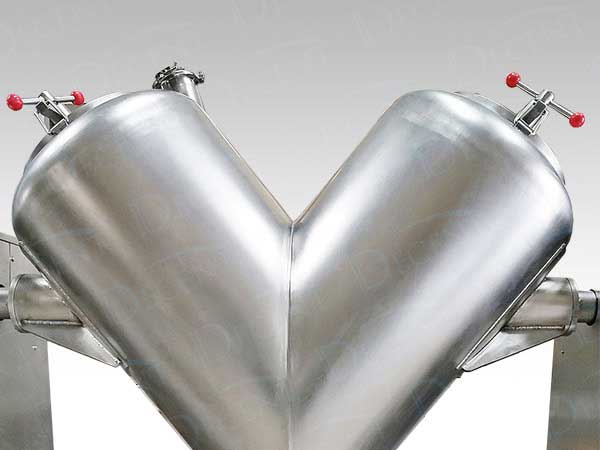

v type mixer details view
v type mixer
v type mixer

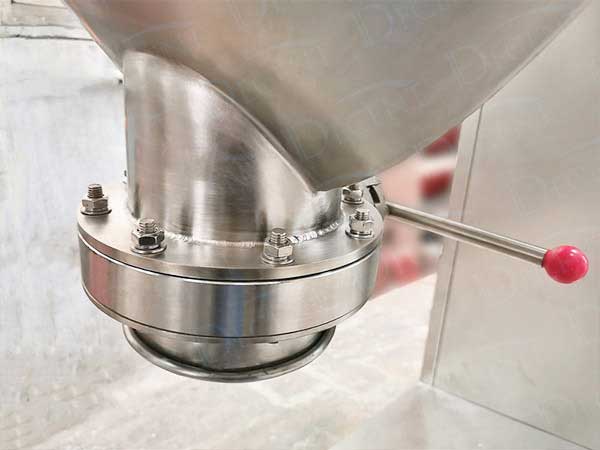

v type mixer deail view 2
v type mixer
v type mixer details view
v type mixer
v type mixer
v type mixer deail view 2

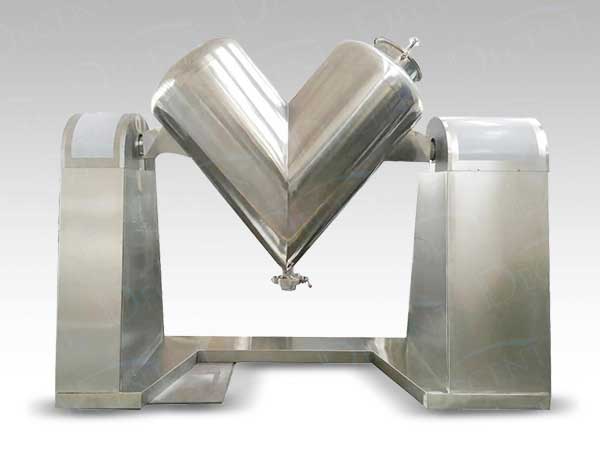

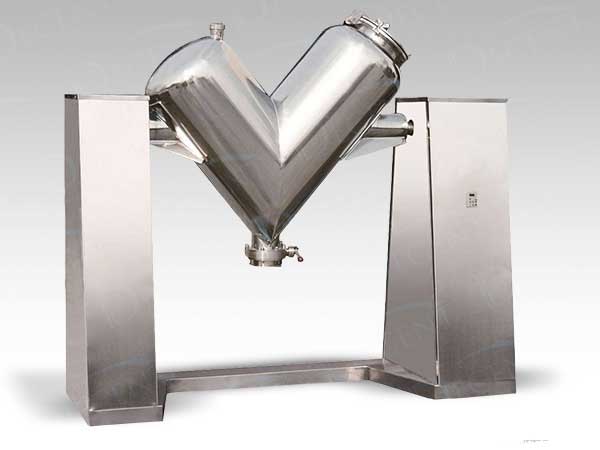

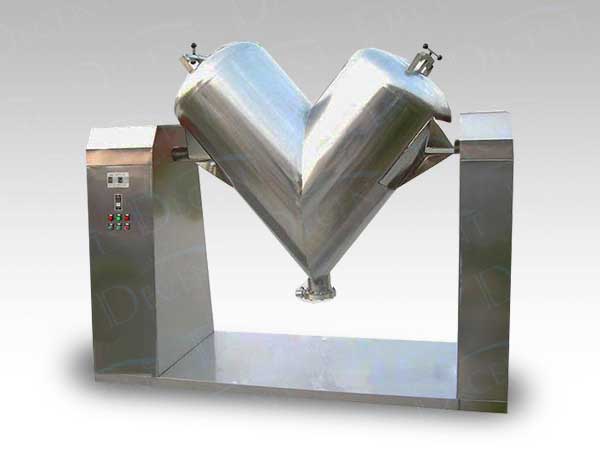

V Type Mixer

Qingdao Decent Group V Type Mixer is suitable for mixing dry powder and granular materials in mines, pharmaceuticals, chemicals, and food. The mixing barrel of this machine has a unique structure, uniform mixing, high efficiency, and no material accumulation. The whole machine is simple in structure and easy to operate. The outer surface and the material contact part are made of high-quality stainless steel, which is beautiful in appearance and easy to maintain and clean.

Product Details

V-type mixer with uniform mixing and no accumulation

[ BRIEF INTRODUCTION ]

Qingdao Decent Group V Type Mixer is suitable for mixing dry powder and granular materials in mines, pharmaceuticals, chemicals, and food. The mixing barrel of this machine has a unique structure, uniform mixing, high efficiency, and no material accumulation. The whole machine is simple in structure and easy to operate. The outer surface and the material contact part are made of high-quality stainless steel, which is beautiful in appearance and easy to maintain and clean.

Qingdao Decent Group V Type Mixer has two types: high-efficiency mixing type and ordinary mixing type. The high-efficiency type mixer mainly mixes finer powder or materials with a small content of the main ingredient. Ordinary mixer is mainly suitable for general materials or enterprises with larger output.

[ WORKING PRINCIPLE ]

Qingdao Decent Group V Type Mixer is equipped with a motor and a reducer at one end. The power of the motor is transmitted to the reducer through a belt. The reducer drives the V-type barrel to continuously run, so that the materials in the barrel are mixed upward, downward, left and right.

[ UNIQUE FEATURES ]

1. The cylinder body is made of 2.5mm 304-2B stainless steel material, the outsourcing is made of 1.2mm 304-2B stainless steel material, and the bracket is made of 5# channel steel.

2. The discharge valve is made of all stainless steel, and the connection is sealed with a shaped silicone rubber material to ensure the sealing effect of the machine when it is working.

3. The feed inlet adopts the optional quick opening structure, which makes the user easy to operate when feeding and cleaning.

4. Two stainless steel lead plates are welded at the joints on both sides of the cylinder body and polished, so that there is no dead corner in the cylinder body to ensure that the mixer can achieve the desired effect during mixing and cleaning.

5. There is a forced stirring device in the mixer.

[ PRODUCT VIDEO ]

[ TECHNICAL PARAMETERS ]

Model No.

DVM25

DVM50

DVM100

DVM150

DVM200

DVM300

Barrel Volume (L)

25

50

100

150

200

300

Working Volume (L)

10

20

40

70

100

150

Power (kW)

0.55

0.55

0.75

1.1

1.5

2.2

Overall Size (m)

1.1x0.4x1

1.42x0.6x1.16

1.5x0.6x1.2

1.8x0.7x1.6

2.1x0.7x1.6

2.6x0.8x2

Mixing Time (minute)

8-20

8-20

8-20

10-20

15-20

15-20
