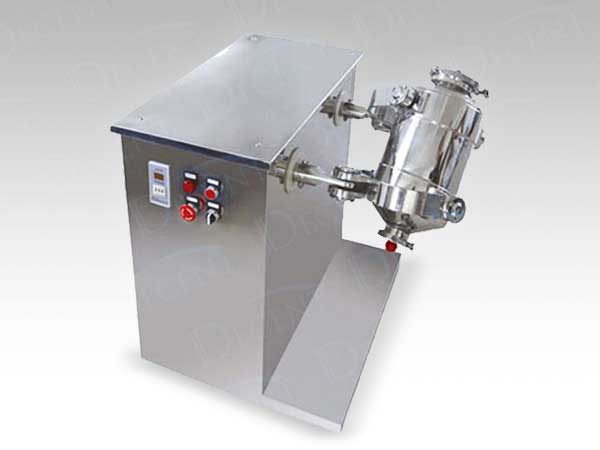

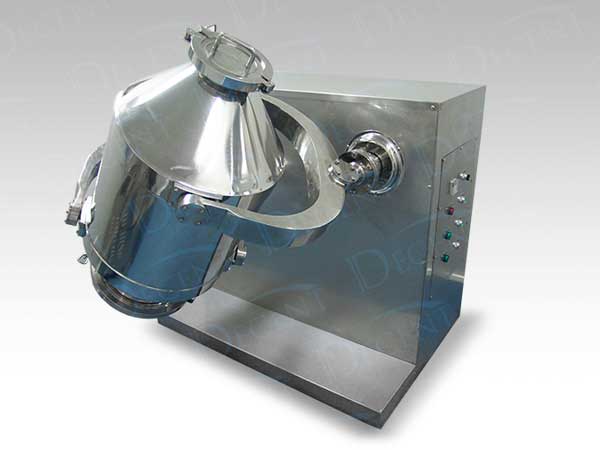

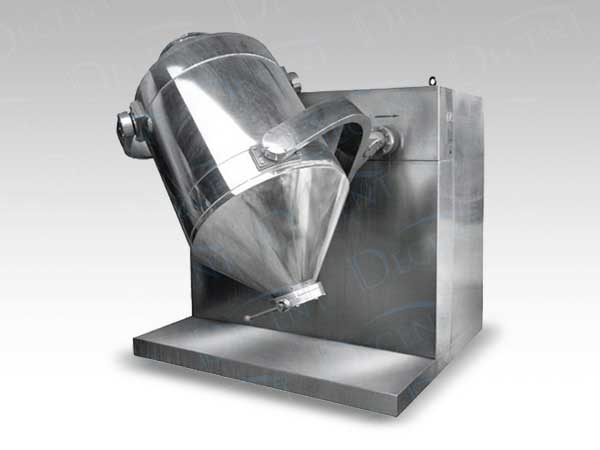

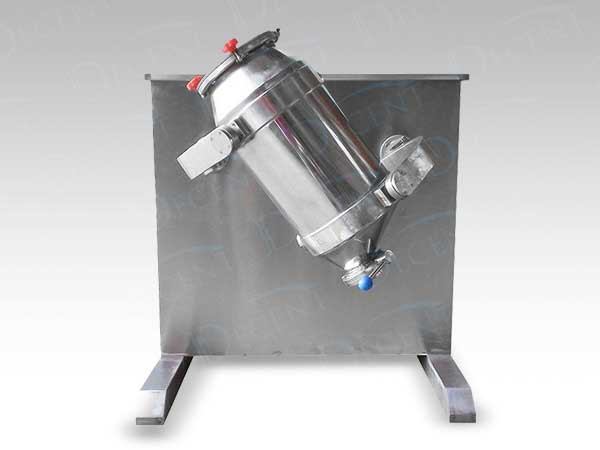

The three-dimensional mixer is used for high uniformity mixing of powdery and granular materials in pharmaceuticals, chemicals, food, electronics, machinery, mining and metallurgy.

Product Details

Three dimensional mixer with mixing rate greater than 99.9%

[ BRIEF INTRODUCTION ]

The three-dimensional mixer is used for high uniformity mixing of powdery and granular materials in pharmaceuticals, chemicals, food, electronics, machinery, mining and metallurgy.

The mixing barrel of this machine has no centrifugal force, no specific gravity segregation, stratification, and accumulation. The weight ratio of each component can be very different, and the mixing rate is more than 99.9%. It is one of the current various mixers. More ideal product.

The cylinder body has a large charging rate, up to 80%, with high efficiency and short mixing time.

[ Working Principle ]

Driven by the drive shaft, the loaded cylinder makes repeated translation, rotation, and tumbling motions, which promotes the three-way compound movement of the material along the cylinder in the ring, radial and axial directions, thereby realizing a variety of materials The mutual flow, diffusion, accumulation and doping of each other can achieve the purpose of uniform mixing.

[ Unique Features ]

The charging rate of the cylinder is large, up to 80~90%.

The structure of the cylinder is compact, and the loading and unloading are convenient and intuitive.

The material mixing uniformity is high, the mixing time is short, and the energy consumption is low.

Made of stainless steel, beautiful appearance, can be washed, it is convenient for users to clear the field in mass production.

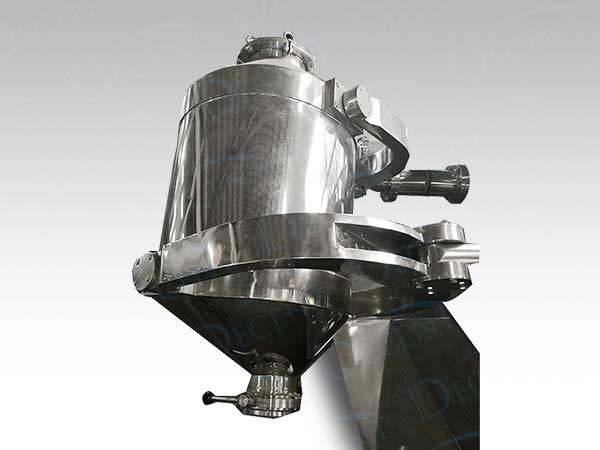

Each part of the barrel is over-arc, and it has been precision polished through multiple processes to achieve no dead ends, no stagnation, easy discharge, and easy cleaning.

[ PRODUCT VIDEO ]

[ TECHNICAL PARAMETERS ]

Model No.

D3M5

D3M10

D3M15

Barrel Volume

5L

10L

15L

Barrel Speed

14rpm

12rpm

12rpm

Max. Load Volume

3.5L

7L

10.5L

Mixing Time

6-12 minutes

6-12 minutes

6-12 minutes

Weight

90kgs

100kgs

120kgs

Overall Dimension

760x700x800mm

760x700x800mm

850x750x850mm
