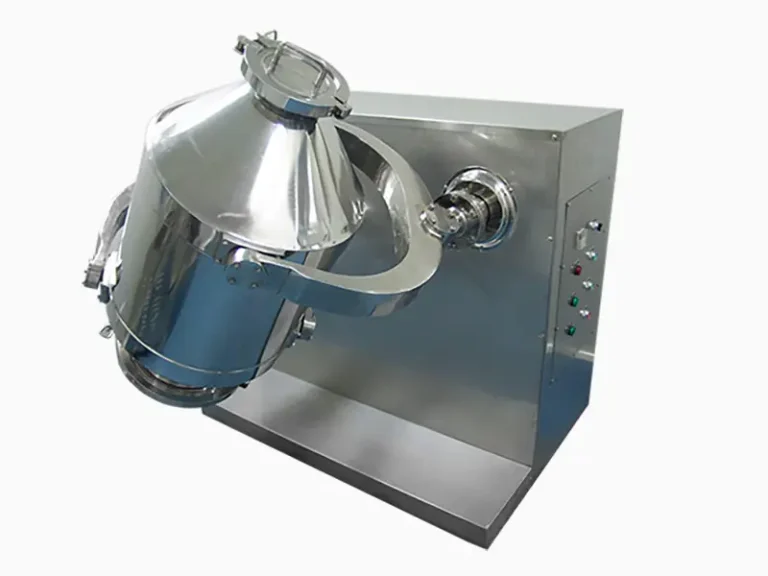

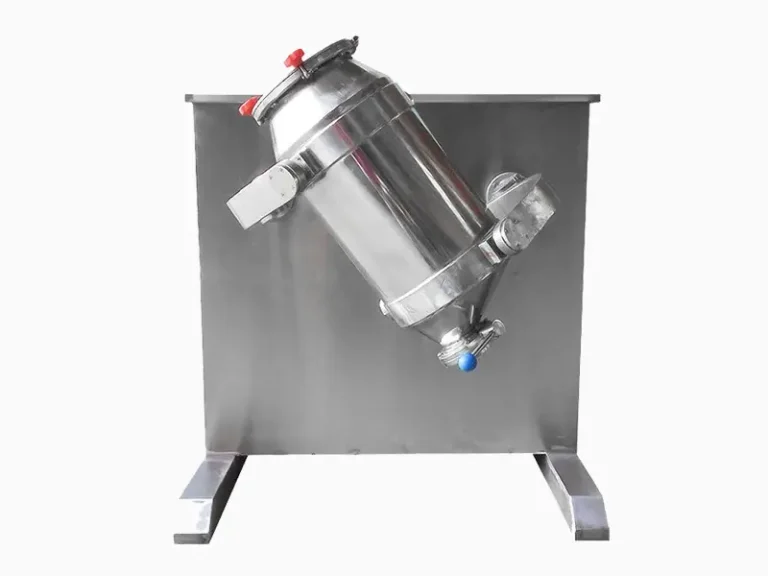

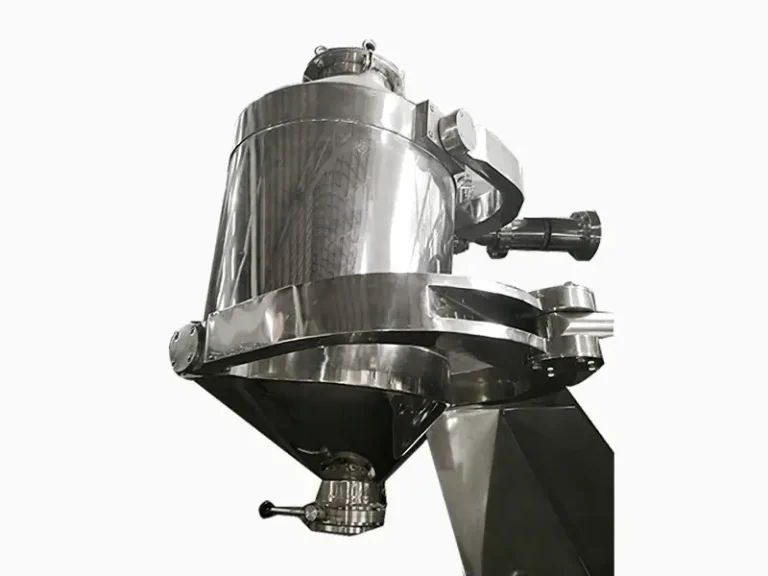

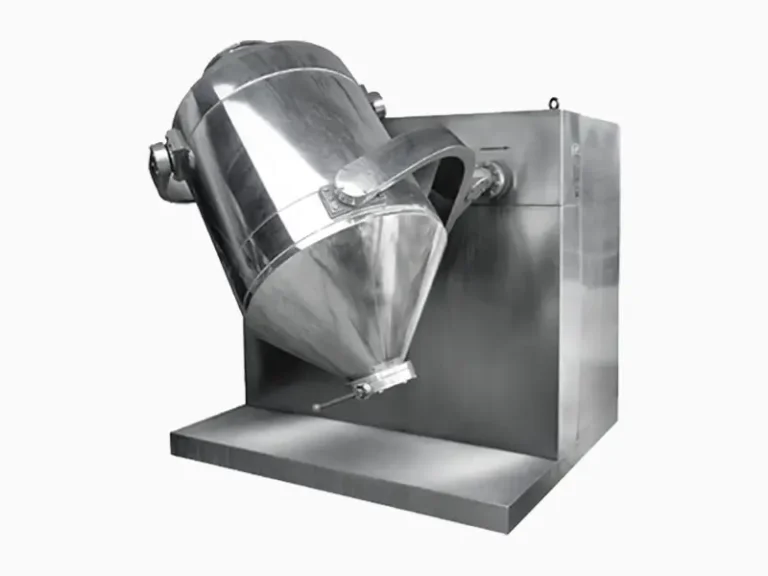

Three-Dimensional Mixer

Key Advantages

Achieves highly uniform and homogeneous mixing.
Eliminates dead corners and material accumulation.
Suitable for dry powders and granular materials.
Handles materials with different specific gravities and particle sizes.
Features a gentle mixing action, preserving particle integrity.
Offers high mixing efficiency and short blending times.
Ensures complete material discharge with no residue.
Operates quietly with low power consumption.

Three-Dimensional Mixer

Achieving perfect homogeneity in powder and granular mixing is a constant challenge across pharmaceuticals, food, and chemical industries. Traditional mixers often struggle with material segregation, dead corners, and inconsistent blending, leading to compromised product quality and wasted resources. The demand for precise, uniform mixtures necessitates advanced blending solutions.

The DECENT Three-Dimensional Mixer provides an exceptional solution, employing a unique multi-directional motion principle that ensures thorough blending without centrifugal effects or material accumulation. This innovative design delivers superior homogeneity, even for materials with varying densities and particle sizes. Experience shorter mixing times, lower energy consumption, and complete material discharge with a DECENT Three-Dimensional Mixer, setting a new standard for efficient and reliable powder blending.

Chat Now

Equipment Construction

Mixing Barrel: Designed for multi-directional movement in three-dimensional space.
Material Contact Parts: Made from high-quality stainless steel, often mirror-polished internally.
Design: Unique barrel design with no dead corners, preventing contamination.
Operation: Utilizes a complex motion combining rotation, translation, and tumbling.
Sealing: Materials are mixed in a sealed environment, preventing dust pollution.
Discharge: Gravity-assisted discharge ensures no leftover materials.
Drive System: Includes motor, transmission chain, reducer system, and frequency converter for precise control.
Safety: Often includes a safety cage or protective guarding around moving parts.
Compliance: Designed to meet hygienic standards (e.g., GMP for pharmaceutical applications).

Technical Parameters

Model	D3M5	D3M10	D3M15
Vessel Volume(L)	5	10	15
Moter Power(kW)	0.55	0.75	1.1
Mixing Rotation(rpm)	18	16	16
Wight(kgs)	80	100	120
Dimension(mm)	650x580x560	750x650x700	850x750x800
Max. Mixing Volume	70% of the vessel volume, not limited by the material’s specific gravity
Mixing Time(min)	6-12
