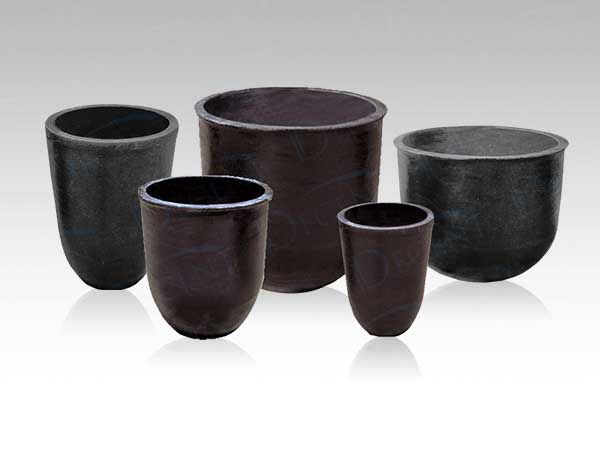

Silicon Carbide Graphite Crucible 1

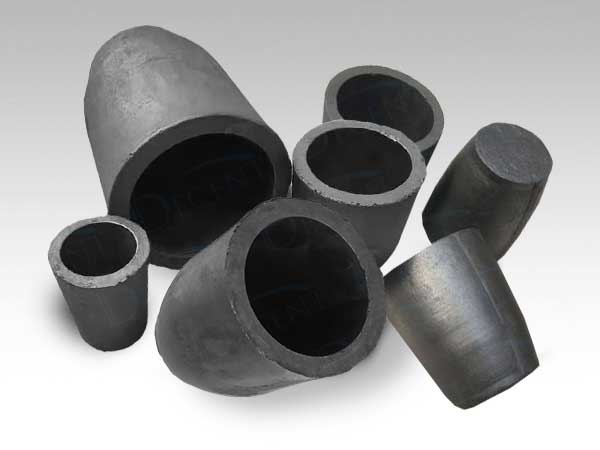

Silicon Carbide Graphite Crucible 2

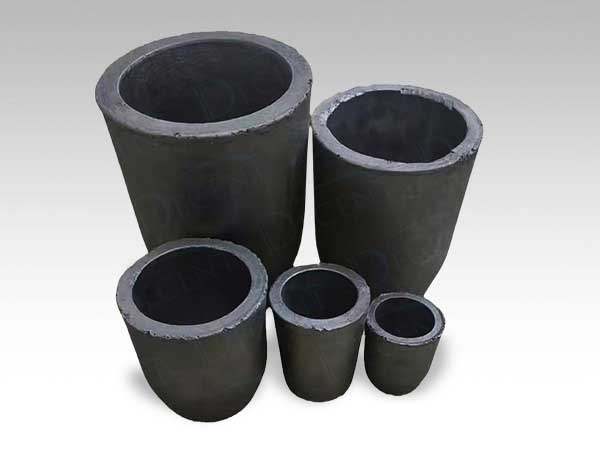

Silicon Carbide Graphite Crucible 3
Silicon Carbide Graphite Crucible 4
Silicon Carbide Graphite Crucible 5
Silicon Carbide Graphite Crucible 1
Silicon Carbide Graphite Crucible 2
Silicon Carbide Graphite Crucible 3
Silicon Carbide Graphite Crucible 4
Silicon Carbide Graphite Crucible 5

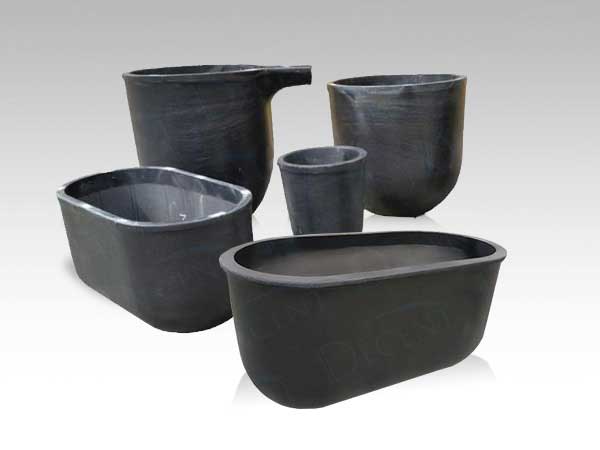

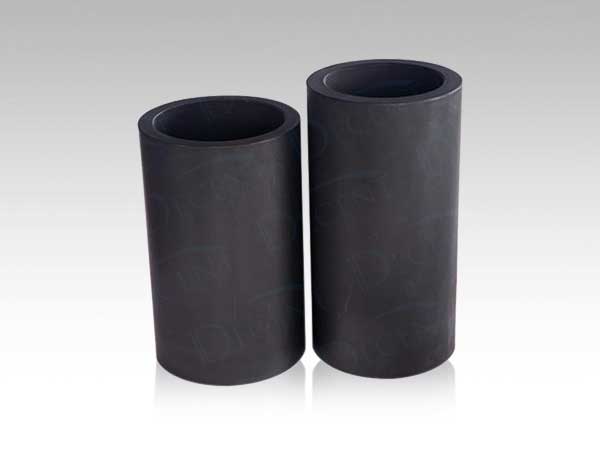

Silicon Carbide Graphite Crucible

Qingdao Decent Group has developed a new generation of high-quality silicon carbide graphite crucibles by using cutting-edge isostatic pressing crucible molding equipment, selecting the best refractory materials, and utilizing high-tech formulas. We supply silicon carbide graphite crucibles with features such as high density, high temperature resistance, quick heat transfer, acid and alkali corrosion resistance, high temperature strength, and high resistance to oxidation. In comparison to clay graphite crucibles, it has a three to five times longer service life.

Product Details

Crafted with the best refractory materials and high-tech formulas

Qingdao Decent Group has developed a new generation of high-quality silicon carbide graphite crucibles by using cutting-edge isostatic pressing crucible molding equipment, selecting the best refractory materials, and utilizing high-tech formulas.

We supply silicon carbide graphite crucibles with features such as high density, high temperature resistance, quick heat transfer, acid and alkali corrosion resistance, high temperature strength, and high resistance to oxidation. In comparison to clay graphite crucibles, it has a three to five times longer service life.

Types of furnaces supported: resistance furnace, medium frequency electric furnace, electromagnetic induction furnace, biological particle furnace, gas furnace, coke furnace, oil furnace, gas generator, etc.

Application areas: melting gold, silver, copper, aluminum, tin, lead, zinc, and several non-ferrous metal alloys.

[ Advanced Features ]

• The high density of graphite crucible makes the crucible have the best thermal conductivity

• The graphite crucible has a special glaze layer and dense molding materials, which greatly improves the corrosion resistance of the product and prolongs its service life

• The graphite components in the graphite crucible are all natural graphite, which has very good thermal conductivity. After the graphite crucible is heated, it should not be placed on a cold metal table immediately to prevent it from cracking due to rapid cooling.

[ Technical Parameters ]

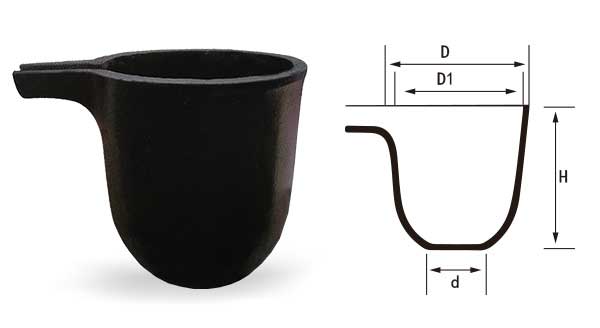

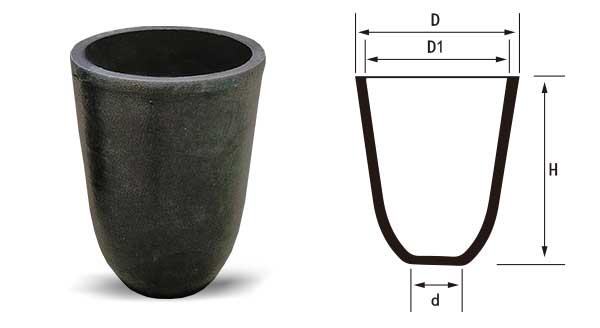

graphite crucible drawing 1

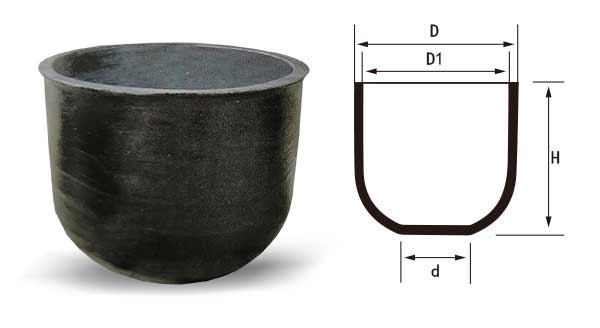

graphite crucible drawing 2

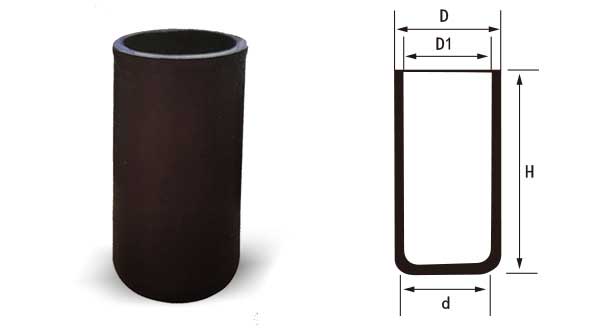

graphite crucible drawing 3

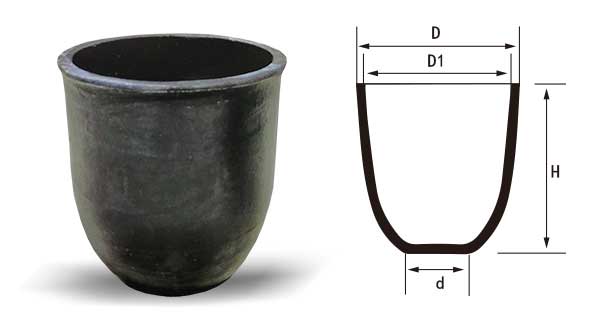

graphite crucible drawing 4

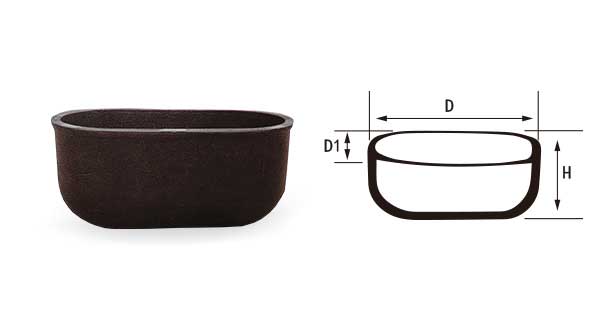

graphite crucible drawing 5
graphite crucible drawing 6

Specification

Up Outside Diameter - D

(mm)

Up Inside Diameter - D1

(mm)

Bottom Outside Diameter - d

(mm)

Overall height - H

(mm)

10 142 110 90 180
30 222 180 153 295
40 235 195 170 285
80 295 250 170 365
100 340 280 200 365
120 340 285 170 390
150 370 310 150 452
200-1 400 345 190 510
200-2 380 303 270 490
250 445 380 220 565
300-1 460 390 240 595
300-2 530 470 340 530
350 480 410 260 633
370 530 470 340 570
400 520 455 250 665
450 520 460 282 765
463 590 522 340 600
480 510 436 280 740
500 535 465 280 725
530 590 525 340 630
550 540 465 290 780
593 620 545 360 610
600-1 560 470 410 810
600-2 590 527 340 650
650 620 550 360 630
790 620 555 360 690
800-1 630 550 290 720
800-2 650 570 330 650
802 620 558 360 710
820 710 615 340 530
910 710 622 340 600
950 710 614 340 660
1000-1 638 570 350 790
1000-2 616 538 420 820
1000-3 713 620 340 700
1050 715 615 450 730
1200 715 618 450 750
1250 670 575 300 870
1300-1 650 570 475 1000
1300-2 720 620 450 800
1400-1 720 627 450 890
1400-2 750 630 450 1200
1550 780 680 340 750
1800 780 682 400 900
2100 855 775 350 835
2250 875 785 350 880
2300 880 775 350 1000
2600 900 790 360 1150
5000 1050 930 350 1320

[ Maintenance and storage ]

Graphite crucibles should be protected from moisture. Moisture is the most fearsome enemy of graphite crucibles, which will negatively affect their quality. Using damp crucibles will result in cracks, bursts, falling sides, and even industrial accidents, leading to loss of molten metal. As a result, graphite crucibles must be protected from moisture when stored and used.

Graphite crucibles should be stored in a dry warehouse that is well ventilated and kept between 5°C and 25°C with a relative humidity of 50-60%. It is not recommended to store the crucible on brick soil or cement floor to avoid moisture. The bulk graphite crucibles should be placed on a wooden shelf, ideally 25 to 30 cm from the ground. For the whole package packed in wooden boxes, wicker baskets or straw bags, the stacks should be padded with sleepers and at least 20 cm from the ground. A layer of linoleum on the sleepers provides better moisture insulation. It is necessary to stack the stack for a period of time, and then dump the lower layer on top of the upper layer, ideally so that the upper and lower layers are laid next to each other. The stacking time interval should not be too long. Generally, stacking should be done once every two months. If the ground is not damp, the stacking can be stacked once every three months. In short, the good moisture-proof effect can only be achieved by frequent piling.
