Pulverizing Bowls

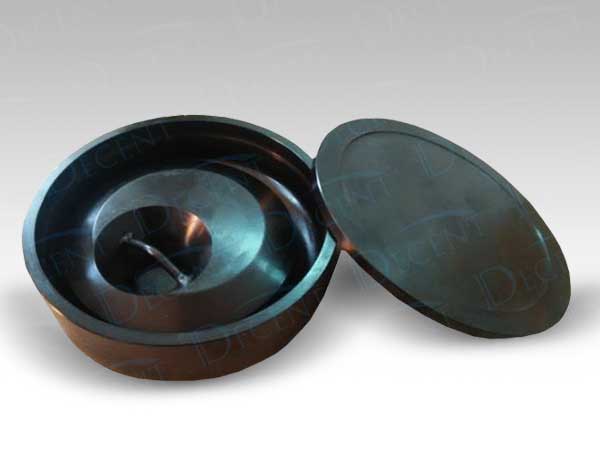

Pulverizing bowl: also called pulverising mill grinding bowl, pulverizer mill bowl. It is a grinder that grinds coarse material into fine powder. When working, put the grinding bowl into the laboratory sample pulverizer or vibration grinder card slot. The motor drives the grinding bowl to eccentrically vibrate. After 2-6 minutes of work, the material can reach 80-300 mesh for testing.

Consult Online

Leave Message

Pulverizing bowls available in various materials and capacities

Pulverizing bowl: also called pulverising mill grinding bowl, pulverizer mill bowl. It is a grinder that grinds coarse material into fine powder.

When working, put the grinding bowl into the laboratory sample pulverizer or vibration grinder card slot. The motor drives the grinding bowl to eccentrically vibrate. After 2-6 minutes of work, the material can reach 80-300 mesh for testing.

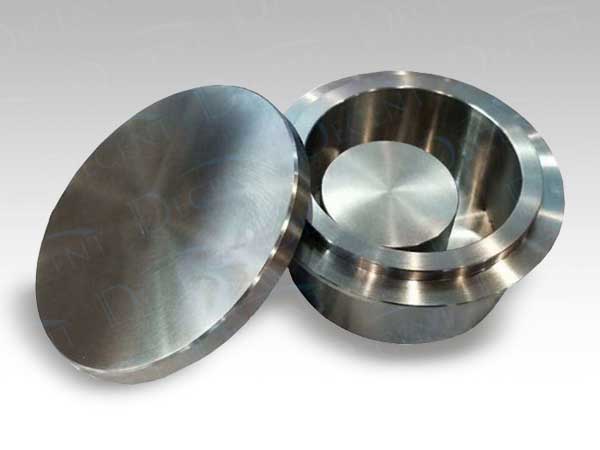

The material of the ring and puck bowl includes carbon steel, high manganese steel, alloy, tungsten carbide, and chrome steel.

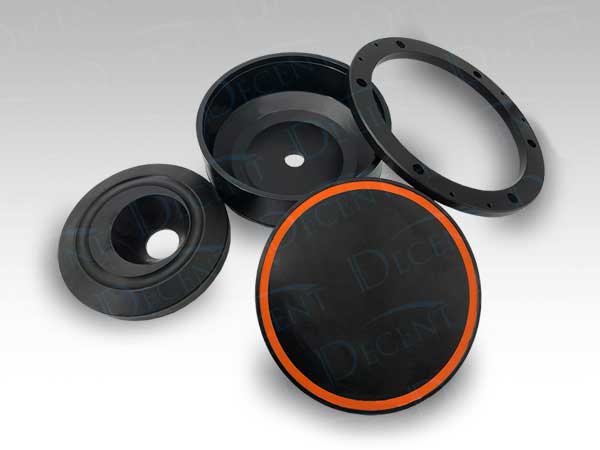

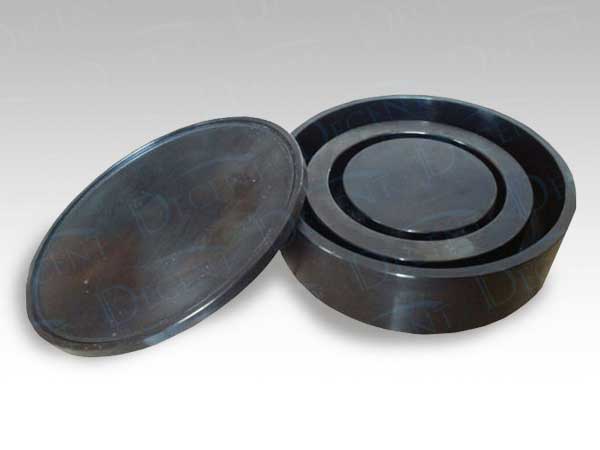

The series of grinding bowls of Qingdao Decent Group has good wear resistance and impact resistance. A unique range of bowls from 40 to 5000g nominal capacity. The “bowl and disc” style grinding head forms the core of Qingdao Decent Group’s extensive bowl range.

We delivers this high-capacity, high-production bowl to the sample preparation market over 10 years. Today it is still the preferred bowl of choice in most of the world’s leading commercial testing laboratories.

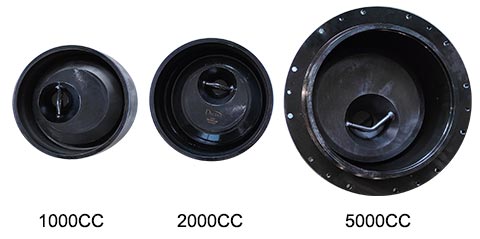

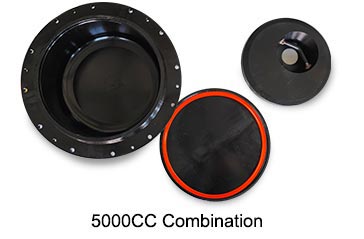

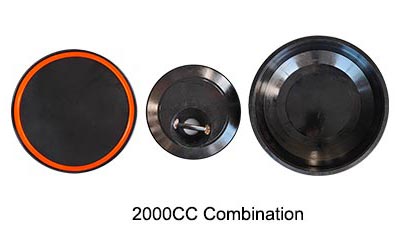

These bowls are of through-hardened steel construction for optimum life. They are available in 640, 800, 1600, and 3500g nominal capacities. Qingdao Decent Group “ring and puck” style bowls are available in the smaller 50, 100, 125, 300 & 400cc nominal capacities. These too are of through-hardened steel construction, with tungsten carbide available in the 125cc size. This innovative crushing and grinding configuration provide rapid preparation of large samples up to 5000g in nominal capacity.

Application range: metals with certain hardness, non-metals (coal, rock, coke, ore, granular materials), and other minerals.

[ TECHNICAL PARAMETERS ]

Model

DB5000

DB2000

DB1000

DB800

DB400

DB300

DB125

DB100

DB50

Rec'd Sample Mass

1000-3500g

200-1600g

100-800g

50-640g

50-320g

50-240g

10-100g

10-80g

5-40g

Bowl Weight

33.6kg

12.65kg

9.05kg

7.26kg

6.3kg

3.12kg

3.56kg

0.93kg

Puck Weight

22.5kg

11.55kg

8.35kg

5.35kg

2.51kg

1.75kg

1.55kg

0.54kg

Ring Weight

2.51kg

L:2.45 S:1.75

1.48kg

Lid Weight

3.5kg

4.25kg

2.9kg

2.2kg

2.05kg

1.12kg

0.26kg

Bowl outer diameter

420mm

279mm

260.2mm

228.3mm

218mm

179mm

175mm

160mm

Bowl internal Diameter

307mm

257mm

239mm

210mm

200mm

140mm

65mm

Bowl Internal Height

137.5mm

93mm

65mm

66mm

46mm

65mm

50mm

37mm

Total height

166.5mm

119mm

90.8mm

90mm

64.5mm

76.9mm

67.3mm

50mm

Available Steel Type

-Standard
-Chrome

-Standard
-Chrome
-Tungsten Carbide

-Standard
-Chrome

Match Mill

-DP5000

-DP2000

-DP2000
-DPM1000

-DP2000
-DPM400-1
-DPM400-2
-DPM400-3
-DPM400-4

-DP2000
-DPM125-1
-DPM125-2
-DPM125-3
-DPM125-4
-DPM125-5

-DP2000
-DPM100-1
-DPM100-2
-DPM100-3
-DPM100-4
-DPM100-5

-DP2000

Compatible Mill

-LM5
-PV5

-LM2
-PV2
