Pulverizing Bowls

Key Advantages

·Good wear and impact resistance.

·Unique range of bowls from 40 to 5000g nominal capacity.

·“Bowl and disc” style grinding head for extensive range.

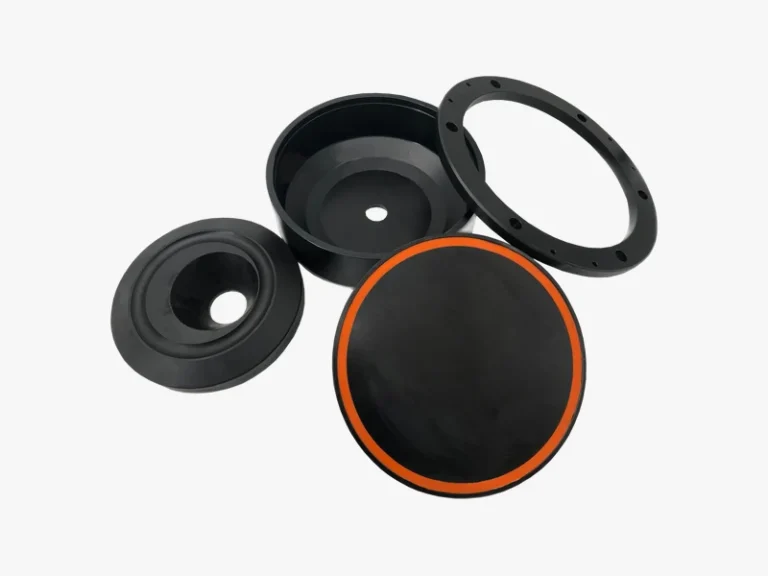

·“Ring and puck” style for smaller capacities (50, 100, 125, 300, 400cc).

·High-capacity, high-production bowls.

·Preferred choice for leading commercial testing laboratories worldwide.

·Innovative crushing and grinding configuration.

·Rapid preparation of large samples (up to 5000g).

Pulverizing Bowls

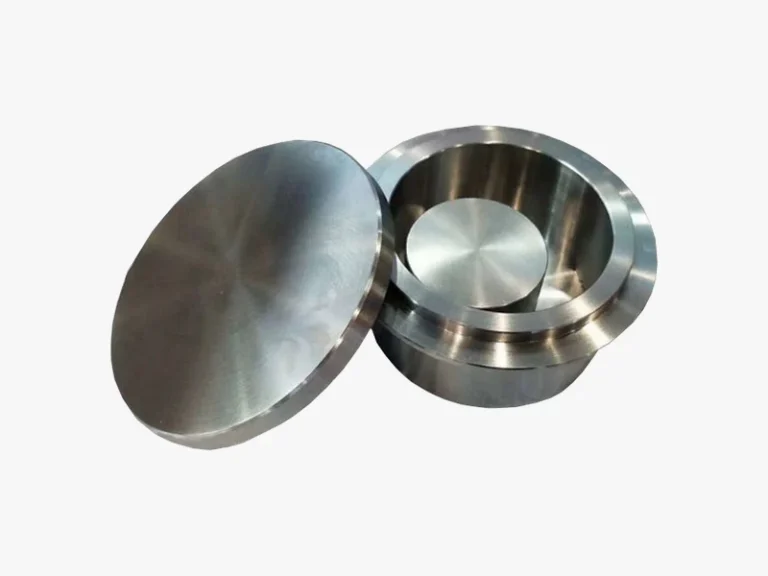

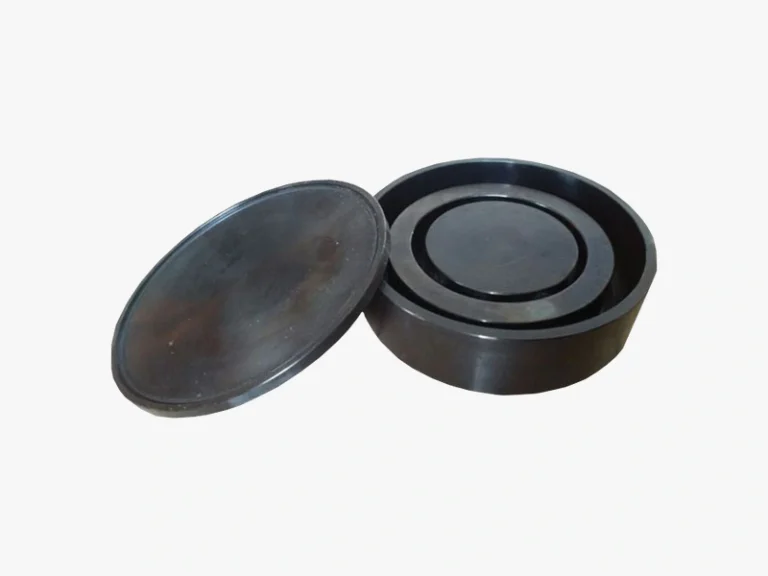

Pulverizing bowls, also known as grinding bowls or pulverizing mill bowls, are used to grind coarse materials into fine powders and are an important part of laboratory and industrial grinding equipment.

The series of pulverizing bowls of Qingdao Decent Group has good wear resistance and impact resistance. A unique range of bowls from 40 to 5000g nominal capacity. The “bowl and disc” style grinding head forms the core of our extensive bowl range.

We deliver this high-capacity, high-production bowl to the sample preparation market over 10 years. Today, they remain the preferred choice for most leading commercial testing laboratories worldwide.

Their nominal capacities are available in 640, 800, 1600, and 3500g. Qingdao Decent Group “ring and puck” style bowls are available in the smaller 50, 100, 125, 300 and 400cc nominal capacities. These are also made of hardened steel structures, with tungsten carbide available for the 125cc size. This innovative crushing and grinding configuration allow for rapid preparation of large samples with a nominal capacity of up to 5000g.

Chat Now

Equipment Construction

·The pulverizing bowls are made from materials such as carbon steel, high-manganese steel, or tungsten carbide to achieve optimal service life.

·The styles are divided into “bowl and disc” or ” ring and puck” to meet different sample sizes and grinding requirements.

·These pulverizing bowls have a simple structure with fewer moving parts, making them easy to clean and maintain.

·The heavier bowls and grinding elements are compatible with simple pneumatic lifting devices, enhancing efficiency and safety.

Technical Parameters

Model	DB5000	DB2000	DB1000	DB800	DB400	DB300	DB125	DB100	DB50
Rec’d Sample Mass	1000-3500g	200-1600g	100-800g	50-640g	50-320g	50-240g	10-100g	10-80g	5-40g
Bowl Weight	33.6kg	12.65kg	9.05kg	7.26kg	6.3kg	6.3kg	3.12kg	3.56kg	0.93kg
Puck Weight	22.5kg	11.55kg	8.35kg	5.35kg	2.51kg	1.75kg	1.55kg	1.55kg	0.54kg
Ring Weight	–	–	–	–	2.51kg	L:2.45 S:1.75	1.48kg	1.48kg	–
Lid Weight	3.5kg	4.25kg	2.9kg	2.2kg	2.05kg	2.05kg	1.12kg	1.12kg	0.26kg
Bowl outer diameter	420mm	279mm	260.2mm	228.3mm	218mm	218mm	179mm	175mm	160mm
Bowl internal Diameter	307mm	257mm	239mm	210mm	200mm	200mm	140mm	140mm	65mm
Bowl Internal Height	137.5mm	93mm	65mm	66mm	46mm	46mm	65mm	50mm	37mm
Total height	166.5mm	119mm	90.8mm	90mm	64.5mm	64.5mm	76.9mm	67.3mm	50mm
Available Steel Type	-Standard -Chrome	-Standard -Chrome	-Standard -Chrome	-Standard -Chrome	-Standard -Chrome	-Standard -Chrome	-Standard -Chrome -Tungsten Carbide	-Standard -Chrome	-Standard -Chrome
Match Mill	-DP5000	-DP2000	-DP2000 -DPM1000	-DP2000 -DPM1000	-DP2000 -DPM400-1 -DPM400-2 -DPM400-3 -DPM400-4	-DP2000 -DPM400-1 -DPM400-2 -DPM400-3 -DPM400-4	-DP2000 -DPM125-1 -DPM125-2 -DPM125-3 -DPM125-4 -DPM125-5	-DP2000 -DPM100-1 -DPM100-2 -DPM100-3 -DPM100-4 -DPM100-5	-DP2000
Compatible Mill	-LM5 -PV5	-LM2 -PV2	-LM2 -PV2	-LM2 -PV2	-LM2 -PV2	-LM2 -PV2	-LM2 -PV2	-LM2 -PV2	-LM2 -PV2
