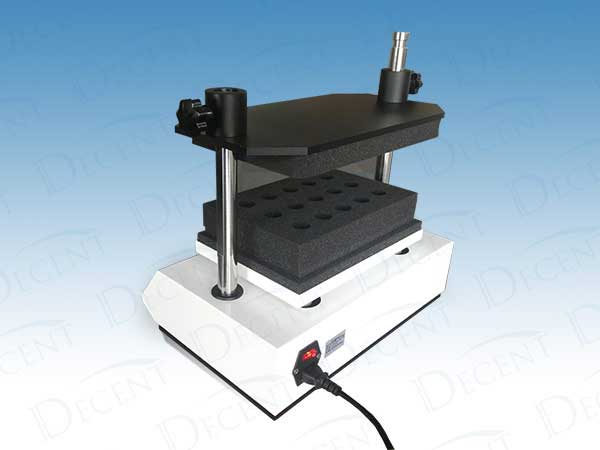

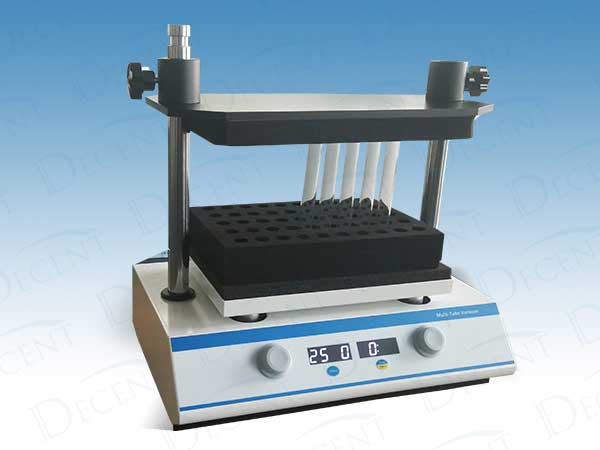

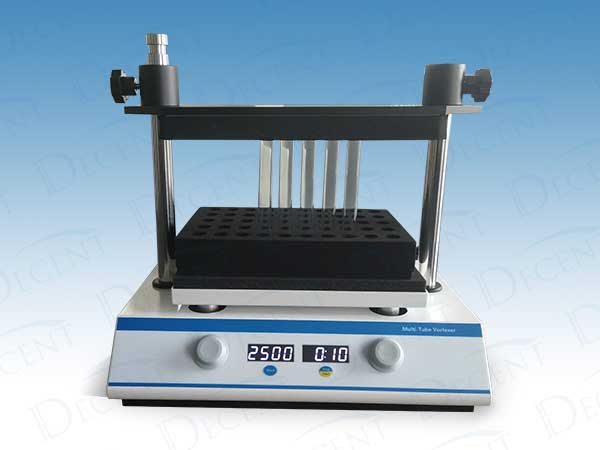

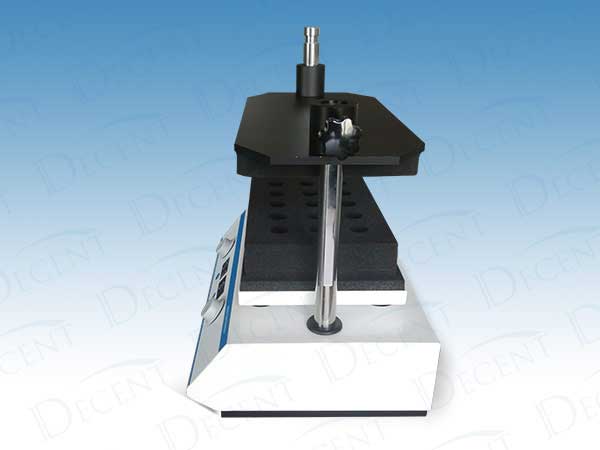

Multi Tube Vortexer

The multi-tube vortexer adopts DC brushless motor and microcomputer control technology. The unique knob operation mode is simple and easy to use. By replacing different test tube fixing sponges, it is possible to mix and culture various common test tubes. Up to 50 samples can be mixed and processed at one time. It is suitable for fields such as biotechnology, microbiology, and medical analysis.

Product Details

The multi-tube vortexer adopts DC brushless motor and microcomputer control technology. The unique knob operation mode is simple and easy to use. By replacing different test tube fixing sponges, it is possible to mix and culture various common test tubes. Up to 50 samples can be mixed and processed at one time. It is suitable for fields such as biotechnology, microbiology, and medical analysis.

[ Advantages ]

Knob operation, easy to use
The timing time can be set arbitrarily within the range of 1 min~ 99 h 50 min, and the prompt sound will be issued automatically after the operation is completed
A wide range of sponge test tube racks are available
Soft start, uniform acceleration, prevents sample splashing
DC brushless motor drive, precise speed, long life, maintenance-free
A maximum of 50 samples can be processed at a time, making the experiment efficient and fast
The operation panel is simple, the microprocessor is precisely controlled, and the LED displays the speed and time in real-time

Humanized program design, built-in 3 operation modes of timing/continuous/jog

[ Product Video ]

[ Technical Parameters ]

Model DMTV-200S
Ambient Temperature 0°C ~ 50°C
Relative Humidity ≤70%
Power AC100 ~ 240V 50/60Hz
Mode Pulse/jog/timing/continuous
Rotating Speed 100 ~ 2500rpm
Amplitude 4mm horizontal rotation
Time Setting 1min ~ 99h59min
Max. Load 4.5kgs
Input Power 70W
Dimensions 410mmx275mmx435mm(LxWxH)
Sample Size Test Tube Rack Model Test Tube Rack Specifications Applicable test tube specification (outer diameter mm)
DT200-T9 50 x Φ9mm Φ9 ~ Φ13mm
DT200-T14 50 x Φ14mm Φ14 ~ Φ17mm
DT200-T18 50 x Φ18mm Φ18 ~ Φ21mm
DT200-T22 15 x Φ22mm Φ22 ~ Φ25mm
DT200-T26 15 x Φ26mm Φ26 ~ Φ32mm
Weight 20kgs
