Key Advantages

  • Processes up to 50 samples simultaneously for high throughput.
  • Offers hands-free, continuous, or timed operation.
  • Features precise digital speed and time programming.
  • Includes a versatile pulsing function for enhanced mixing.
  • Compatible with interchangeable foam racks for various tube sizes.
  • Ensures consistent and reproducible vortexing action.
  • Reduces sample preparation time and labor.
  • Operates with minimal vibration for quiet performance

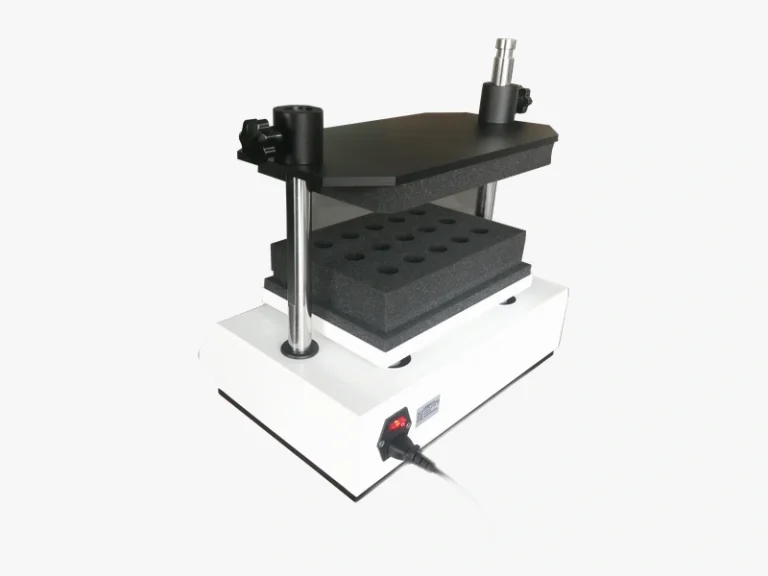

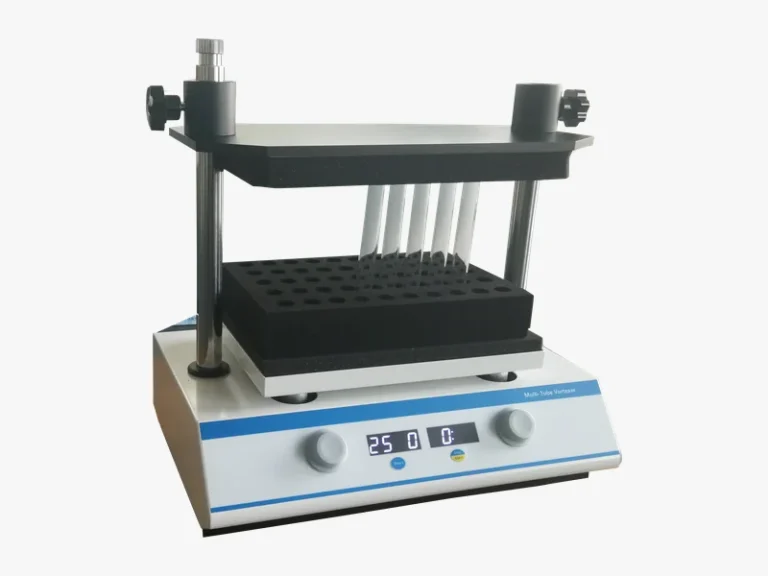

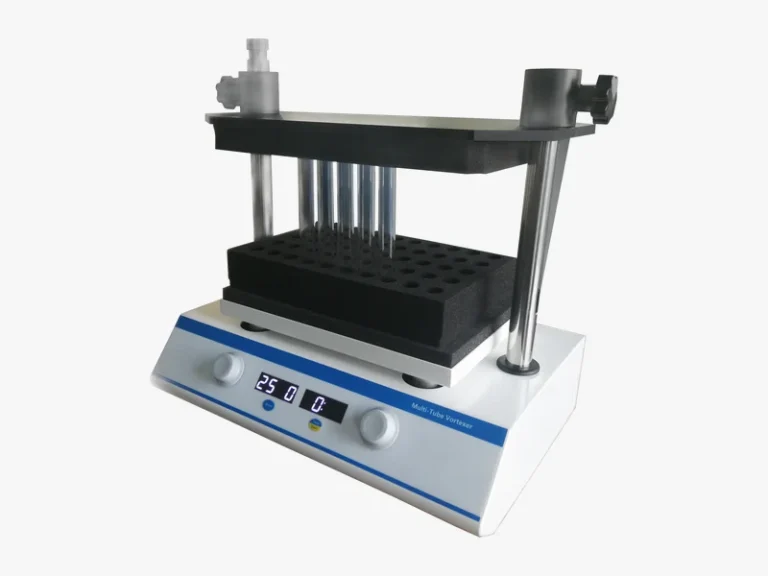

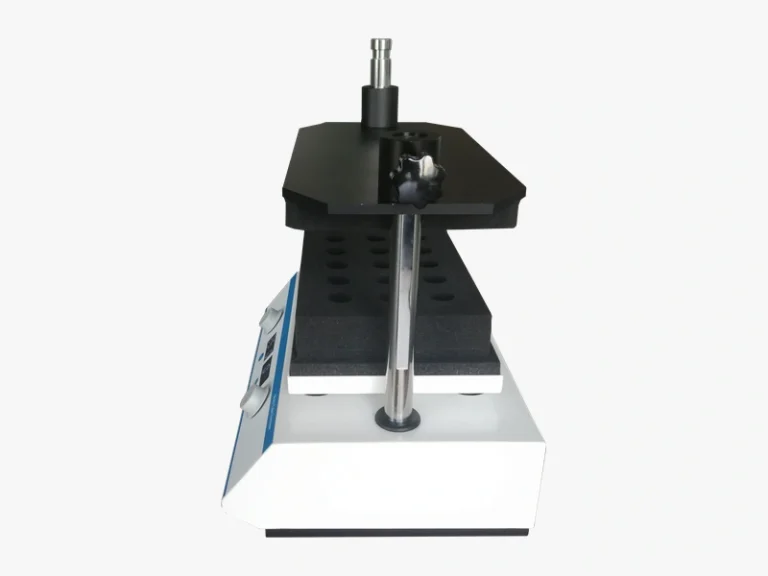

Multi Tube Vortexer

In modern laboratories, particularly those engaged in molecular biology, biochemistry, clinical diagnostics, and high-throughput screening, the need for efficient and consistent sample preparation is paramount. Manually vortexing individual tubes is not only time-consuming and labor-intensive but also introduces variability, compromising reproducibility. As sample volumes increase, single-tube vortexers quickly become a bottleneck, impeding workflow and delaying critical results.

The DECENT Multi Tube Vortexer is ingeniously designed to overcome these challenges, transforming the way laboratories handle large batches of samples. This advanced instrument allows for the simultaneous, hands-free mixing of numerous tubes, vials, or cylinders, ensuring uniform agitation and thorough homogenization across every sample. By streamlining a traditionally tedious process, the Multi Tube Vortexer significantly boosts laboratory efficiency and productivity, empowering scientists to accelerate their research and diagnostic workflows.

The DECENT Multi Tube Vortexer stands out with its robust design and intelligent features, engineered for continuous, reliable performance in demanding environments. Typically capable of processing up to 50 samples at a time, it drastically reduces preparation time compared to single-tube methods. The vortexing action is generated by a precisely balanced drive system that secures the top of the vessels while allowing their bottoms to move freely in a defined orbital path (e.g., 3.6 mm or 4mm orbit), creating powerful and consistent mixing within each tube. Advanced models often feature microprocessor control, enabling precise digital programming of both speed (e.g., 500 to 2500 RPM) and time (e.g., 1 minute to 9999 minutes or continuous mode).

Additionally, a versatile pulsing feature allows for intermittent mixing, enhancing agitation for difficult samples or facilitating specific reaction kinetics. Compatible with a wide range of interchangeable foam racks for different tube sizes, the DECENT Multi Tube Vortexer is an indispensable tool for achieving accurate and repeatable results in high-volume sample mixing.

Equipment Construction

  • Housing: Rugged stainless steel construction with corrosion-resistant paint.
  • Motor: Powerful, permanent magnet motor with sealed ball bearings, rated for continuous duty.
  • Drive System: Precisely balanced drive system for accurate, rattle-free operation.
  • Orbit: Defined eccentric orbital motion (e.g., 3.6 mm or 4 mm).
  • Control Panel: Microprocessor controller with digital LED display for speed and time.
  • Sample Platform: Two stainless steel posts securely hold support plate.
  • Accessories: Includes standard foam rack (e.g., for 12mm tubes); various other racks available.
  • Stability: Suction-cup feet dampen motion and prevent sliding.

Technical Parameters

Model DMTV-200S
Ambient Temperature 0°C ~ 50°C
Relative Humidity ≤70%
Power AC100 ~ 240V 50/60Hz
Mode Pulse/jog/timing/continuous
Rotating Speed 100 ~ 2500rpm
Amplitude 4mm horizontal rotation
Time Setting 1min ~ 99h59min
Max. Load 4.5kgs
Input Power 70W
Dimensions 410mmx275mmx435mm(LxWxH)
Sample Size Test Tube Rack Model Test Tube Rack Specifications Applicable test tube specification (outer diameter mm)
DT200-T9 50 x Φ9mm Φ9 ~ Φ13mm
DT200-T14 50 x Φ14mm Φ14 ~ Φ17mm
DT200-T18 50 x Φ18mm Φ18 ~ Φ21mm
DT200-T22 15 x Φ22mm Φ22 ~ Φ25mm
DT200-T26 15 x Φ26mm Φ26 ~ Φ32mm
Weight 20kgs
