Manual Crucible Loader

Key Advantages

Loads 25 or 50 crucibles at once, enhancing efficiency.
Protects operators from direct contact with high temperatures.
Easy operation with a foot pedal and handle for lifting and placement.
Features a high-intensity steering wheel with brakes for stability.
Ensures safe and precise crucible positioning.
Reduces manual handling and associated risks.
Customizable loading capacity to meet specific needs.
Designed for use in fire assay laboratories.

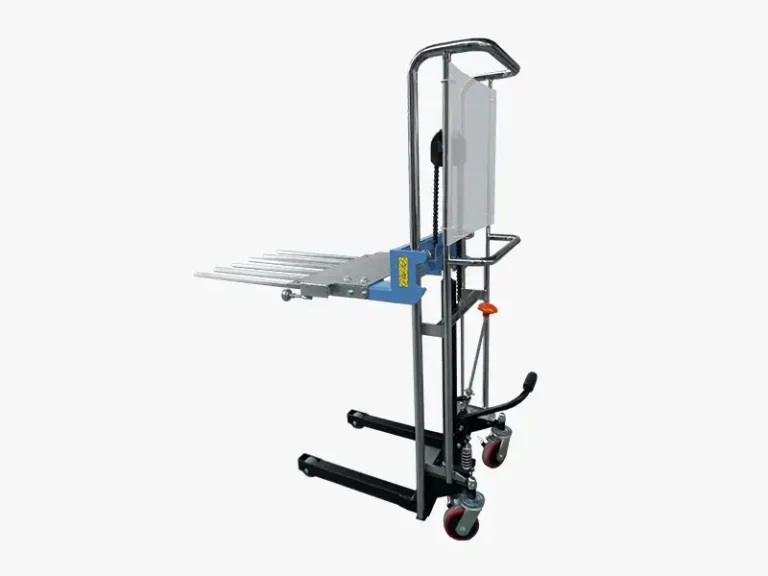

Manual Crucible Loader

In fire assay laboratories, handling hot crucibles can be a hazardous and time-consuming task. Manually loading and unloading multiple crucibles from high-temperature furnaces not only poses safety risks to operators but also significantly slows down the analytical workflow. Ensuring even placement and swift action is crucial for process integrity and laboratory efficiency.

The DECENT Manual Crucible Loader provides a robust solution to these challenges. Specifically designed for fire assay, it allows for the simultaneous transfer of 25 or 50 crucibles, minimizing direct operator exposure to intense heat. Its intuitive pedal and handle operation, combined with a stable, mobile design, ensures safe, precise, and efficient crucible placement, ultimately enhancing laboratory productivity and safety protocols.

Chat Now

Equipment Construction

Frame: Overall frame and structural components made of high-quality seamless steel pipes.
Lifting Mechanism: Features a manual screw lift system controlled by a pedal and handle.
Chains: Equipped with thickened, durable chains for stable and reliable loading.
Forks: Designed for stable and firm clamping of crucibles.
Shielding: Includes transparent heat insulation panels to block high temperatures.

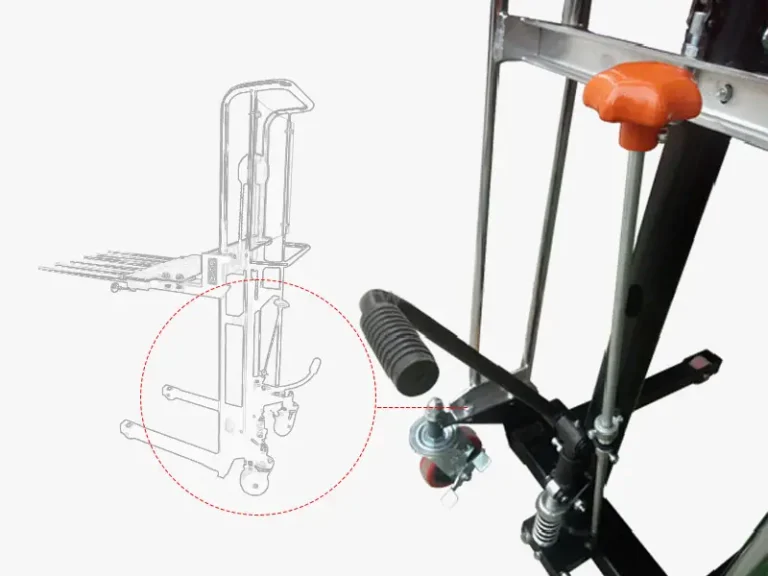

Pedal: Extended pedal design for comfortable and controllable lifting.
Wheels: Rear steering wheel with brakes ensures safe and flexible movement.
Safety: Built-in safety features like brakes for emergency situations.

Technical Parameters

Model	The Max.Loading Capacity	Lifting Height	Fork Size	Pair With
DMPL25	400kg	1500mm	900x650x60mm	50g/65g or customized any crucible size
DMPL50	400kg	1500mm	900x1200x60mm	50g/65g or customized any crucible size
