Lab Pulverizer Mill DPM1000

Key Advantages

  • Efficiently reduces various materials to fine powders.
  • Delivers rapid, dust-free grinding.
  • Achieves 95% fineness below 75 microns in ~3 minutes.
  • Compatible with pulverizing bowls up to 1000cc.
  • Globally certified with multi-voltage support.
  • Features a compact, noise-suppressed design.

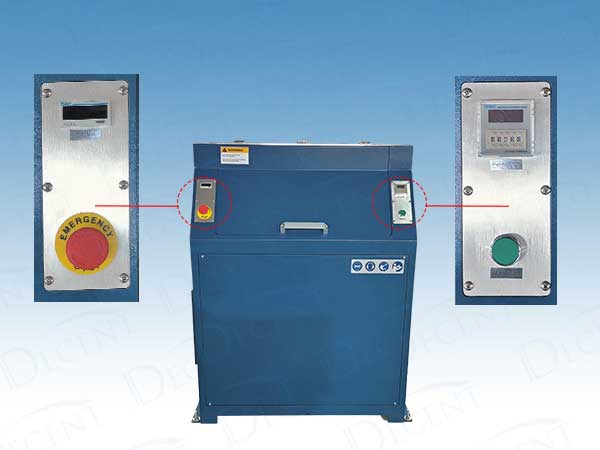

  • Enhances safety with integrated lid switch and emergency stop.
  • Offers direct control and simplicity via manual bowl clamping.

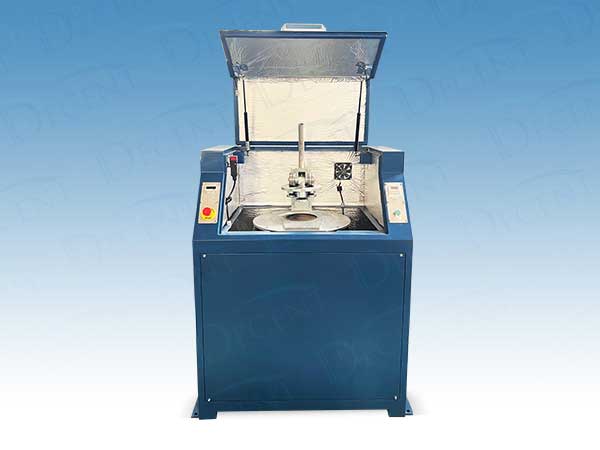

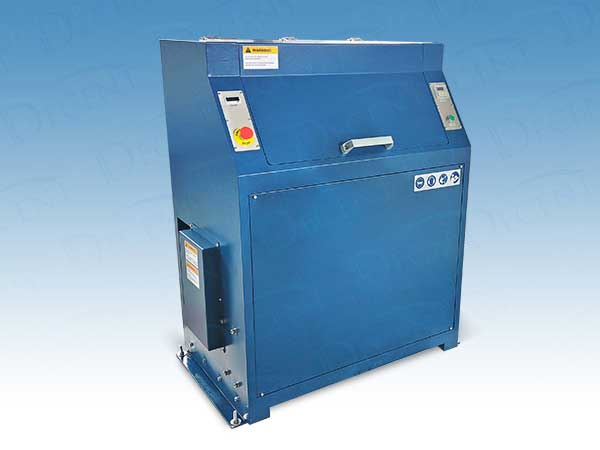

Lab Pulverizer Mill DPM1000

In the demanding world of mining, laboratory analysis, and cutting-edge research, precision and efficiency are paramount. The DECENT Lab Pulverizer Mill DPM1000 stands as the ultimate solution, transforming even the toughest materials into fine, homogeneous powders—the critical first step for accurate analysis and stringent quality control. This heavy-duty vibratory mill is engineered for rapid, dust-free grinding of hard ores, minerals, ceramics, soils, and chemicals, consistently delivering representative samples ground to an impressive 95% below 75 microns in just approximately three minutes.

Built for the rigors of continuous laboratory use, the DPM1000 handles a wide range of materials with remarkable ease. Its powerful 2.2kW motor seamlessly accommodates pulverizing bowls from 50 cc up to 1000 cc, offering versatile capacity to adapt to your specific sample preparation needs. Experience the simplicity and direct control of its straightforward manual bowl clamping, eliminating the need for complex pneumatic systems or a grinding bowl assistant, as the 1000cc bowl is designed for easy manual handling. Operational safety is paramount, ensured by essential features like an integrated safety lid switch and an emergency stop button. Housed within a compact, noise-suppressed design, the DPM1000 is globally certified with multi-voltage support, making it your reliable partner for consistent, high-quality sample preparation, day after demanding day.

Equipment Construction

  • The mill boasts a compact, noise-suppressed design.
  • An integrated safety lid switch is part of its structure.

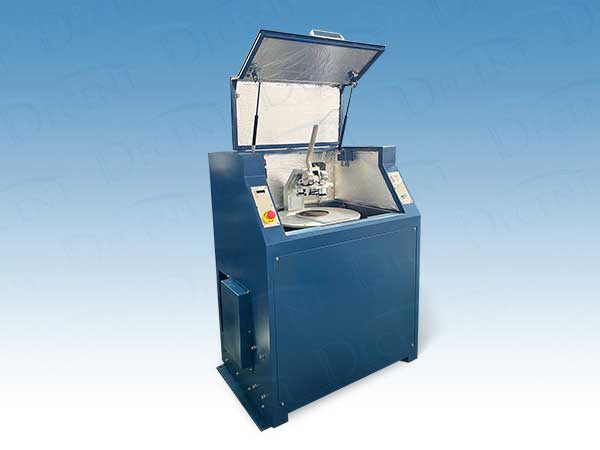

  • The lid incorporates a safety lock and gas strut.
  • Physically isolated pneumatic and electric controls are included.
  • The motor is positioned away from the electrical box.
  • A bolt-on replaceable gooseneck is included.
  • Detachable front, back, left, and right panels within an insulated steel housing allow for easy access and noise suppression.
  • A robust motor drives the universal shaft via V-belts, delivering enhanced crushing power to the pulverizing bowl.

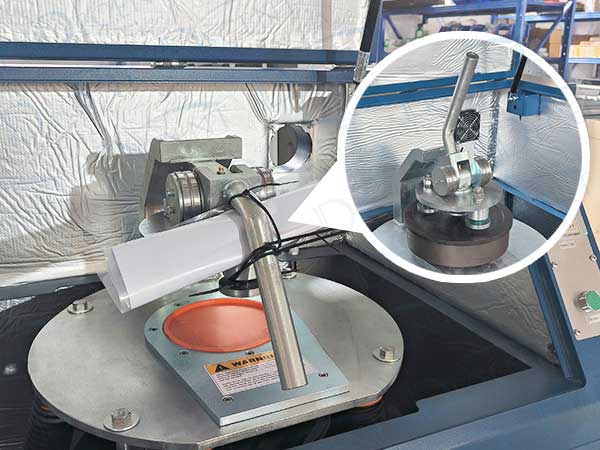

  • The grinding bowl clamping device is manual.

Technical Parameters



Voltage 380-415V 50Hz 3phase Grinding Capacity 40g-800g
Motor Power 2.2kW Compatible Grinding Bowls 125cc, 300cc, 400cc, 800cc, 1000cc
Feed Size ≤20mm Bowl Materials Standard steel, Chrome steel, Tungsten carbide
Output Size 95% <75μm Mill Net Weight 360kg
Timer Setting 1 second-99 hours Mill Dimensions 1050mm x 1250mm x 725mm (LxHxW)
Applications Ores, minerals, metallurgical samples, ceramics, soils, aggregates, chemicals, and similar particulates
