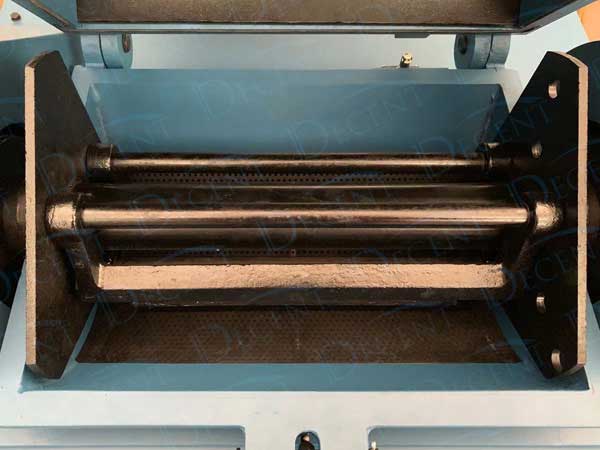

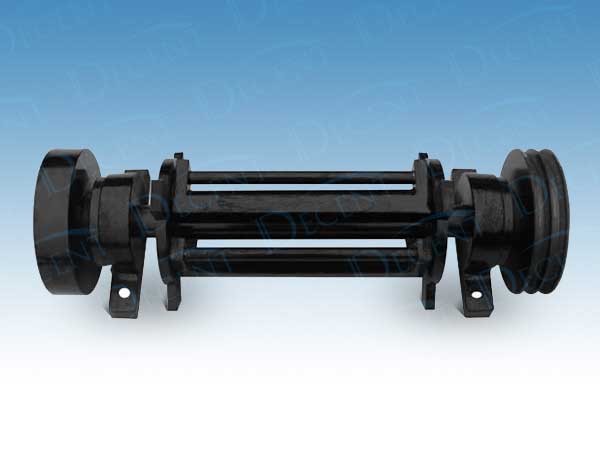

hammer crusher full wide head

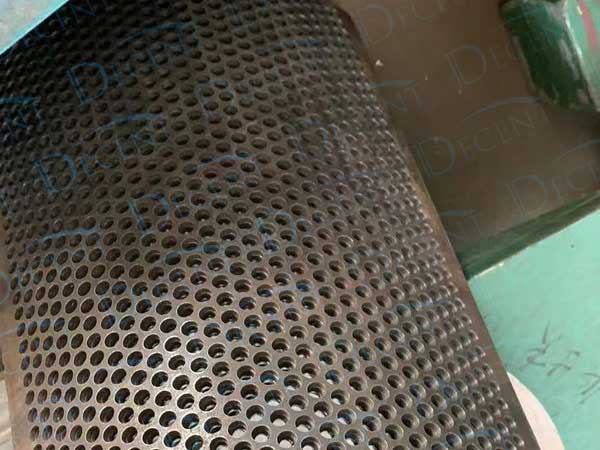

hammer crusher sieve plate
hammer crusher dhc150
hammer crusher dhc150a
hammer crusher dhc50
hammer crusher djhc50a
hammer crusher top view
hammer crusher full wide head
hammer crusher sieve plate

Hammer Crusher

Qingdao Decent Group laboratory hammer crusher adopts a full-width hammer head, and a high-quality motor drives the rotor to rotate quickly. The full-width hammer head will impact, shear and tear the material from the ore sample entering the crusher cavity. At the same time, the gravity of the ore itself causes the material to rush from the high-speed rotating hammer to the baffle and screen in the frame. The material larger than the mesh size is blocked on the sieve plate and continues to be impacted by the hammer until the particle size of the ore sample passes through the sieve plate. Exhaust from the machine.

Product Details

Laboratory hammer crusher fully sealed and with plug-in sieve plate

Qingdao Decent Group laboratory hammer crusher adopts a full-width hammer head, and a high-quality motor drives the rotor to rotate quickly. The full-width hammer head will impact, shear and tear the material from the ore sample entering the crusher cavity. At the same time, the gravity of the ore itself causes the material to rush from the high-speed rotating hammer to the baffle and screen in the frame. The material larger than the mesh size is blocked on the sieve plate and continues to be impacted by the hammer until the particle size of the ore sample passes through the sieve plate. Exhaust from the machine.

[ STANDARD FEATURES ]

● Welded steel crushing cavity can avoid easy crack and material holdup problems.

● Fully sealed cabinet design offers safe and dust free operation.

● Full width hammer heads crush materials in full section and avoid problems of blocking working cavity and sample holdup.

● Crushing large moisture samples without moisture lose and with uniform output and high efficiency.

● Low noise.

● Easy moving with wheels.

● Plug-in sieve plates ensure convenient cleaning and maintenance.

● Optional built-in sample divider increases sampling accuracy.

[ PRODUCT VIDEO ]

[ TECHNICAL PARAMETERS ]

Decent Model No. DHC50 DHC50A DHC150 DHC150A
Feed-in Size 50mm 50mm 150mm 150mm
Output Size <6 or <3 or <1mm <6 or <3 <13 or <6 or <3mm <13 or <6 or <3mm
Productivity 600-300 kgs/h 500-200 kgs/h 2000-1200 kgs/h 2000-650 kgs/h
Power 1.5kw 1.5kw 4kw 4kw
Voltage 3 Phase, 380V 3 Phase, 380V 3 Phase, 380V 3 Phase, 380V
Weight 250 kgs 195 kgs 400 kgs 300 kgs
Overall Dimension 800x580x1200mm 890x680x1300mm 920x720x1320mm 1110x980x1410mm
Division Power & Rate (Optional)
0.4kw
1:8
2kw
1/2-1/8 (adjustable)
0.4kw
1/2-1/16 (adjustable)
4.4kw
1/2-1/8 (adjustable)

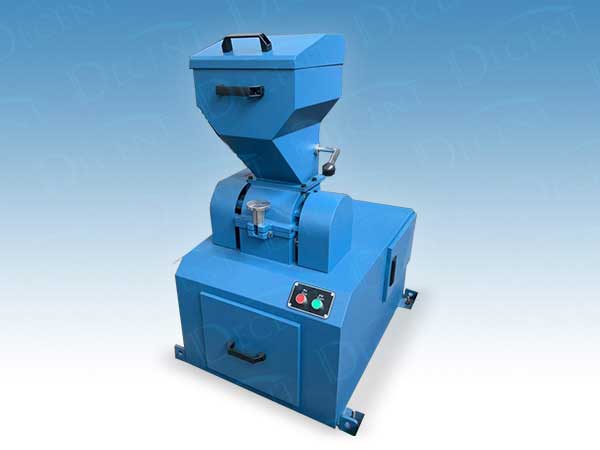

Product Photo Hammer Crusher DHC50

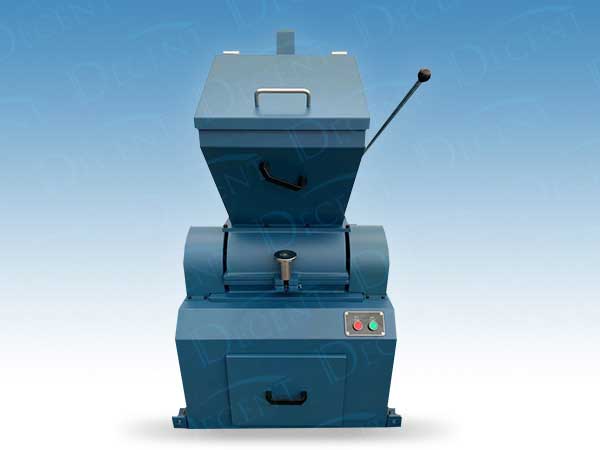

Hammer Crusher DHC50A

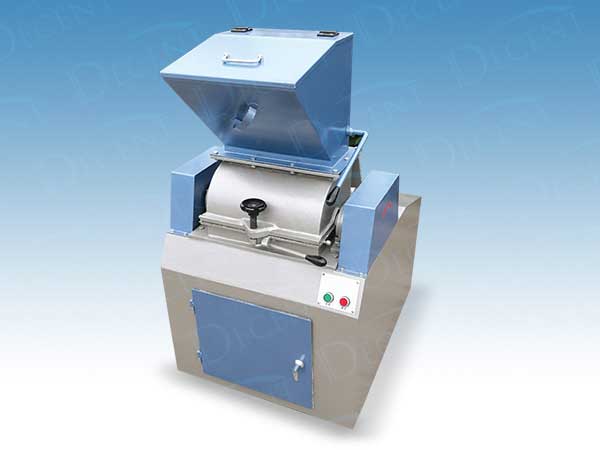

Hammer Crusher DHC150

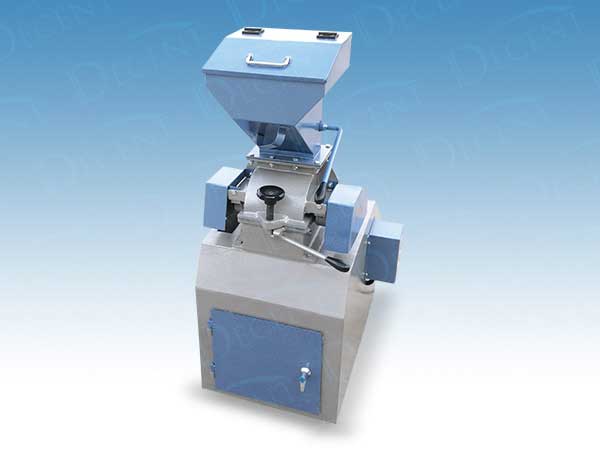

Hammer Crusher DHC150A
Crate Dimension 850x680x1320mm 950x780x1410mm 1050x880x1450mm 1210x1080x1510mm
Gross Weight 200 kgs 180 kgs 400 kgs 370 kgs
