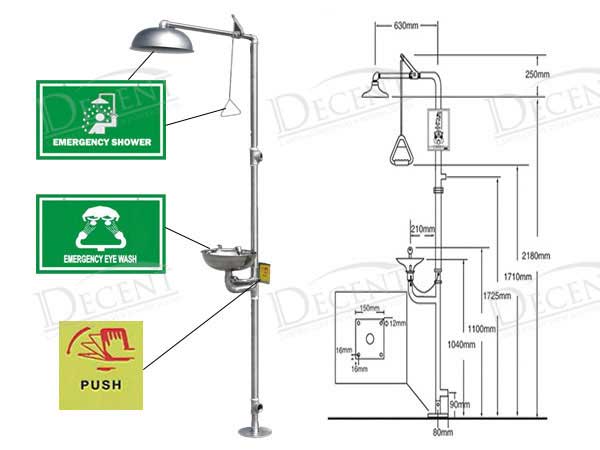

Emergency safety shower drawing
Emergency safety shower show
Emergency safety shower view
Emergency safety shower drawing

Emergency Safety Shower

Compound eyewash, also known as spray eyewash, shower eyewash or safety accident spray eyewash, is a kind of emergency rescue and safety protection equipment. The equipment is equipped with a spray system and an eyewash system and is directly installed on the ground at the work site. Connect drinking tap water. When chemicals are sprayed on the eyes, face or body of the staff, use the composite eyewash for emergency flushing and rescue.

Product Details

Emergency safety shower with a sprinkler system and an eyewash system

Emergency safety shower is a kind of emergency rescue safety protection products. The equipment is equipped with a sprinkler system and an eyewash system, which is directly installed on the ground of the work site and connected to drinking tap water. When chemical substances are sprayed on the eyes, face or body of the staff, use emergency safety showers for emergency flushing and rescue.

[ FUNCTION ]

When chemical substances are sprayed on the eyes and face of the staff at the work site, use the eyewash system of the emergency safety shower device to rinse with large amounts of water. The eyewash water flow rate: >1.5L/MIN, the eyewash/face wash water flow rate: >11.4 L/MIN

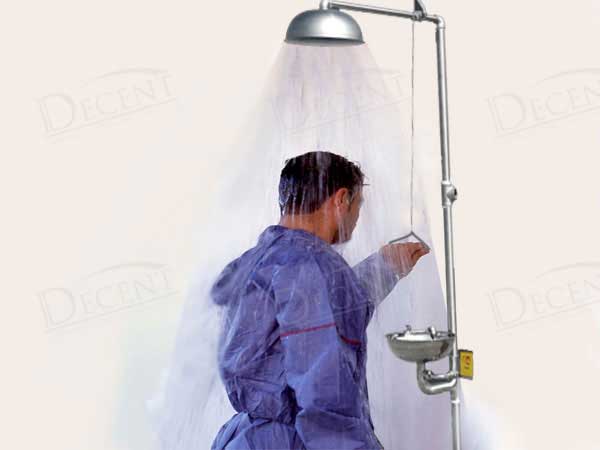

When chemical substances are sprayed on the staff’s clothing and body at the work site, use the spray system of the emergency safety shower device to rinse with a large amount of water, and the spray water flow rate: >75.7L/MIN

[ FEATURES ]

Equipped with spray and eyewash system

Installed directly on the ground at the factory site

Connect to drinking tap water

Use water source temperature: 16~38℃ (the water source temperature value is solved by the on-site water supply)

Water source pressure: 0.2~0.6Mpa (If the water source pressure is lower than 0.2Mpa, the eyewash device structure needs to be changed)

Water inlet size: 1-1/4 inch FNPT

Outlet size: 1-1/4 inch FNPT

Spray water flow: >75.7 L/MIN

Eyewash water flow: >1.5 L/MIN

Eye/face wash water flow:> 11.4 L/MIN

Use time: >15MIN

[ APPLICATION PLACES ]

It is widely used in workplaces where chemical substances exist in industries such as petroleum, chemical, electric power, electronics and ports.
