DYD-LD Series Dust Removal Filtration System

Product Details

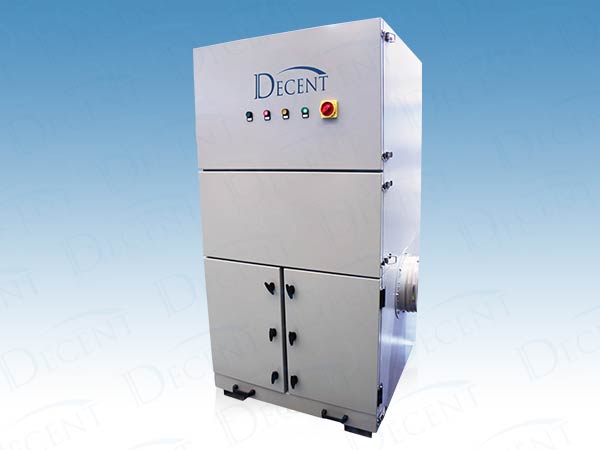

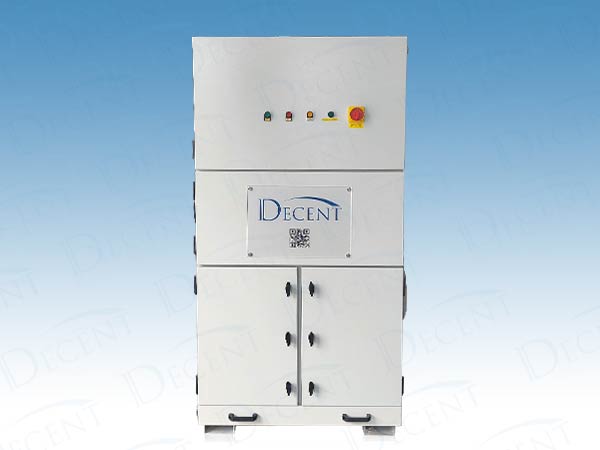

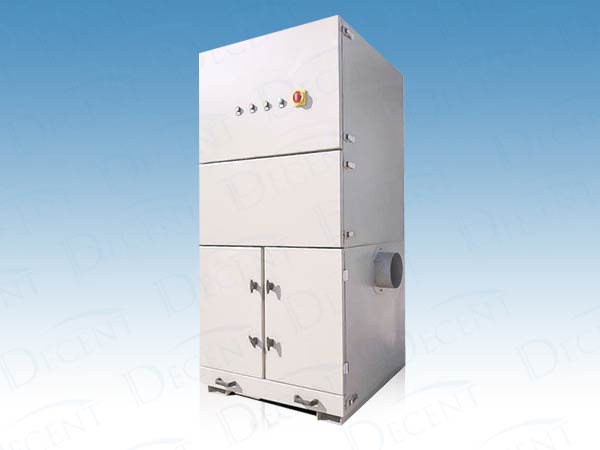

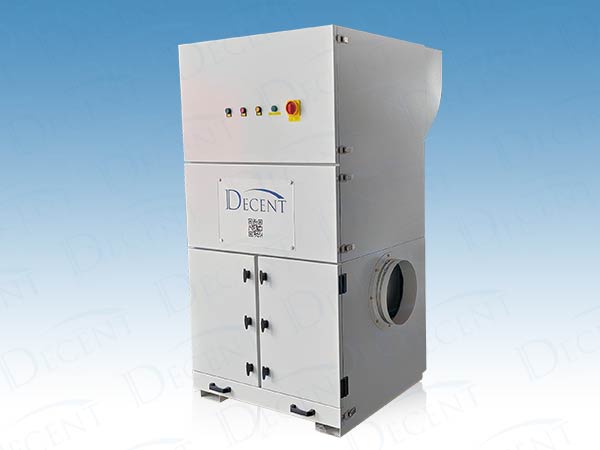

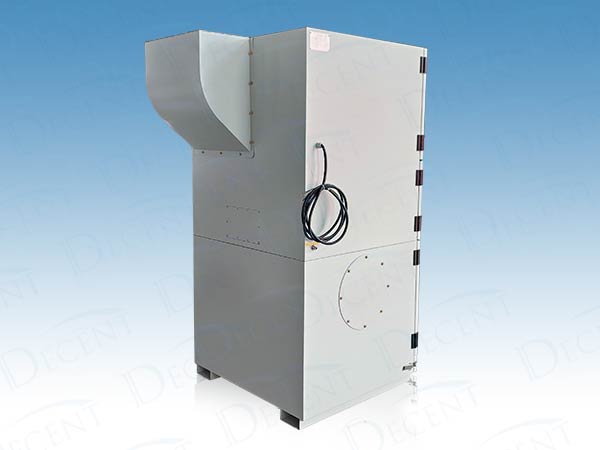

DYD-LD Series Dust Removal Filtraters

Equipment Introduction

Qingdao Decent Group's dust removal filtraters features a cartridge filter pulse dust collector,effectively reducing dust and harmful particle pollution in laboratory and factory environments.It ensures a safe,comfortable workplace for staff and protects lab testing and production processes. Using high-pressure pulse dust removal,the filter cartridge captures and purifies dust,particularly fine particles. The filter element contains activated carbon adsorption material, filtering 99.9%of sub-micron particles.

Equipment Characteristics

1. Compact  design,small  footprint,and  sturdy  carbon steel casing with wheels for easy mobility.
2. Nanofiber filter cartridge PTFE coating for enhanced filtration
3. Multi-wing centrifugal fan for efficient operation.
4. Automatic pulse cleaning ensures thorough filtration and extends cartridge lifespan.
5. Low noise with internal sound-absorbing cotton.

Technical Parameters

Series Airflow (m3/h) Motor (kW) Filter Cartridge Model Number of Filter Cartridges (pieces) Filter Area (m2) Body Size (L*W*H)(m) Size of Air Inlet and Outlet (φ) Motor Type
DYD-LD6000 6000 5.5 φ325*600 4 36 1*0.93*1.96 300 Fixed Frequency
DYD-LD8000 8000 7.5 φ325*600 4 86 1*0.93*2.2 300 Fixed Frequency/Inverter
DYD-LD10000 10000 11 φ325*1000 12 216 2.5*1.9*2.3 400 Inverter
DYD-LD15000 15000 15 φ325*600 16 144 3.1*1.9*2.3 500 Inverter
DYD-LD18000 18000 18.5 φ325*1000 16 288 3.6*1.9*2.3 600 Inverter
DYD-LD20000 20000 22 φ325*1000 16 288 4.2*1.9*2.3 600 Inverter
DYD-LD30000 30000 30 φ325*1000 24 432 5.6*1.9*2.3 750 Inverter
DYD-LD35000 35000 37 φ325*1000 24 460 6.2*1.9*2.3 750 Inverter

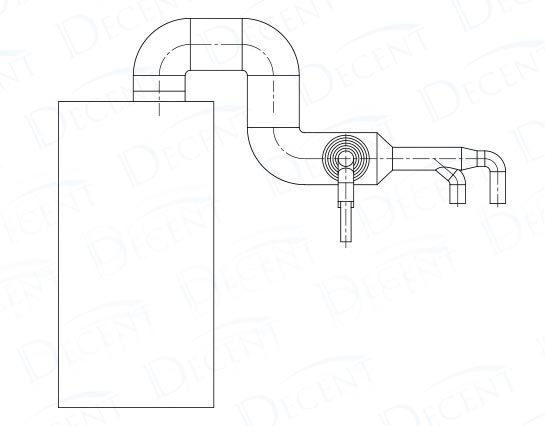

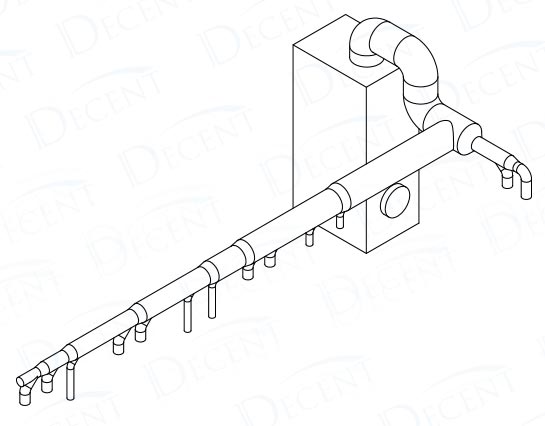

Mobile Container Laboratory Application

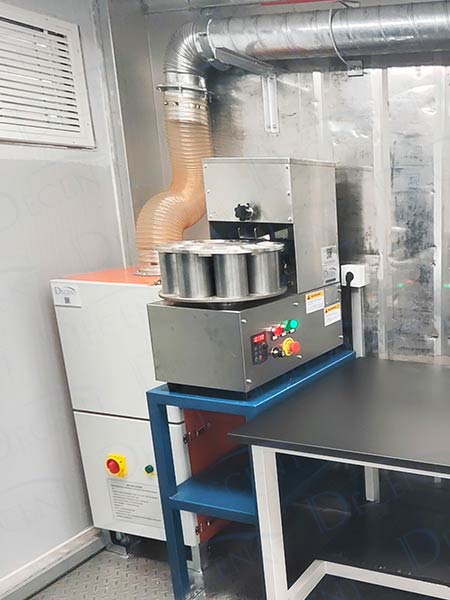

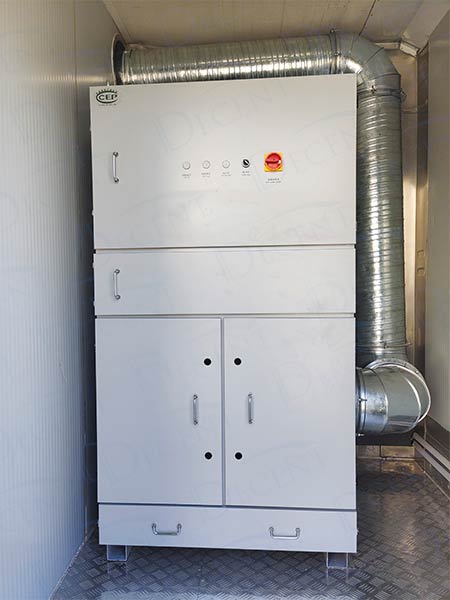

Qingdao Decent Group dust removal system is specifically designed to meet the unique requirements of mobile container laboratories. With its compact design and efficient filtration capabilities, it ensures a clean and safe working environment within the confines of a mobile laboratory setting.

1. Compact Design: Designed to fit within the limited space constraints of mobile container laboratories, maximizing available workspace.
2. Efficient Filtration: Utilizes advanced filtration technology to effectively remove dust and contaminants, ensuring a clean and safe working environment.
3. Portability: Lightweight and portable design allows for easy transportation and deployment, making it ideal for mobile laboratory setups.
4. Versatility: Can be adapted to various mobile laboratory configurations, providing flexible solutions for different applications.

5. Easy Maintenance: Designed for easy maintenance and servicing, minimizing downtime and ensuring continuous operation.

Core Components of Dust Removal

High filter cartridge as the filtering element, PTFE membrane filter, for the adhesion of dust,PTFE coated filter element can filter dust particles reach 0.3um (optonal higher eve of filtraton), the filtration efficiency reached 99.99%.Even if the ambient temperature is lower than the dew point temperature. The filter element also maintains a stable filtration capacity.PTFE membrane filter has the advantages of membrane filtration and rigid body filtration, and small volume, large filtration area of rigid filter allows high working pressure, and has a very long service life. Mainly used for the treatment of various toxic and harmful ultrafine dust and smoke, caution should be exercised in oily smoke environments, and additional membrane materials may be required for use.

Qingdao Decent Filter Cartridge Element Qingdao Decent PTFE Filter Cartridge

Self-cleaning Principle of Cartridge

Purifier filter cleaning by pulse jet structure: when the purifier running after a period of time, fine dust adsorbed on the surface of the filter, the reduced permeability filter, dust absorption filter surface is cleared in the flow, fall in the lower chamber of the dust hopper.

Pulse injection requires clean compressed air of 0.4-0.6Mpa, and constant and constant air supply must be maintained during operation.

Working Principle of Filter Tube Dedusting

Ash Cleaning System

Cartridge filter cleaning with compressed air pulse cleaning, now through the microcomputer control timing or manual start function of pulse jet injection valve, the filter cylinder radial deformation, shake off the dust. The pipeline system is fixed in the box with the support, and the positioning pin is set, so that the accurate reset can be ensured when the equipment is maintained and maintained.

Compressed air piping system for diversion of compressed air, compressed air helps in the blowing process stability, can improve the cleaning system running stability, effectively reduce the equipment running resistance, reduce the energy consumption of the system. The ash cleaning system is equipped with gas distribution bag and precision filter (oil, water and dust) to ensure the pressure, gas volume and quality of the gas supply. The dust cleaning and ash cleaning capacity can meet the demand of dust cleaning under various working conditions.

Electromagnetic Pulse Valve

The key equipment of the ash cleaning system is the electromagnetic pulse valve, and its selection is related to the dust removal effect of the dust remover and the stability and reliability of the equipment. Can effectively reduce the operation and maintenance costs. We use the electromagnetic pulse valve to dust, blowing pressure 0.7MPA, DC24V 1.0"in the workload, gas pressure is MPA, pulse jet time 0.2S, single electromagnetic pulse valve injection when the compressed air consumption 30L, greatly reduce the compressed air consumption, can effectively reduce the workload of the compressed air station.
