Crushers

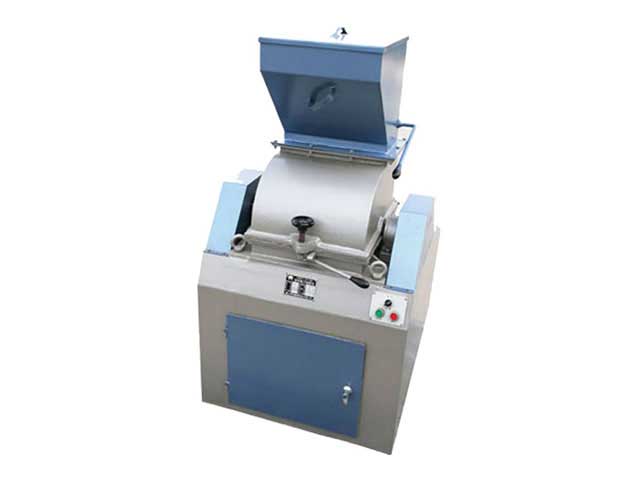

Blade Hammer Crusher

Blade Hammer Crusher

● Suit to both stalk type fiber material and mineral type granular material. ● Welded steel crushing cavity can avoid easy crack and material holdup problems. ● Fully sealed cabinet design offers safe and dust free operation. ● Full width hammer heads crush materials in full section and avoid problems of blocking working cavity and sample holdup. ● Crushing large moisture samples without moisture lose and with uniform output and high efficiency. ● Low noise and easy moving with wheels.

Product Details

The blade hammer crusher has a finer discharge particle size

The blade hammer mill crushes the ore through high-speed shearing, hammering driven by strong airflow. And stainless steel screen filters the ore to obtain the required powder. The equipment is equipped with a dust suction device, with no dust pollution.

Blade hammer crushers are different from other crushers in that they have finer granularity and have grate sieves to control the specifications of the ores. So they are the choice of many sand and gravel plants.

[ STANDARD FEATURES ]

●   Suit to both stalk type fiber material and mineral type granular material.

●   Welded steel crushing cavity can avoid easy crack and material holdup problems.

●   Fully sealed cabinet design offers safe and dust free operation.

●   Full width hammer heads crush materials in full section and avoid problems of blocking working cavity and sample holdup.

●   Crushing large moisture samples without moisture lose and with uniform output and high efficiency.

●   Low noise and easy moving with wheels.

●   Plug-in sieve plates ensure convenient cleaning and maintenance.

●   Optional built-in sample divider increases sampling accuracy.

[ TECHNICAL PARAMETERS ]

Model No.

DBHC80

DBHC150

DBHC150-LP

Feed-in Size

≤80mm

≤150mm

≤150mm

Output Size

<6mm or<3mm

<13mm or<6mm

<13mm or<6mm

Productivity

1800 kgs/h

3000 kgs/h

3000 kgs/h

Power

4kw

5.5kw

7.5kw

Voltage

3ph, 380v, 50hz

3ph, 380v, 50hz

3ph, 380v, 50hz

Weight

400 kgs

600 kgs

650 kgs

Overall Dimension

1000x800x1400mm

1250x860x1750mm

1250x860x1750mm

Division Power & Rate (Optional)

0.4kw

1/2-1/8 (adjustable)

0.4kw

1/2-1/8 (adjustable)

0.4kw

1/2-1/8 (adjustable)

Remarks: The difference between DBHC150 and DBHC150-LP is the crushing cavity of DBHC150-LP has liner plate which is more durable and good for corrosive material.
