Fire Assay

Automatic Flux Dispenser System

Product Details

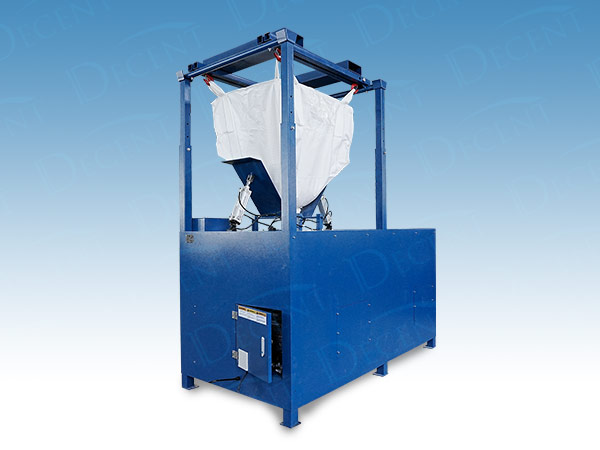

Automatic Flux Dispenser System

Our automatic flux dispenser system can automatically dispense samples into 84 crucibles at once, designed to boost productivity in your laboratory. The automatic flux dispenser system is manufactured from durable components, capable of withstanding the demands of a busy laboratory for the long term. Automated functions require only limited operator involvement, minimizing the possibility of error.

Improve Laboratory Efficiency With The Automatic Flux Dispenser System

Use automatic flux dispenser system to automatically dispense 84 crucible samples at once, greatly reducing manual operations and human error. With a high-precision dispensing system, it ensures that the amount of fluxing agent in each crucible is accurately consistent, supporting high-quality scientific research. Choosing our automatic flux dispenser system can bring more efficient, precise, and economical sample preparation solutions to the laboratory.


KEY FEATURES

l Labor-Saving

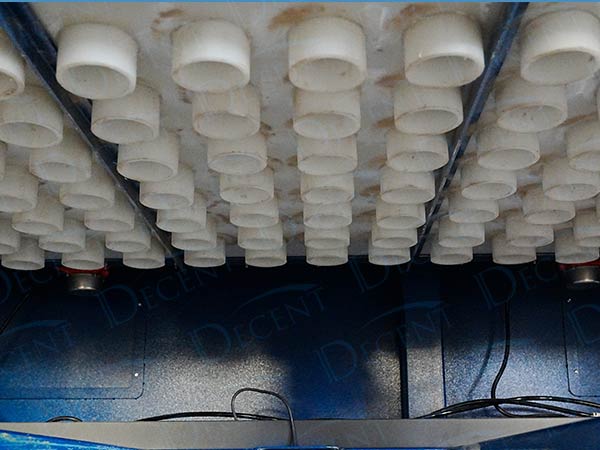

The automated design requires limited manpower support, allowing the preparation of 84 crucible samples at a time. When used in conjunction with an 84-position crucible tumbler, it greatly enhances the efficiency of sample handling.

l Increased Productivity

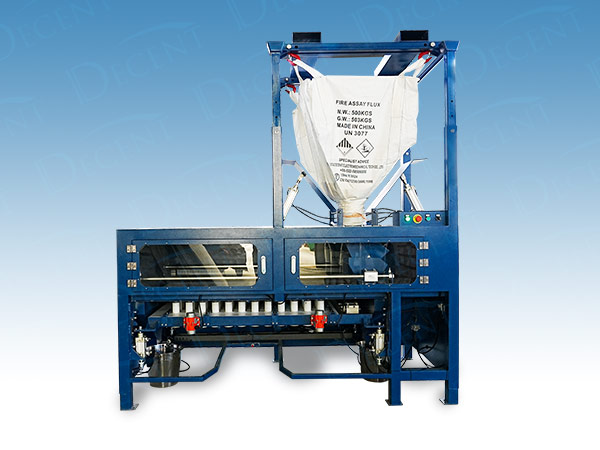

Our automatic flux dispenser system is capable of processing up to 500 kilograms of fluxing agent at one time, which can be conveniently loaded into the bag on top of the machine using a forkliftthereby improving both quality and productivity.

l Precision Guarantee

Automated operations allow for repeatability and traceability during sample preparation, ensuring improved quality of the analytical process and making it easier to trace and adjust faulty samples.

l Safety Commitment

The enclosed space prevents dust spillage, reducing the operator's exposure to potentially harmful raw materials of the flux, and further enhancing the safety of the experimental environment.

l Dose Flexibility

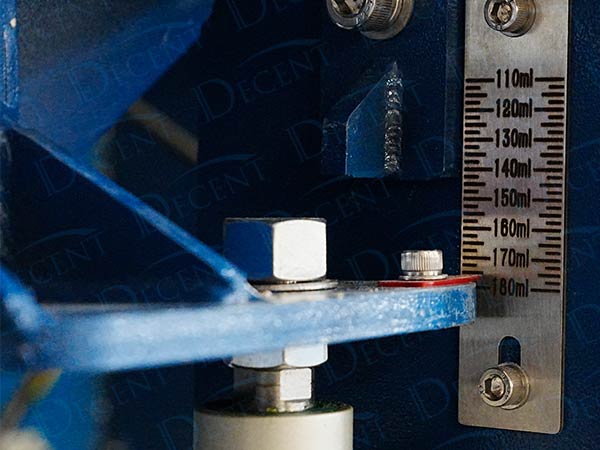

Our automatic flux dispenser system offers two flux dispensing levels, 145 ml and 175 ml, with switching of the flux dispensing level provided by the raising/lowering of four volume adjusting cylinders.

l Ease of Operation

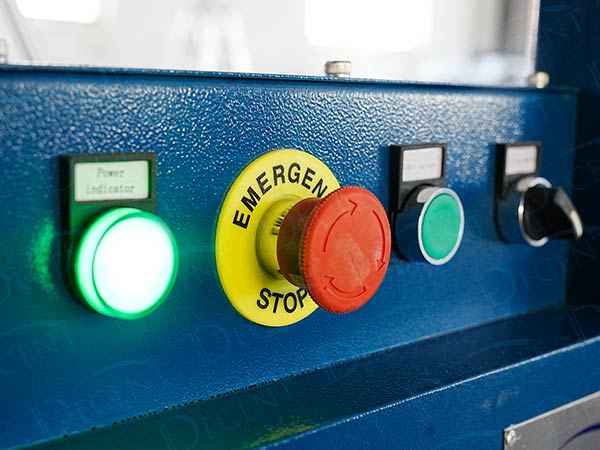

The controller is simple and easy to operate. After setting the dispensing volume, start the machine, and the moving hopper begins to work, automatically dispensing the flux.

l Customization on Demand

Based on varying requirements such as dispensing dosage and the number of crucibles, we customize the automatic flux dispenser system to suit your needs, thereby enhancing the productivity of your laboratory.


Technical Parameters

Model

Voltage

Frequency

Crucible Quantity

Match Crucible

External Pressure

Dispensing Capacity of a Single Crucible

DAFS84

220V Single Phase

50Hz

84pcs

55G

0.5MP

145/175mL
